1489982 Festo Process & Media Valves

Name: 1489982
Brand: Festo

Part#:1489982

Manufacturer:Festo

Alt. Part#:VZWP-L-M22C-N12-130-2AP4-40

Product Lifecycle:Active

Get a quick Quote!

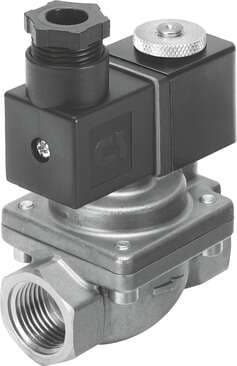

solenoid valve VZWP-L-M22C-N12-130-2AP4-40 Servo-controlled, with piston, NPT1/2" connection. Design structure: Pilot-actuated piston poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Coil preferably on top, Mounting

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1489982 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
VZWP
Nominal width
13 mm
Differential pressure
0.5 bar
Type of control
Pilot-controlled
Ambient temperature
-10 °C ... 35 °C
Switching time off
250 ms
Material of screws
High-alloy stainless steel
Electrical connection
Form A Rectangular design
Nominal pressure of fitting PN
40
Medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
Permissible voltage fluctuations
+/- 10 %
Temperature of medium
-10 °C ... 80 °C
On switching time
100 ms
Material number of screw
1.4301
CE marking (see declaration of conformity)
As per EU low voltage directive
Design
Pilot-controlled piston poppet valve
Sealing principle
Soft
Fitting connection
1/2 NPT
Coil characteristics
110 V AC: 50/60 Hz, initial power 10.5 VA, holding power 8.0 VA
Symbol
00992974

Leak rate to EN 12266-1

Seals material

NBR

Degree of protection

IP65

Actuation type

Electrical

Type of mounting

Line installation

Valve function

2/2, closed, monostable

Insulation class

Medium pressure

0.5 bar ... 40 bar

Flow rate Kv

2.5 m³/h

Housing material

Cast brass

Material number of housing

CW617N

Product weight

550 g

Mounting position

Coil preferably on top

Manual override

None

Flow direction

Non-reversible

Duty cycle

100%

Max. viscosity

22 mm²/s

Standard nominal flow rate

2650 l/min

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Corrosion resistance class (CRC)

1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
