123044 Festo Couplings

123044 on Powermatic Associates
Festo

Part#:123044

Alt. Part#:EAMC-30-35-8-8

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

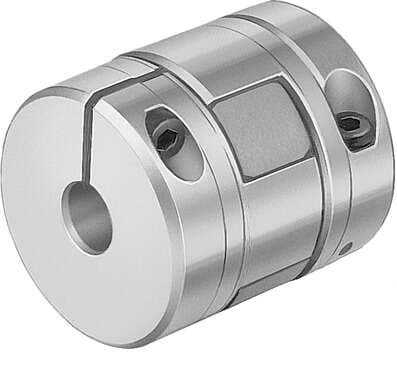

coupling EAMC-30-35-8-8 For DGE. Holder diameter 1: 8 mm, Holder diameter 2: 8 mm, Size: 30, Nominal length: 35 mm, Assembly position: Any

Product Details

  • Transferable torque
    8.2 Nm
  • Nominal length
    35 mm
  • Ambient temperature
    -25 °C ... 60 °C
  • Diameter of holder 1
    8 mm
  • Type code
    EAMC
  • Max. rotational speed
    8000 1/min
  • Diameter of holder 2
    8 mm
  • Mounting position
    Any
  • Storage temperature
    -25 °C ... 60 °C
  • Relative air humidity
    0 - 95 %
  • Note on materials
    RoHS-compliant
  • Size
    30
  • Mass moment of inertia
    6.1 kgmm²
  • Product weight
    45 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

123044 Related Documents

123044 DataSheet.pdf
