548470 Eriflex Insulators

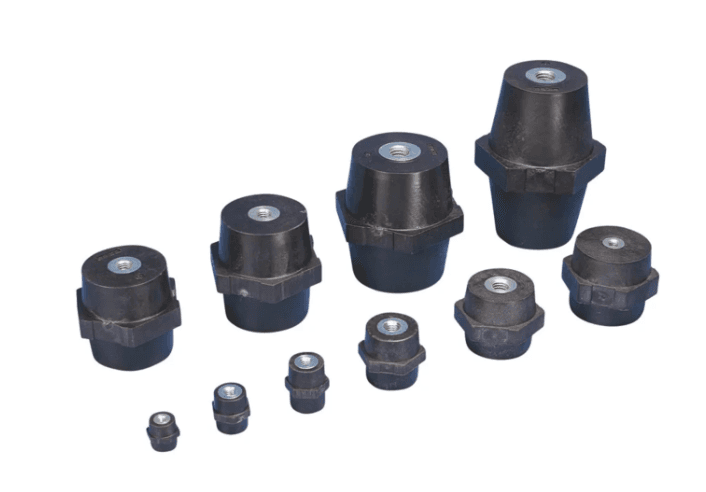

548470 Erico - Low Voltage Metric Insulator: Strong, Versatile, and Reliable

The 548470 Erico Low Voltage Metric Insulator is a high-capacity insulating solution built for demanding electrical systems. With superior strength, durability, and compliance with stringent safety standards, this insulator is ideal for industrial and commercial environments requiring robust performance.

Key Features

Halogen-Free Design: Ensures safer usage by reducing toxic emissions in high-temperature conditions.

High Resistance to Leakage Current: Protects systems, providing reliable electrical insulation.

Stable Electrical and Mechanical Performance: Delivers consistent reliability across diverse applications.

Fiberglass Reinforced Construction: Combines lightweight design with exceptional strength for long-term durability.

UL® Recognized Certification: Rated under E125470 with dielectric withstand capacity up to 1,500 VAC/DC.

RoHS Compliant: Supports environmentally responsible practices and sustainability.

Specifications

Dielectric Strength: UL 1,500

Finish: Electrogalvanized for superior corrosion resistance

Material: Steel with Glass Fiber Reinforced Polyamide for enhanced performance

Compliance: IEC® 60695-2-11 Glow Wire Test at 960 °C for fire safety

Flammability Rating: UL® 94V-0 for reduced fire risks

Working Temperature Range: -40°F to 266°F, suitable for extreme environments

Dimensions:

Height: 1.38"

Depth: 1.81"

Diameter: 1.34"

Thread Size: M6

Static Load Capacity: Supports up to 2,473 lbs.

Why Choose the Erico 548470 Metric Insulator?

This insulator is designed to handle high static loads while maintaining superior dielectric properties. Its halogen-free and RoHS-compliant design ensures safety and environmental sustainability. The fiberglass reinforcement and electrogalvanized finish provide exceptional durability and resistance to wear and corrosion, making it a trusted component for demanding applications.

Applications

Low-voltage electrical installations

Industrial m
