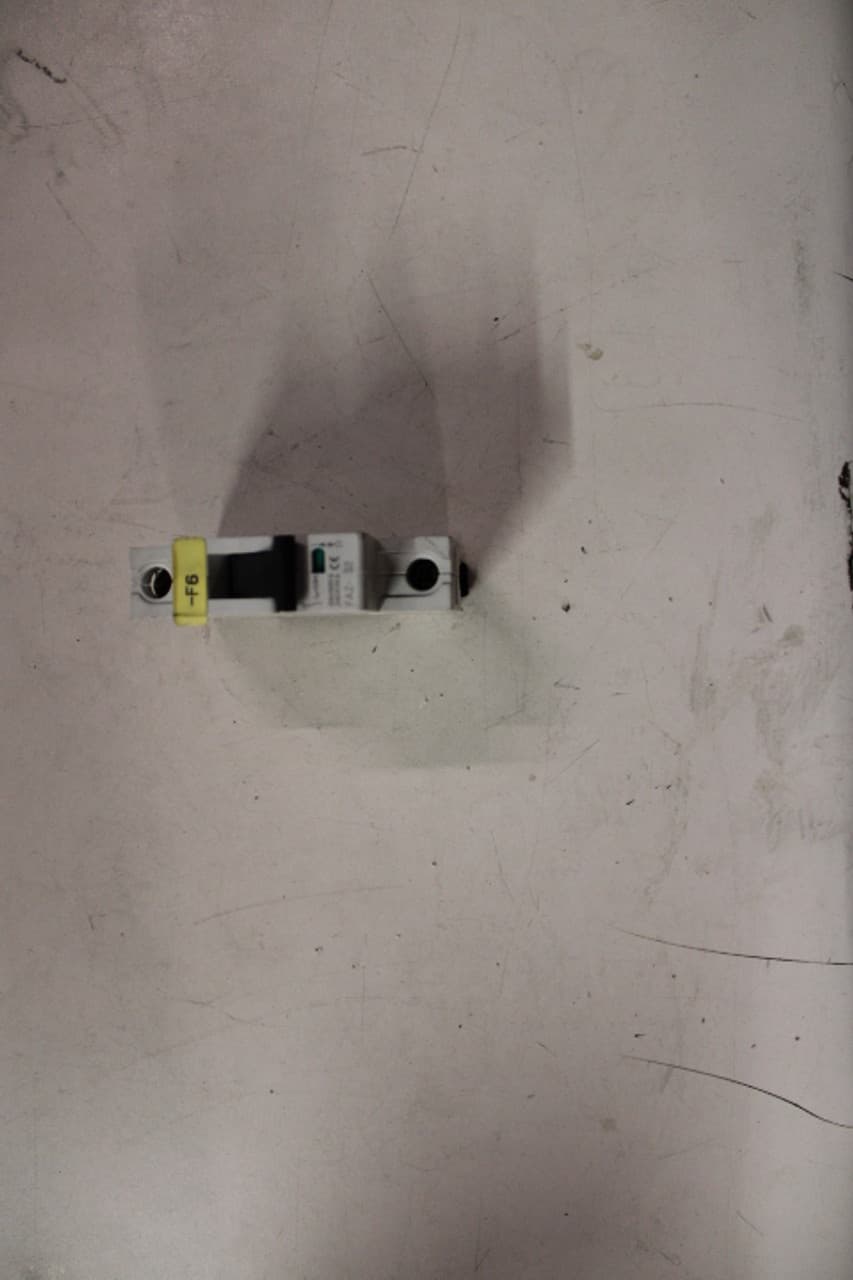

FAZ-S2/1 Eaton Supplementary Protectors

Name: FAZ-S2/1
Brand: Eaton

Part#:FAZ-S2/1

Manufacturer:Eaton

Category:Supplementary Protectors

Product Lifecycle:Active

Get a quick Quote!

277/480 VAC 50/60 Hz, 2 A, 1-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic, Supplementary Protector

About the manufacturer: Eaton is one of the manufacturers that offers Supplementary Protectors that you can order at Powermatic Associates site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.

Check out the FAZ-S2/1 Eaton price in the box on the right side or send a quick quote.

Product Details

Number of Poles
1 Pole
Current Rating
2 A
Trip Curve
S
SCCR
5 kA
UL Standard
1077
UL CCN
QVNU2
UL File No.
E177451
Terminal Type
Compression
Series:
FAZ
Type:
Current Limiting
Size:
0.69 Inch Length
UPC:
01508278607
Mounting:
DIN Rail
Volts:
277 VAC at 50/60 Hertz
Poles:
1
Trip Setting:
13 to 17 x Rated Current
Terminal Type:
Screw
Shipping Height:
4.00 In.
Approval:
UL 1077
Interrupting Rating:
5 Kiloamp at 277 Volt AC

Amps:

2 A

Shipping Length:

1.00 In.

Shipping Weight:

0.25 lbs.

Shipping Width:

3.00 In.

Number of poles

Single-pole

Trip Type

13-17X /n

Amperage Rating

2 A

Catalog Notes

Positioned for highly inductive loads especially in control circuits with coils and light filaments.

Certifications

UL 1077 CSA Std. C22.2 No.235 IEC 60947-2

Terminals

Standard

Product Name

Eaton FAZ supplementary protector

Warranty

1 year

Product Width

.75 in

Product Weight

.5 lb

Product Height

1 in

EAN

4015082786076

Product Length/Depth

1 in

Catalog Number

FAZ-S2/1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
