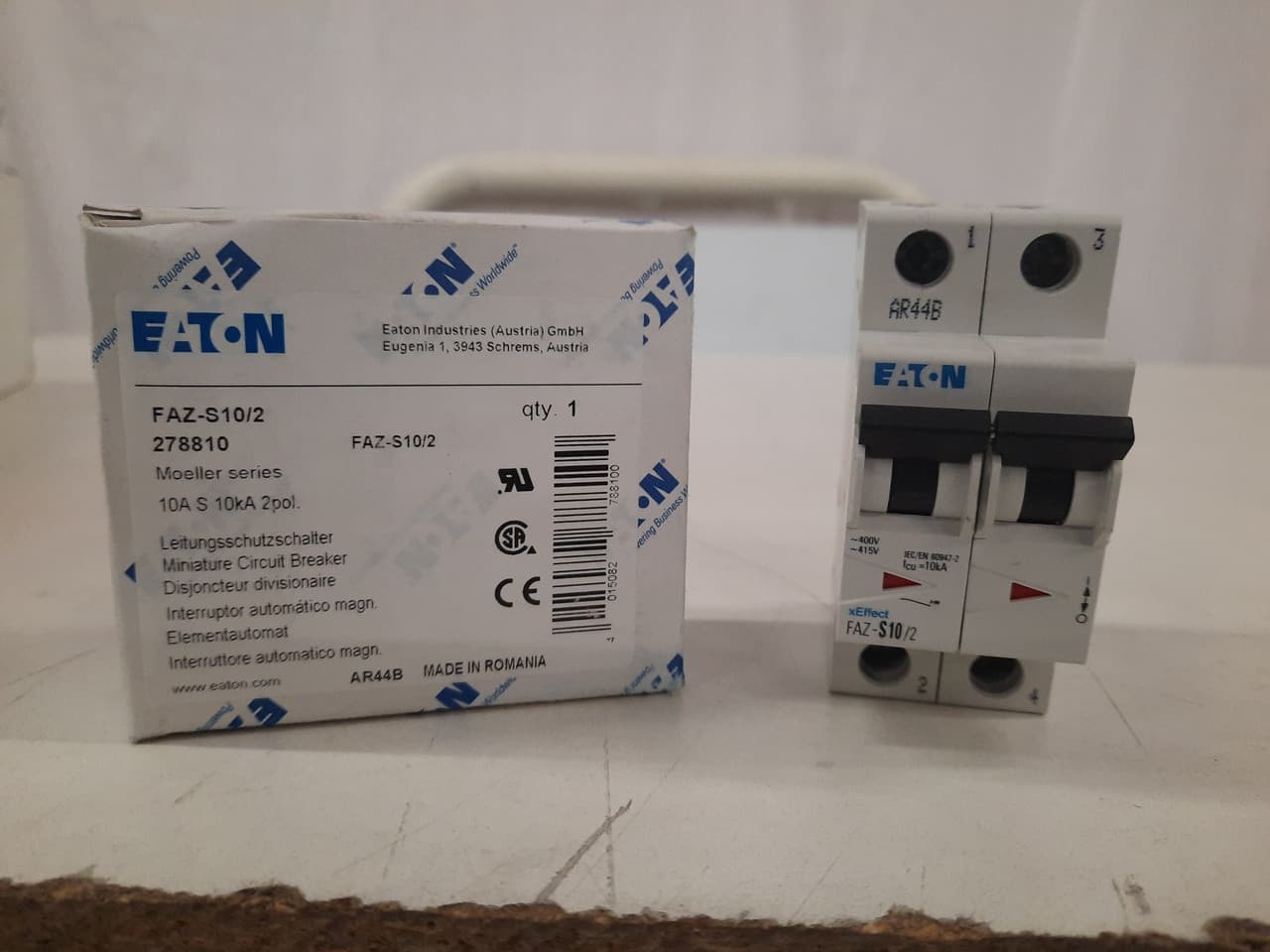

FAZ-S10/2 Eaton Supplementary Protectors

Eaton FAZ-S10/2 277/480 VAC 50/60 Hz, 10 A, 2-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic
Eaton

Part#:FAZ-S10/2

Manufacturer:Eaton

Product Lifecycle:Active

Get a quick Quote!

277/480 VAC 50/60 Hz, 10 A, 2-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic

About the manufacturer: Eaton is one of the manufacturers that offers Supplementary Protectors that you can order at Powermatic Associates site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.

Check out the FAZ-S10/2 Eaton price in the box on the right side or send a quick quote.

Product Details

  • Number of Poles
    2 Pole
  • Current Rating
    10 A
  • Trip Curve
    S
  • SCCR
    5 kA
  • UL Standard
    1077
  • UL CCN
    QVNU2
  • UL File No.
    E177451
  • Terminal Type
    Compression
  • Trip Setting:
    13 to 17 x Rated Current
  • Wire Size:
    18 to 4/18 to 8 AWG
  • Terminal Type:
    Line/Load
  • Volts:
    277/480 VAC
  • Amps:
    32 A
  • Interrupting Rating:
    10 kA
  • Mounting:
    DIN Rail
  • Poles:
    2
  • Size:
    1.4 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
  • UPC:
    015082788104
  • Shipping Weight:
    0.50
  • Type:
    Current Limiting
  • Approval:
    UL 1077
  • Shipping Height:
    2.00 In.
  • Shipping Width:
    3.00 In.
  • Series:
    FAZ
  • Shipping Length:
    4.00 In.
  • Trip Type
    13-17X /n
  • Number of poles
    Two-pole
  • Amperage Rating
    10 A
  • Terminals
    Standard
  • Catalog Notes
    Positioned for highly inductive loads especially in control circuits with coils and light filaments.
  • Product Length/Depth
    1.5 in
  • Warranty
    1 year
  • Certifications
    IEC 60947-2 CSA Std. C22.2 No.235 UL 1077
  • Product Name
    Eaton FAZ supplementary protector
  • Product Weight
    .5 lb
  • Product Width
    1.5 in
  • Product Height
    1.5 in
  • Catalog Number
    FAZ-S10/2
  • EAN
    4015082788100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents FAZ-S10/2 Specs

FAZ-S10/2 Data Sheet:.pdf
FAZ-S10/2 Catalog:.pdf

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
