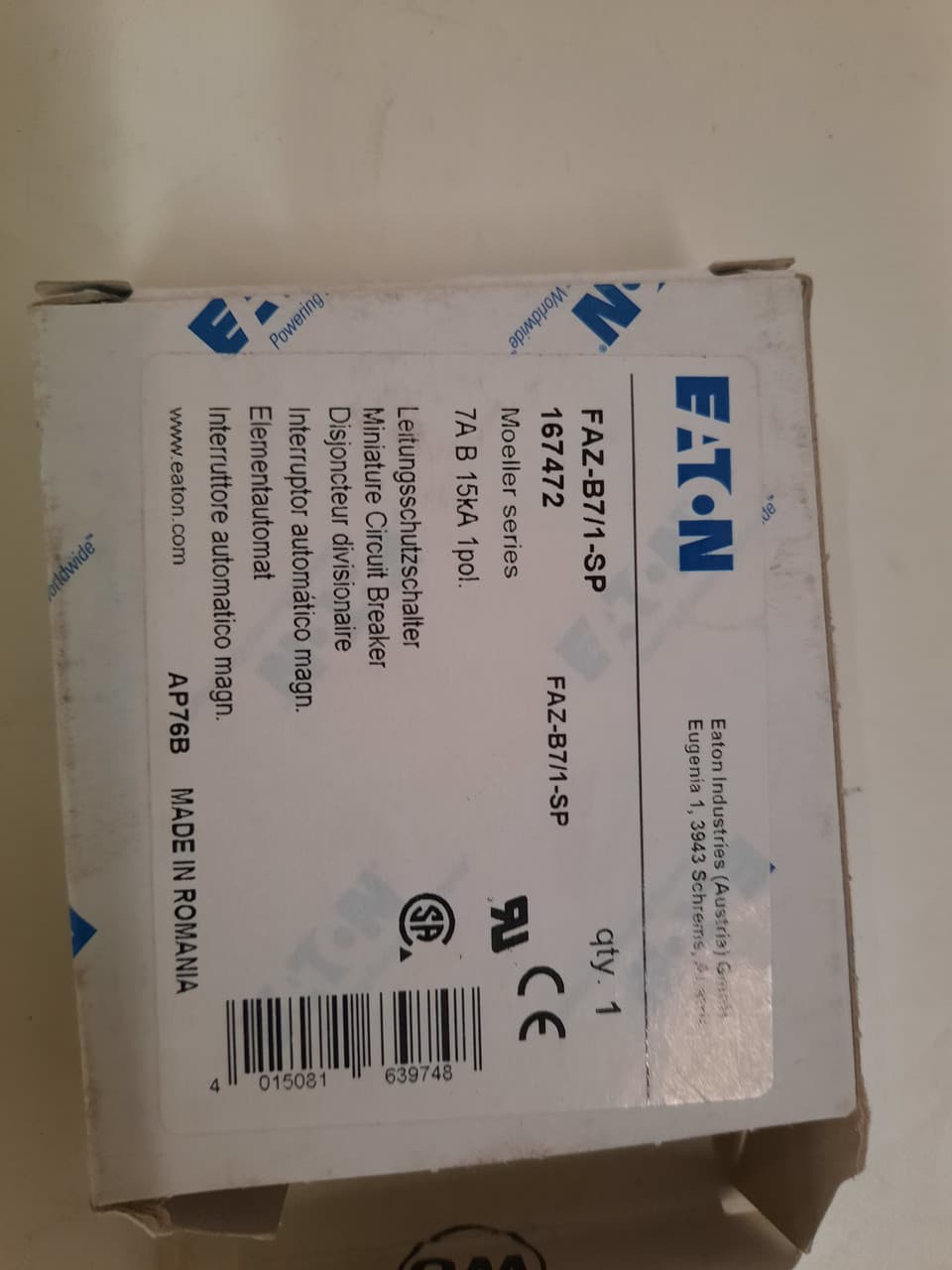

FAZ-B7/1-SP Eaton Miniature Circuit Breakers (MCBs)

Eaton FAZ-B7/1-SP Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker-supplementary protector,Single package,Low levels of inrush current are expected,7 A,15 kAIC,Single-pole,240/415 V,3-5X/n,Q38,50-60 Hz,Standard terminals,B Curve
Eaton

Part#:FAZ-B7/1-SP

Manufacturer:Eaton

Product Lifecycle:Active

Get a quick Quote!

Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker-supplementary protector,Single package,Low levels of inrush current are expected,7 A,15 kAIC,Single-pole,240/415 V,3-5X/n,Q38,50-60 Hz,Standard terminals,B Curve

About the manufacturer: Eaton is one of the manufacturers that offers Miniature Circuit Breakers (MCBs) that you can order at Powermatic Associates site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.

Check out the FAZ-B7/1-SP Eaton price in the box on the right side or send a quick quote.

Product Details

  • Size:
    0.7 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
  • Trip Setting:
    3 to 5 x Rated Current
  • Amps:
    32 A
  • Mounting:
    DIN Rail
  • Wire Size:
    18 to 4/18 to 8 AWG
  • Volts:
    277/480 VAC
  • Interrupting Rating:
    10 kA
  • Terminal Type:
    Line/Load
  • Poles:
    1
  • Shipping Width:
    3.50 In.
  • Shipping Length:
    0.69 In.
  • Approval:
    UL 1077
  • Type:
    Current Limiting
  • UPC:
    015081639742
  • Shipping Weight:
    0.25
  • Series:
    FAZ
  • Shipping Height:
    1.00 In.
  • Number of poles
    Single-pole
  • Trip Type
    3-5X /n
  • Amperage Rating
    7 A
  • Application
    Suitable for applications where low levels of inrush current are expected
  • Voltage rating
    240/415V
  • Terminals
    Standard
  • Quantity
    38
  • Circuit protection
    B curve
  • Type
    UL 1077 Industrial miniature circuit breaker - supplementary protector
  • Frequency rating
    50-60 Hz
  • Interrupt rating
    15 kAIC
  • Catalog Notes
    For applications that require protection due to potential wiring damage at low fault conditions. Single packaging of single-pole curves for select amperages only.
  • Product Weight
    .14 lb
  • Product Width
    3.5 in
  • Special features
    Single package
  • Product Height
    1 in
  • Warranty
    1 year
  • Product Name
    Eaton FAZ supplementary protector
  • EAN
    4015081639748
  • Product Length/Depth
    .69 in
  • Catalog Number
    FAZ-B7/1-SP
  • Certifications
    IEC 60947-2 CSA Std. C22.2 No.235 UL 1077

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents FAZ-B7/1-SP Specs

FAZ-B7/1-SP Catalog:.pdf
