WLS70ZXW900DA Banner Signal Beacons

Name: WLS70ZXW900DA
Brand: Banner

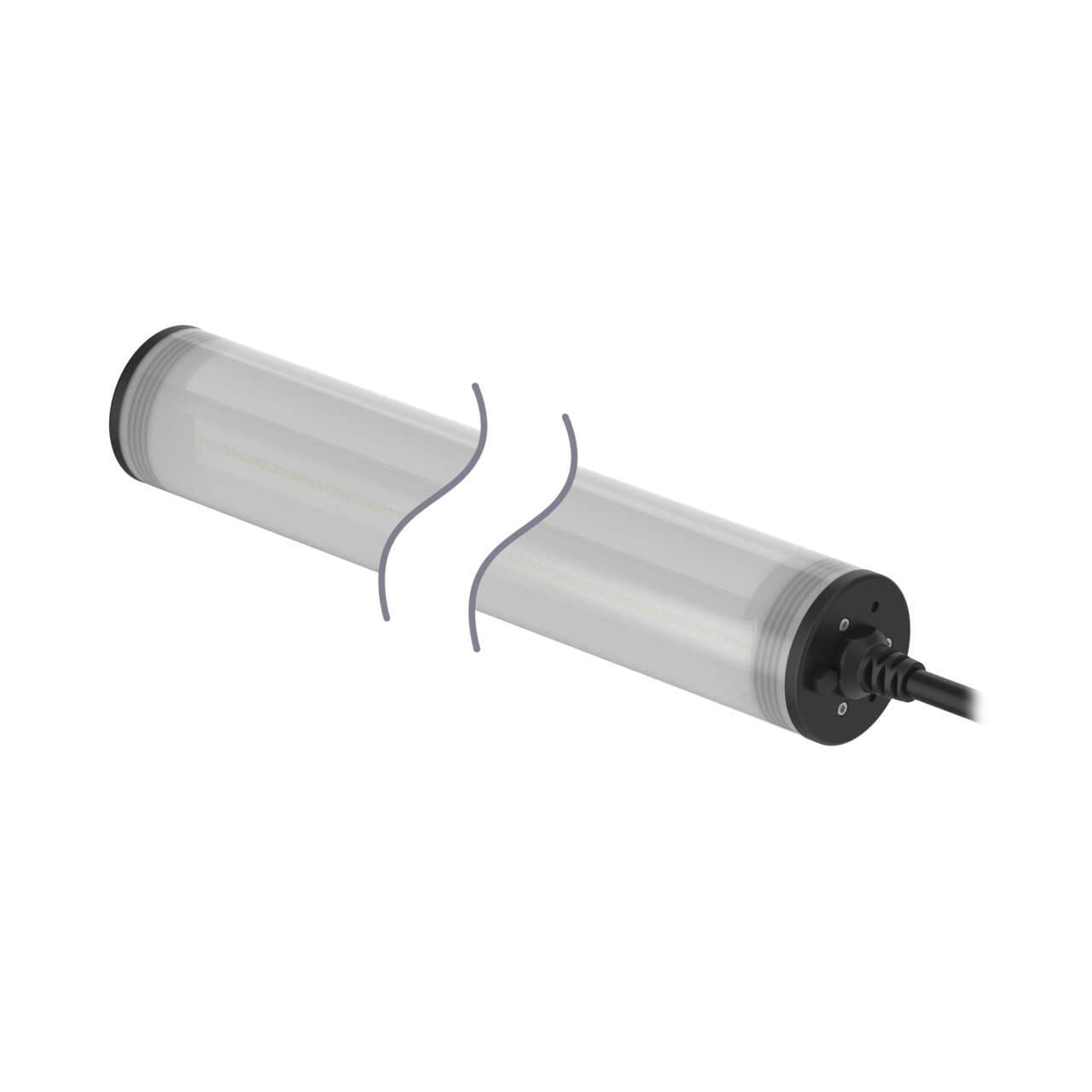

Banner WLS70ZXW900DA WLS70 Sealed Work Light; Length: 900 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable

Part#:WLS70ZXW900DA

Manufacturer:Banner

Alt. Part#:809466

Product Lifecycle:Active

Get a quick Quote!

WLS70 Sealed Work Light; Length: 900 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70ZXW900DA Banner price in the box on the right side or send a quick quote.

Product Details

Weight
3923.5708 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
IO Link
No
Feature: Quick Disconnect
No
Feature: Chemical Resistant
No
Feature: Audible
No
Wireless
No
Feature: Hazardous Area
No
Primary Window Material
Polycarbonate Diffused
Secondary Material
Metal
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Environmental Rating
IP65
Physical Dimensions (LxWxH or DxH mm)
68.5 x 965.3
Illuminated Length (LxWxH mm)
898
Supply Voltage
100-277 V ac
Number of Input Pins/Conductors
5

Max Current Color (mA)

320

Dimming Option

0-10 V dc

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Animation Option 1

Solid On

Lumens Color 1

4050

Connection

Cable

Color Option 1

White

Color Technology

Standard LED

Product Size (mm)

Cable Length (m)

Power Source

Primary Housing Material

Polycarbonate

Power

Housing Style

Linear Strip

Illumination

Yes

Number of Colors / Segments

Mounting Thread

No Thread

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70ZXW900DA Description

Banner Engineering WLS70ZXW900DA is a task light designed for industrial applications, featuring LED technology with a single-color Daylight White (W) illumination. It is equipped with a diffused window and offers 0-10Vdc analog dimming control input for adjustable lighting. This model operates on a supply voltage range of 100Vac-277Vac, accommodating multiple standard voltages including 120Vac, 220Vac, 230Vac, and 240Vac. The light measures 900mm in length and 70mm in depth, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for easy installation. The cylindrical linear strip shape of this light is designed to fit a variety of spaces, and it is rated IP65 for protection against dust and water ingress. It is suitable for operation in ambient air temperatures ranging from -40°C to +50°C.
