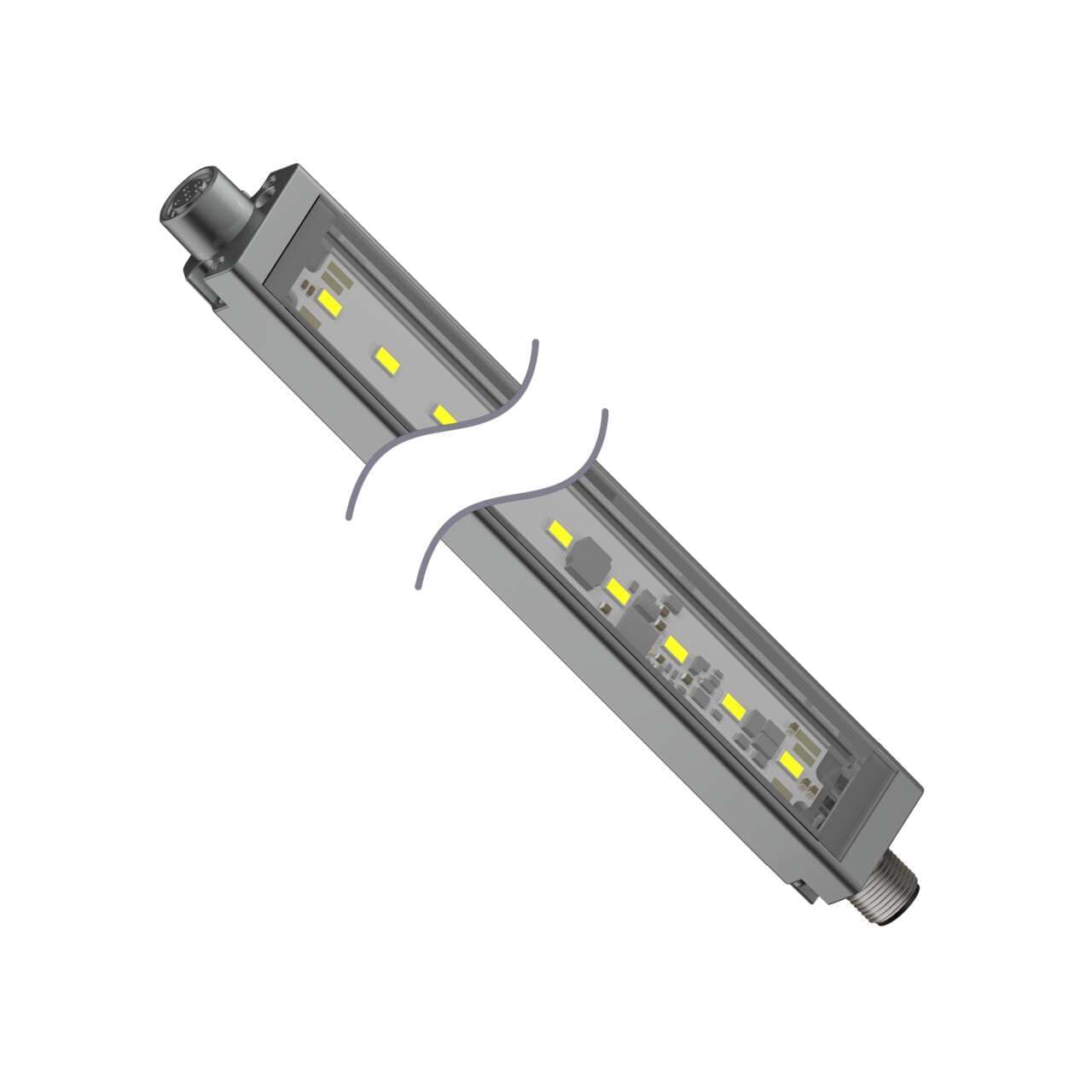

WLS28-2CW710DSQ Banner Light Bars

Name: WLS28-2CW710DSQ
Brand: Banner
Price: 439 USD
Availability: BackOrder

Banner WLS28-2CW710DSQ WLS28-2 Work Light Strip; Diffuse Window; Length: 710 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; Cascadable; 4-pin M12 Integral QD

Part#:WLS28-2CW710DSQ

Manufacturer:Banner

Alt. Part#:87910

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Diffuse Window; Length: 710 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2CW710DSQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
635.0288 g
Country Of Origin
MX
Wireless
No
Pro-Editor Compatible (Discrete)
No
IO Link
No
Modbus RTU
No
Feature: Washdown Rated
Yes
Feature: Cascade
Yes
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Storage Temp (°C)
-40 to 70
Primary Window Material
Polycarbonate Diffused
Min Op. Temperature (°C)
-40
Illuminated Length (LxWxH mm)
710.0
Physical Dimensions (LxWxH or DxH mm)
757.0 x 28.0 x 20.9
Environmental Rating
IP65; IP67; IP69
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4
Max Op. Temperature (°C)
70

Color 1 - Wavelength/Color Temp/Coordinates

6500K (Cool)

Connection

Integral QD

Product Size (mm)

Dimming Option

High-Low-Off

Animation Option 1

Solid On

Quick Disconnect Type

M12 (Euro)

Lumens Color 1

1500

Color Technology

Standard LED

Color Option 1

White

Power Source

Cable Length (m)

Primary Housing Material

Aluminum

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Housing Style

Linear Strip

Mounting Thread

No Thread

Illumination

Yes

Number of Colors / Segments

Power

Contents

Cool white (CW) light element

Luminous flux

1500 lm (lumens)

Mounting mode

Surface / Wall

Ambient air temperature for operation

-40...+70 °C

Compliant with standard(s)

CE cULus Listed cURus

Equivalent to

WLS282CW710DSQ

Order code / Manufacturer SKU

87910

Connection type

Pre-equipped with 4-pin M12 Euro-style QD connector

Product series / family name

WLS28-2 series

Functions

Cascadable sealed LED industrial strip light / bar

Shape

Linear light strip

Material

Polycarbonate window Aluminium housing

Main function

Task light

Design

diffused plastic window 1-color Cool White (CW) LED illumination

Dimensions

W28mm x L710mm

Benefits

Banner's LED Strip Lights have sturdy Aluminium housings; shatterproof windows; and impressive environmental ratings; making them an ideal general-purpose LED light for machine; enclosure; or other industrial lighting applications. 40% brighter and 40% mo

Primary brand

Banner Engineering

Supply voltage (DC)

12-30Vdc (12Vdc-24Vdc nom.)

Degree of protection

IP65 IP67 IP69K

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2CW710DSQ Description

Banner Engineering WLS28-2CW710DSQ is a task light designed as a cascadable sealed LED industrial strip light/bar. It features a diffused plastic window for 1-color Cool White (W) LED illumination. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This product measures 710mm in length and 28mm in width. It is constructed with a polycarbonate (PC) window and an aluminium housing. The connection is facilitated by a pre-equipped 4-pin M12 Euro-style QD connector. Its linear light strip shape is complemented by a degree of protection rated at IP65, IP67, and IP69K, making it suitable for surface or wall mounting. The ambient air temperature for operation spans from -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control and delivers a luminous flux of 1500 lm (lumens).

$439.00

Request a quote, and we will send availability within minutes.

Select Qty:

$439.00

$439.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
