WLS28-2CW1130DSQ Banner Light Bars

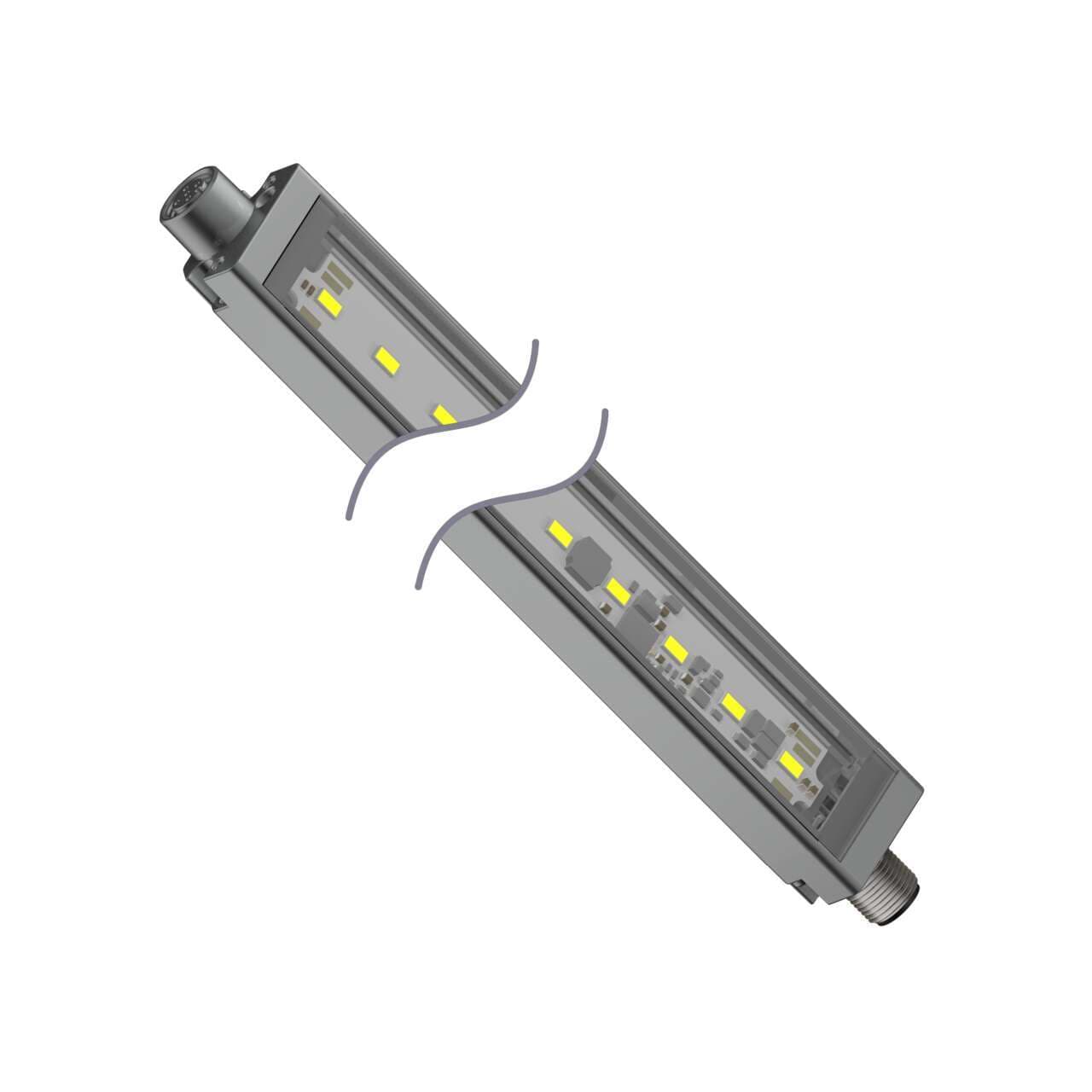

Banner WLS28-2CW1130DSQ WLS28-2 Work Light Strip; Diffuse Window; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; Cascadable; 4-pin M12 Integral QD
Banner

Part#:WLS28-2CW1130DSQ

Manufacturer:Banner

Alt. Part#:87913

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Diffuse Window; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2CW1130DSQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    997.9024 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Cascade
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Storage Temp (°C)
    -40 to 70
  • Feature: Washdown Rated
    Yes
  • Max Op. Temperature (°C)
    70
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • Physical Dimensions (LxWxH or DxH mm)
    1180.0 x 28.0 x 20.9
  • Illuminated Length (LxWxH mm)
    1130.0
  • Environmental Rating
    IP65; IP67; IP69
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    12-30 V dc
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Lumens Color 1
    2400
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Connection
    Integral QD
  • Product Size (mm)
    28
  • Housing Style
    Linear Strip
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Aluminum
  • Illumination
    Yes
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    1
  • Power
    DC
  • Power Source
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2CW1130DSQ Description

Banner Engineering WLS28-2CW1130DSQ is a task light designed as a cascadable sealed LED industrial strip light/bar. It features a diffused plastic window for 1-color Cool White (W) LED illumination. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This product measures L1130mm x W28mm and is constructed with a polycarbonate (PC) window and an aluminium housing. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The linear light strip is designed for surface or wall mounting and offers a degree of protection rated at IP65, IP67, and IP69K. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control and provides a luminous flux of 2400 lm (lumens).

Related documents WLS28-2CW1130DSQ Specs

WLS28-2CW1130DSQ 175008.pdf
