WLS28-2CW1130DSPWMQ Banner Light Bars

WLS28-2CW1130DSPWMQ on Powermatic Associates
Banner

Part#:WLS28-2CW1130DSPWMQ

Manufacturer:Banner

Alt. Part#:94565

Product Lifecycle:Active

Get a quick Quote!

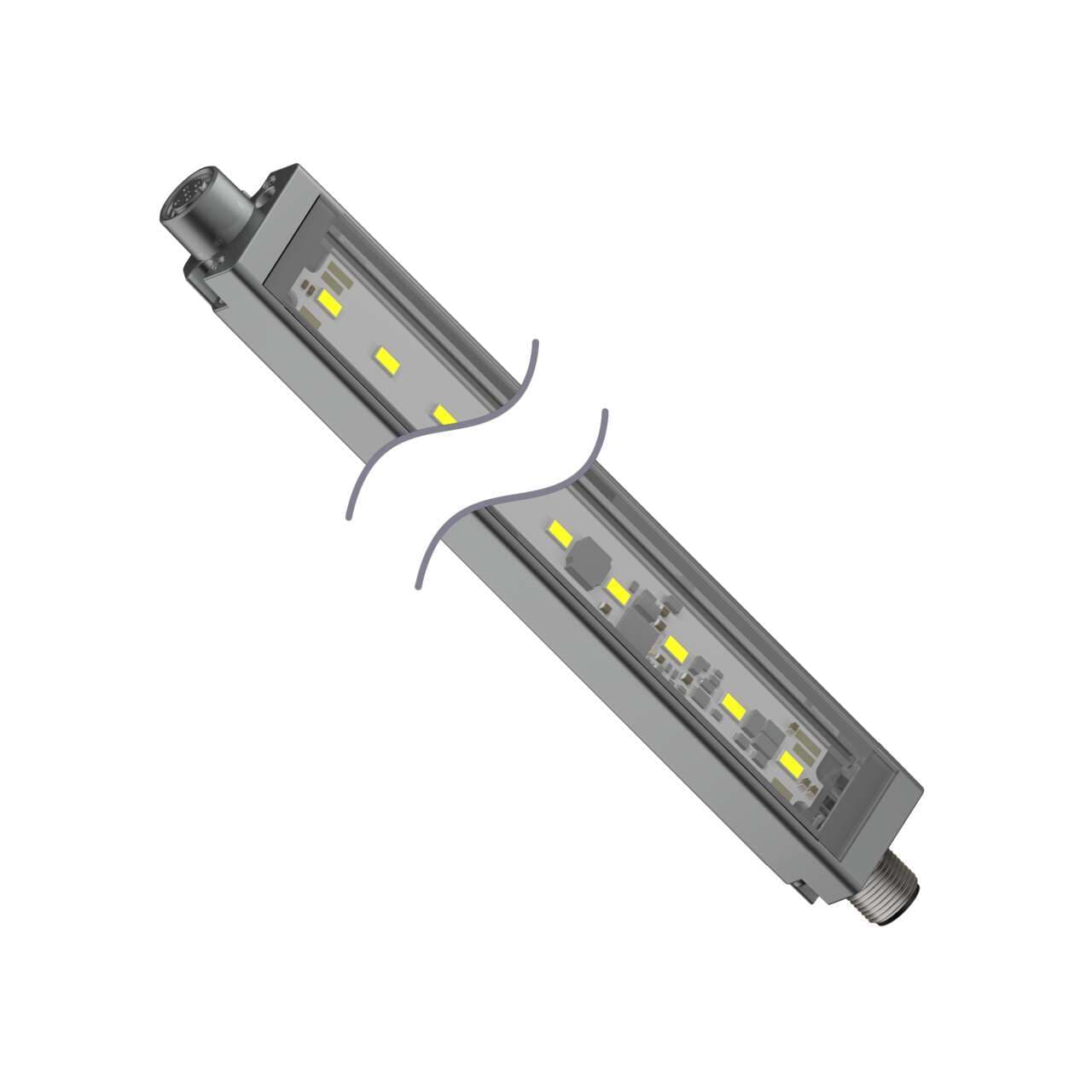

WLS28-2 Work Light Strip; Length: 1130 mm; PWM Dimming; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2CW1130DSPWMQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    907.184 g
  • Country Of Origin
    MX
  • Primary Window Material
    Polycarbonate Diffused
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Cascade
    Yes
  • Wireless
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Min Op. Temperature (°C)
    -40
  • Feature: Washdown Rated
    Yes
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    70
  • Physical Dimensions (LxWxH or DxH mm)
    1180.0 x 28.0 x 20.9
  • Environmental Rating
    IP65; IP67; IP69
  • Supply Voltage
    12-30 V dc
  • Illuminated Length (LxWxH mm)
    1130.0
  • Dimming Option
    PWM
  • Number of Input Pins/Conductors
    4
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Lumens Color 1
    2400
  • Quick Disconnect Type
    M12 (Euro)
  • Animation Option 1
    Solid On
  • Connection
    Integral QD
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Color Option 1
    White
  • Product Size (mm)
    28
  • Primary Housing Material
    Aluminum
  • Illumination
    Yes
  • Mounting Thread
    No Thread
  • Power
    DC
  • Number of Colors / Segments
    1
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2CW1130DSPWMQ Description

Banner Engineering WLS28-2CW1130DSPWMQ is a task light designed for industrial applications, featuring a cascading, sealed LED strip light that provides 1-color Cool White (W) LED illumination through a diffused plastic window. It is PWM dimmable, allowing for adjustable brightness levels. This product operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this linear light strip are L1130mm x W28mm, constructed with a polycarbonate (PC) window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The WLS28-2CW1130DSPWMQ offers a high degree of protection with ratings of IP65, IP67, and IP69K, making it suitable for a variety of challenging environments. It can be mounted on surfaces or walls and is designed to operate within an ambient air temperature range of -40°C to +70°C. This model includes 1 x digital input (12-30Vdc) for color control and delivers a luminous flux of 2400 lm (lumens).

Related documents WLS28-2CW1130DSPWMQ Specs

WLS28-2CW1130DSPWMQ 179493.pdf
