WLS15CWB0500DSQP Banner Pick-to-Light Sensors

WLS15CWB0500DSQP on Powermatic Associates
Banner

Part#:WLS15CWB0500DSQP

Manufacturer:Banner

Alt. Part#:811018

Product Lifecycle:Active

Get a quick Quote!

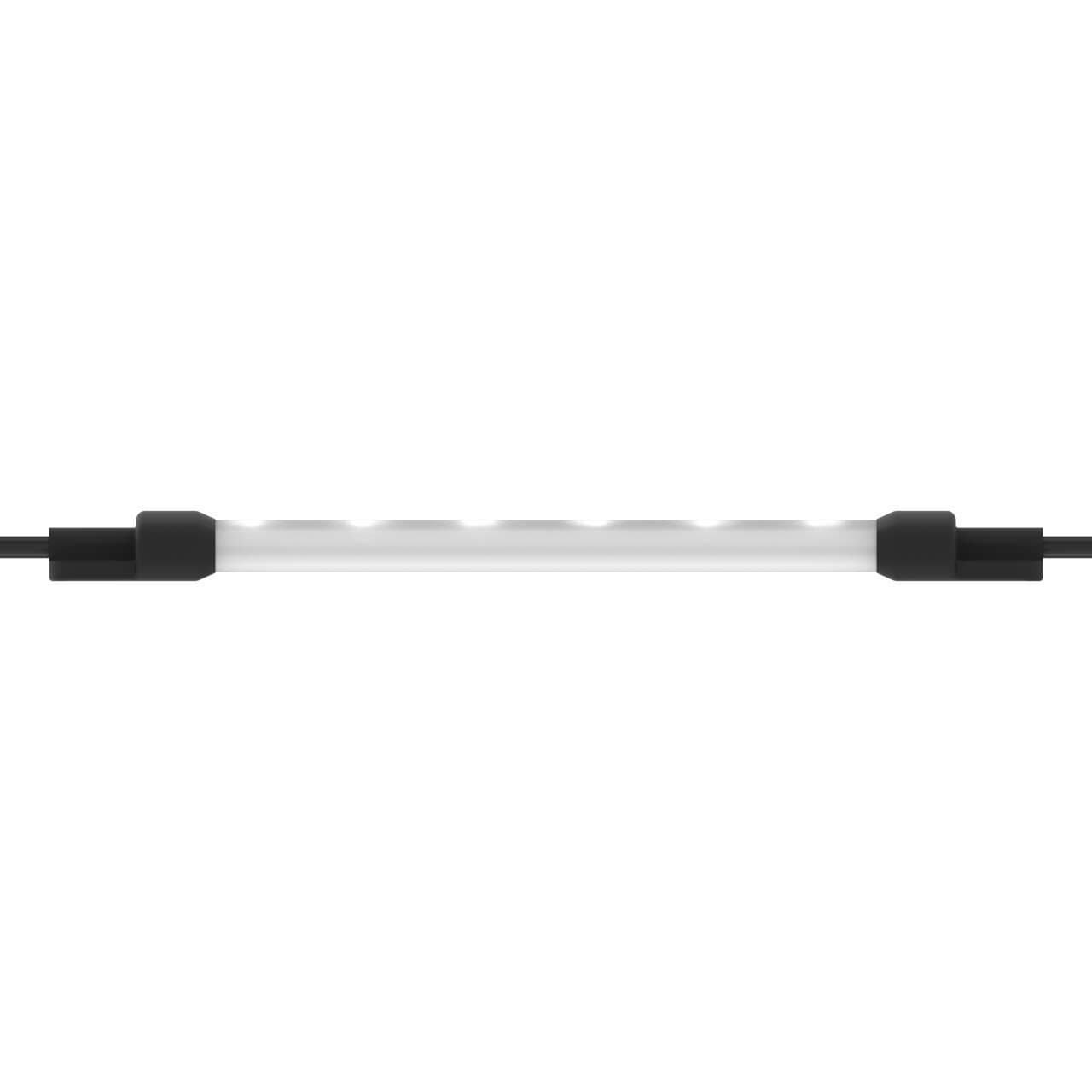

WLS15 Dual Color Light Strip; Length: 500 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Colors: White Blue; Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS15CWB0500DSQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Multi-Color Device
    Single Color On
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Storage Temp (°C)
    -40 to 70
  • Primary Window Material
    Polycarbonate Diffused
  • Secondary Material
    Polyamide
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    60
  • Environmental Rating
    IP66; IP67
  • Physical Dimensions (LxWxH or DxH mm)
    500.0 x 30.6 x 15.5
  • Illuminated Length (LxWxH mm)
    426.4
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    12/24 V dc
  • Max Current Color (mA)
    720
  • Color 2 - Wavelength/Color Temp/Coordinates
    470 nm
  • Lumens Color 2
    75.0
  • Color Option 2
    Blue
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Lumens Color 1
    525
  • Number of Colors / Segments
    2
  • Color Technology
    Standard LED
  • Connection
    Pigtail QD
  • Quick Disconnect Type
    M12 (Euro)
  • Color Option 1
    White
  • Product Size (mm)
    15
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power
    DC
  • Housing Style
    Linear Strip
  • Power Source
    DC
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Cable Length (m)
    0.15
  • Illumination
    Yes
  • Mounting Thread
    No Thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS15CWB0500DSQP Description

WLS15 Dual Color Light Strip; Length: 500 mm, Voltage: 12 or 24 V dc; Environmental Rating: IP66,67, Colors: White Blue; Cascadable, Euro 4-pin 150 mm (6 in) PVC Pigtail

Related documents WLS15CWB0500DSQP Specs

WLS15CWB0500DSQP 197492.pdf

Manufacturer warranty

$180.00

Request a quote, and we will send availability within minutes.

Select Qty:

$180.00

$180.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
