WLB32ZC850EMQMB Banner Light Bars

WLB32ZC850EMQMB on Powermatic Associates
Banner

Part#:WLB32ZC850EMQMB

Manufacturer:Banner

Alt. Part#:800353

Product Lifecycle:Active

Get a quick Quote!

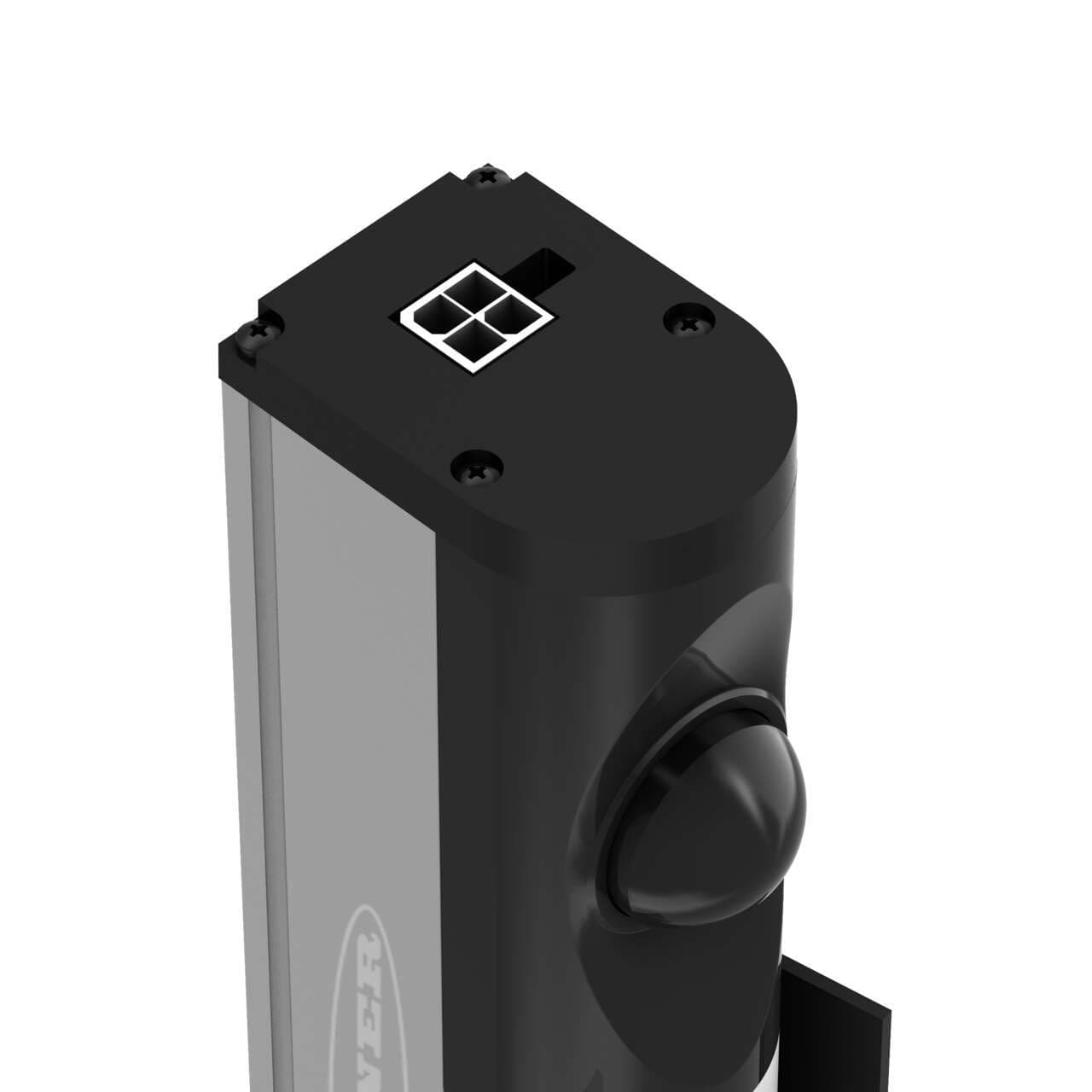

WLB32 Work Light Bar; Motion Sensor; Length: 850 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - Includes Type B Power Cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC850EMQMB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    839.1452 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Max Op. Temperature (°C)
    45
  • Illumination Switch Function
    Motion Activated
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -25
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Feature: Hazardous Area
    No
  • Eye Shield
    Yes
  • Environmental Rating
    IP50
  • Physical Dimensions (LxWxH or DxH mm)
    932.0 x 38.3 x 50.1
  • Illuminated Length (LxWxH mm)
    850.0
  • Max Current Color (mA)
    375
  • Number of Input Pins/Conductors
    3
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Lumens Color 1
    2250
  • Supply Voltage
    90-264 V ac
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Connection
    Integral QD
  • Color Option 1
    White
  • Product Size (mm)
    32
  • Cable Length (m)
    0.15
  • Power
    AC
  • Primary Housing Material
    Aluminum
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Housing Style
    Linear Strip
  • Power Source
    AC
  • Illumination
    Yes
  • Mounting Thread
    No Thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC850EMQMB Description

Banner Engineering WLB32ZC850EMQMB is a cascadable industrial LED workstation light bar designed with motion sensing and equipped with a type B power cord and eye shield. It features 1-color Daylight White (DW) LED illumination and operates on a supply voltage of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L850mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug suitable for North & Central America, Japan, and Taiwan. This linear lighting solution has an IP50 degree of protection, can operate in ambient air temperatures ranging from -25°C to +45°C, and includes 1 x digital input (100-240Vac) for color control. The current consumption is 375mA, and it provides a luminous flux of 2250 lm (lumens).

Related documents WLB32ZC850EMQMB Specs

WLB32ZC850EMQMB 176314.pdf

Manufacturer warranty

$294.00

Request a quote, and we will send availability within minutes.

Select Qty:

$294.00

$294.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
