Powermatic Associates Logo

WLB32ZC1130PBQM Banner Light Bars

WLB32ZC1130PBQM on Powermatic Associates
Banner

Part#:WLB32ZC1130PBQM

Manufacturer:Banner

Alt. Part#:87492

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - No Power cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC1130PBQM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    961.61504 g
  • Country Of Origin
    MX
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Illumination Switch Function
    I=Low; O=OFF; II=High
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Chemical Resistant
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Cascade
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    1144.0 x 32.0 x 46.0
  • Storage Temp (°C)
    -40 to 70
  • Illuminated Length (LxWxH mm)
    1130.0
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    45
  • Environmental Rating
    IP50
  • Supply Voltage
    90-264 V ac
  • Number of Input Pins/Conductors
    3
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Lumens Color 1
    3000
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Power Source
    AC
  • Product Size (mm)
    32
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Power
    AC
  • Illumination
    Yes
  • Primary Housing Material
    Aluminum
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC1130PBQM Description

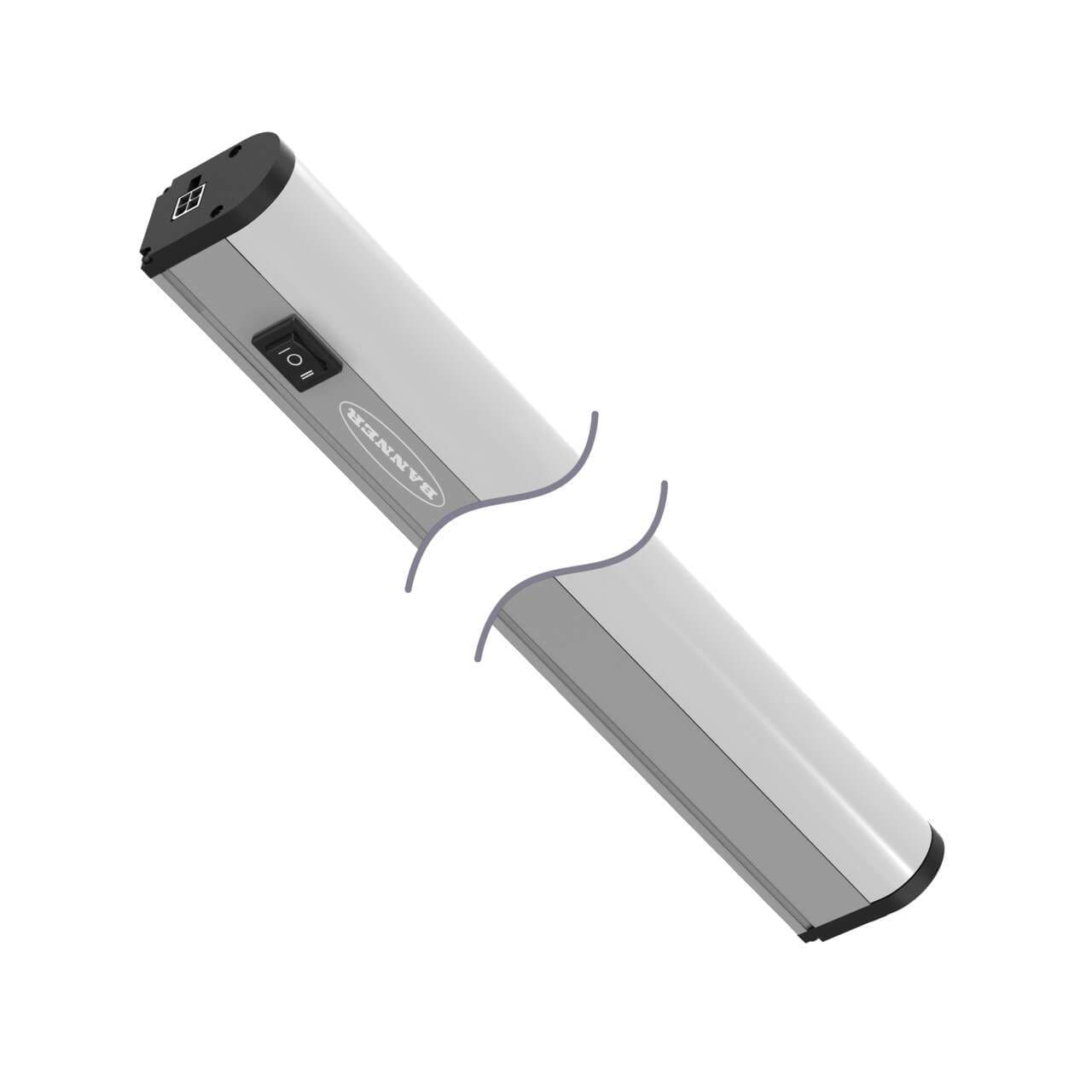

Banner Engineering WLB32ZC1130PBQM is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch and provides 1-color Daylight White (DW) LED illumination. This unit operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. The dimensions of this task light are L1130mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a plug-in connector for easy installation and has a linear lighting shape. The WLB32ZC1130PBQM offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control and has a current consumption of 500mA. The luminous flux produced by this task light is 3000 lm (lumens).

Related documents WLB32ZC1130PBQM Specs

WLB32ZC1130PBQM 176314.pdf

Manufacturer warranty

$303.00

Request a quote, and we will send availability within minutes.

Select Qty:

$303.00

$303.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
