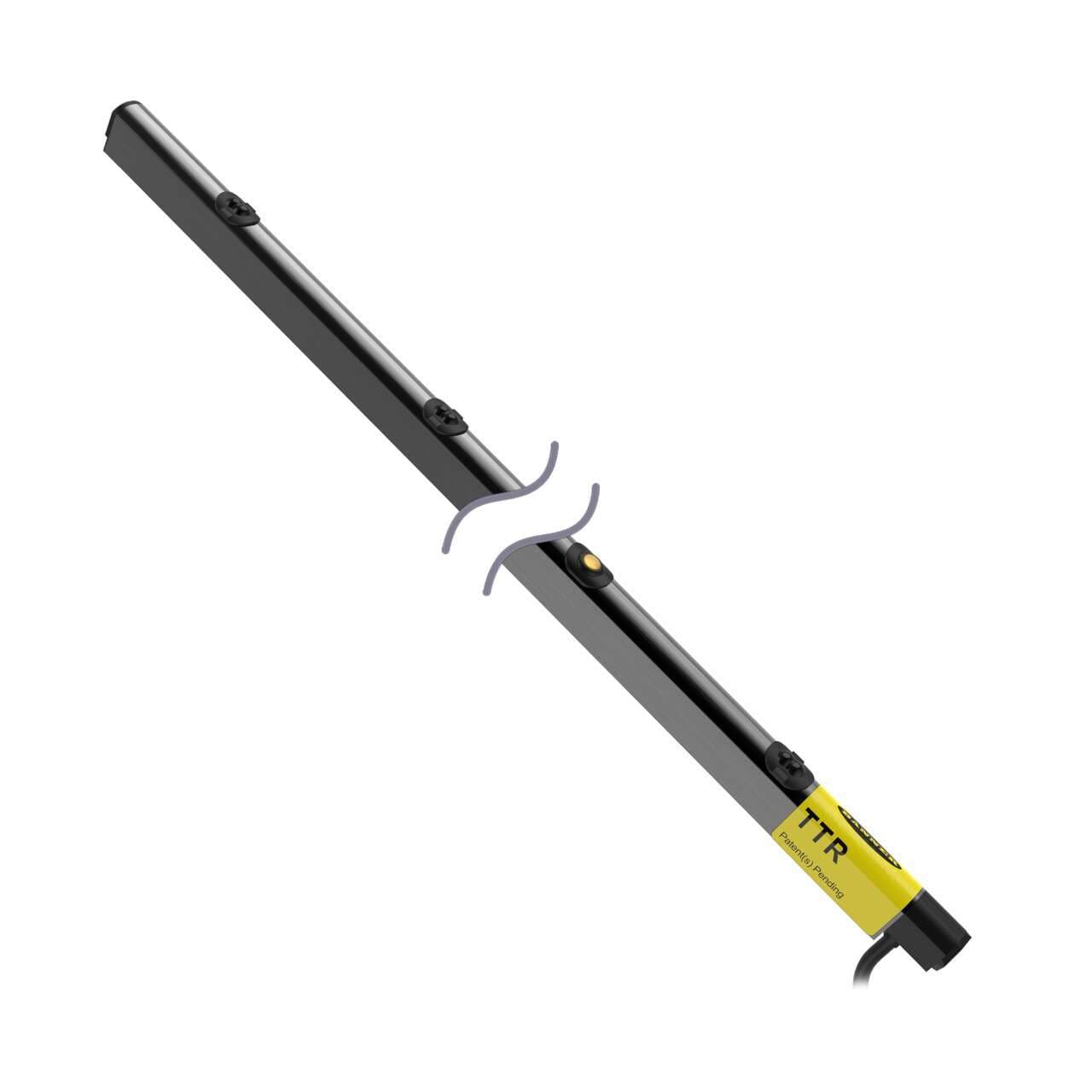

TTR991RPSD6T-1.0Q3-075 Banner Safety Light Curtains

TTR991RPSD6T-1.0Q3-075 on Powermatic Associates
Banner

Part#:TTR991RPSD6T-1.0Q3-075

Manufacturer:Banner

Category:Safety Light Curtains

Alt. Part#:809858

Product Lifecycle:Active

Get a quick Quote!

TTR Series 6 Beam Sensor Array 39.0 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm Diffuse; Output: DO PNP; Input: 18-30 V dc; 1 m (3.3 ft) M8 Conn. T: T-Slot Mount Endcap

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TTR991RPSD6T-1.0Q3-075 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    458.12792 g
  • Country Of Origin
    MX
  • Outputs
    PNP
  • Connection
    Pigtail QD
  • Power
    DC
  • Beam to Beam Spacing [mm]
    162
  • IP Rating
    IP50
  • Max Op. Temperature (°C)
    55
  • Delay at Power-up (ms)
    1500
  • Number of Pins
    4
  • Slot Overall Depth (mm)
    12
  • Slot Depth/Array Length (mm)
    991
  • Primary Housing Material
    Black Anodized Aluminum
  • Housing Style
    Roller Conveyor
  • End Cap Type
    T: T-Slot Mounting
  • Sensing Mode (Detailed)
    Diffuse
  • Number of Beams
    6
  • Distance to First Beam [mm]
    75
  • NEMA Rating
    N/A
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Min Op. Temperature (°C)
    -10
  • Indicator
    Indicator LEDs
  • Operation
    Dark Operate
  • Lens Material
    Polycarbonate
  • Power Supply/Supply Voltage
    18-30 V dc
  • Adjustments
    N/A
  • Output response time (ms)
    1
  • Cable Length (m)
    1
  • Quick Disconnect Type
    M8 (Pico)
  • Max Sensing Range (mm)
    120

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TTR991RPSD6T-1.0Q3-075 Description

TTR Series 6 Beam Sensor Array 39.0 inch Between Frame, Beam Spacing: 162 mm Range: 120 mm Diffuse, Output: DO PNP Input: 18 - 30 V dc, M8 Conn. T: T-Slot Mount Endcap 1m (3 ft)



Related documents TTR991RPSD6T-1.0Q3-075 Specs

Manufacturer warranty

$325.00

Request a quote, and we will send availability within minutes.

Select Qty:

$325.00

$325.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support
