TTR914BMSD5T-2.0FL-CTR Banner Safety Light Curtains

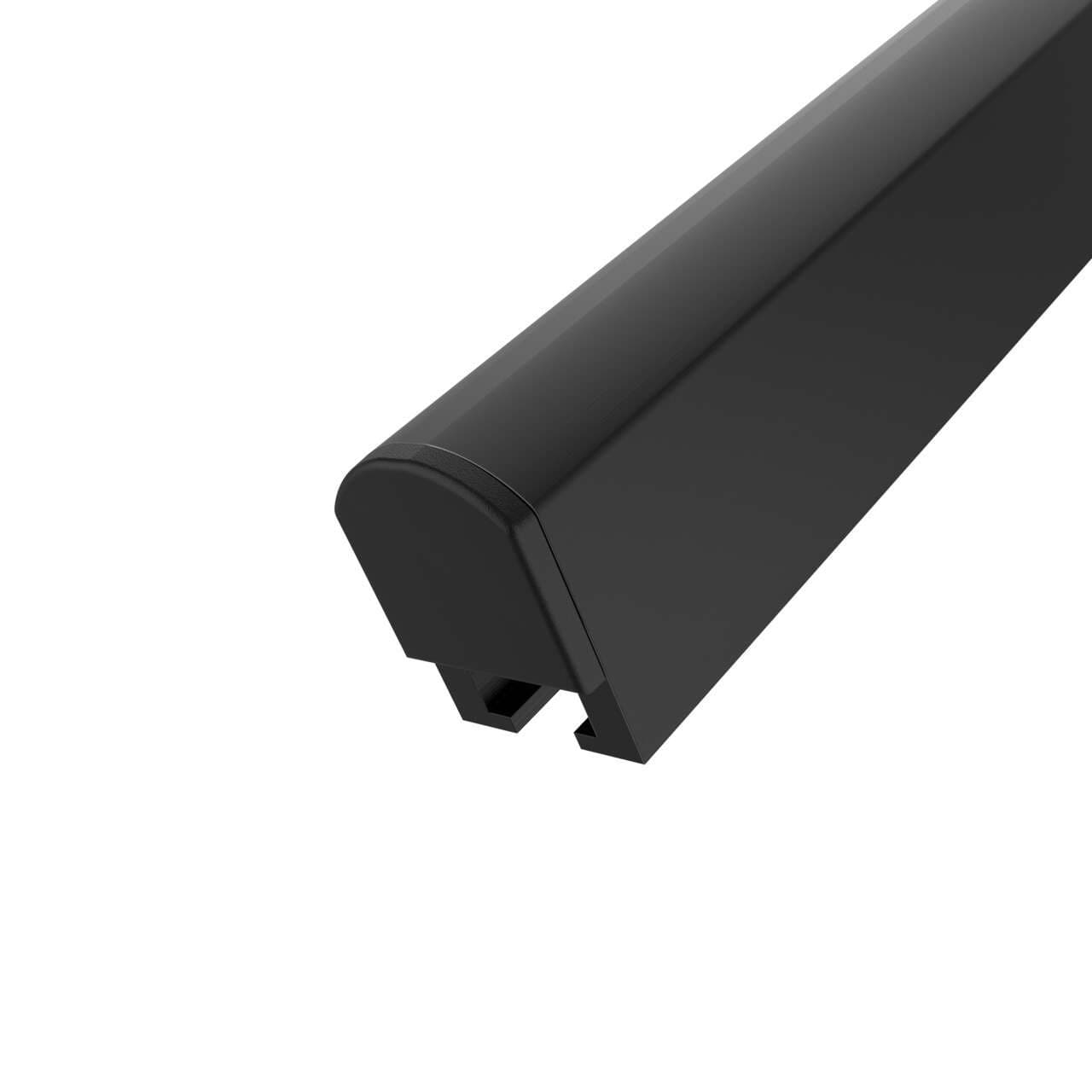

Banner TTR914BMSD5T-2.0FL-CTR TTR Series 5 Beam Sensor Array 36.0 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads
Banner

Part#:TTR914BMSD5T-2.0FL-CTR

Manufacturer:Banner

Alt. Part#:810315

Product Lifecycle:Active

Get a quick Quote!

TTR Series 5 Beam Sensor Array 36.0 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TTR914BMSD5T-2.0FL-CTR Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    439.98424 g
  • Country Of Origin
    MX
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Power Supply/Supply Voltage
    18-30 V dc
  • Max Sensing Range (mm)
    120
  • Beam to Beam Spacing [mm]
    162
  • Number of Beams
    5
  • Min Op. Temperature (°C)
    -10
  • Distance to First Beam [mm]
    133
  • NEMA Rating
    N/A
  • IP Rating
    IP50
  • Indicator
    Indicator LEDs
  • Max Op. Temperature (°C)
    55
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    1500
  • Output response time (ms)
    1
  • Lens Material
    Polycarbonate
  • Adjustments
    N/A
  • Number of Pins
    4
  • Outputs
    Bimodal
  • Slot Overall Depth (mm)
    19
  • Quick Disconnect Type
    No QD
  • Cable Length (m)
    2
  • Connection
    Cable
  • Housing Style
    Sensing Array Bar
  • Slot Depth/Array Length (mm)
    908
  • End Cap Type
    T: T-Slot Mounting
  • Primary Housing Material
    Black Anodized Aluminum
  • Sensing Mode (Detailed)
    Diffuse
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TTR914BMSD5T-2.0FL-CTR Description

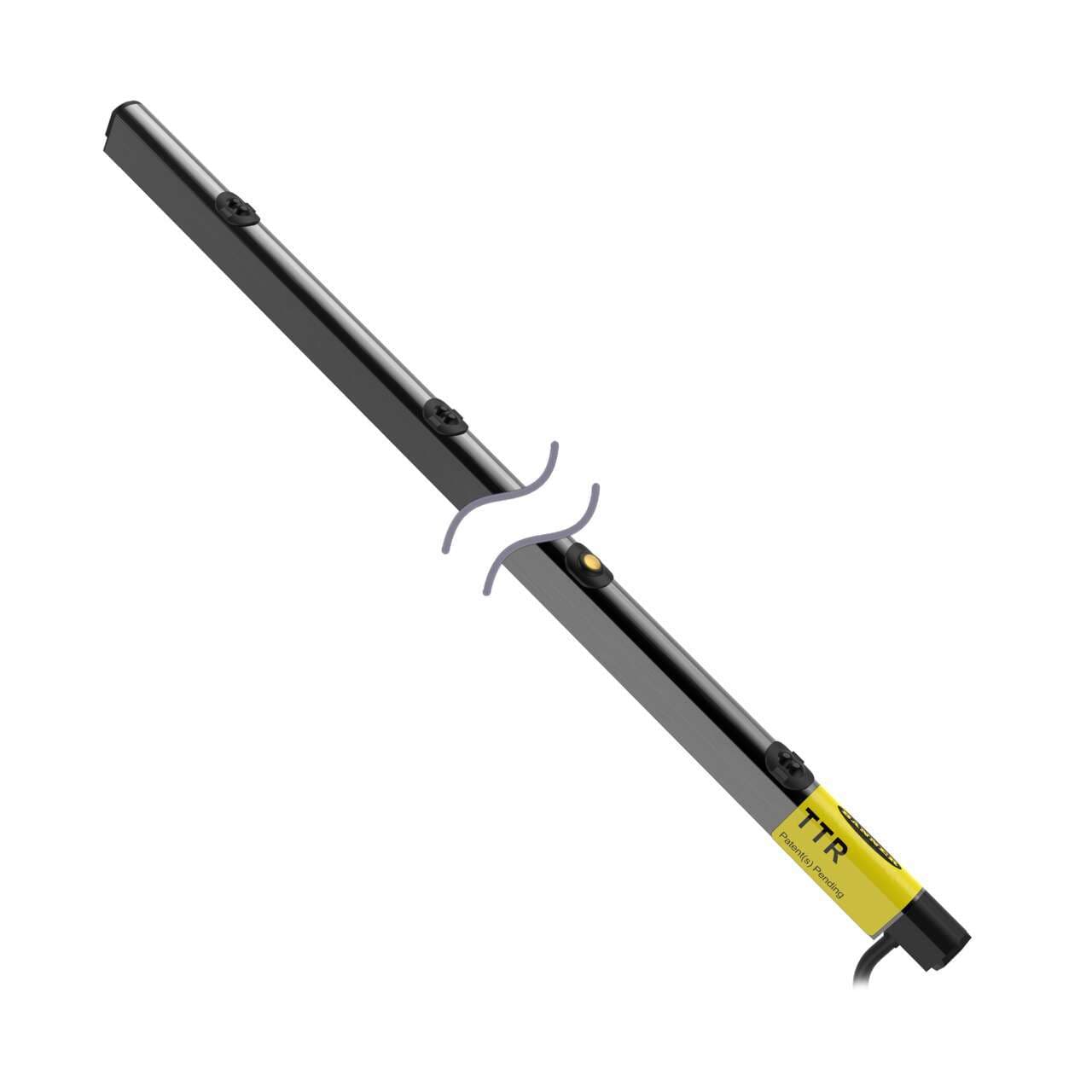

Banner Engineering TTR914BMSD5T-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 5 beams. This part is pre-wired with a 2m cable that has bare end flying leads for connection. It has a rectangular shape with dimensions including a 914mm array length and a beam spacing/pitch of 162mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is designed to operate within an ambient air temperature range of -10 to +70°C and offers a degree of protection rated at IP50. This sensor array has a sensing distance of 120mm and utilizes infrared (IR) light with a wavelength of 940 nm. It is equipped with 1 x digital output (PNP/NPN transistor) for signaling.

Related documents TTR914BMSD5T-2.0FL-CTR Specs

TTR914BMSD5T-2.0FL-CTR 216696.pdf
