TCNM-EX-1200 Banner Barcode Readers

TCNM-EX-1200 on Powermatic Associates
Banner

Part#:TCNM-EX-1200

Manufacturer:Banner

Alt. Part#:90818

Product Lifecycle:Active

Get a quick Quote!

Laser Barcode Scanner EX Medium Range Linear; Range: 100-450 mm; Res.: 10-20 mils; I/O: 2 configurable - NPN/PNP Function Timing; Requires: TCNM-ACBB1 Box or TCNM-AD-CAB Cordset

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TCNM-EX-1200 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    544.3104 g
  • Country Of Origin
    IT
  • USB
    No
  • Image Resolution
    Down to 0.25 mm
  • PROFINET
    No
  • RS-232
    Yes
  • EtherNet/IP
    No
  • RS-422
    No
  • FTP
    No
  • PCCC
    No
  • IP Rating
    IP65
  • Common Ethernet Protocol
    No
  • Modbus/TCP
    No
  • Primary Housing Material
    Aluminum
  • Camera Housing Size (HxWxL mm)
    33 x 68 x 83
  • Imager Type
    Grayscale
  • Code Type
    1D
  • Device Type
    Laser
  • Feature: PC Interface
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TCNM-EX-1200 Description

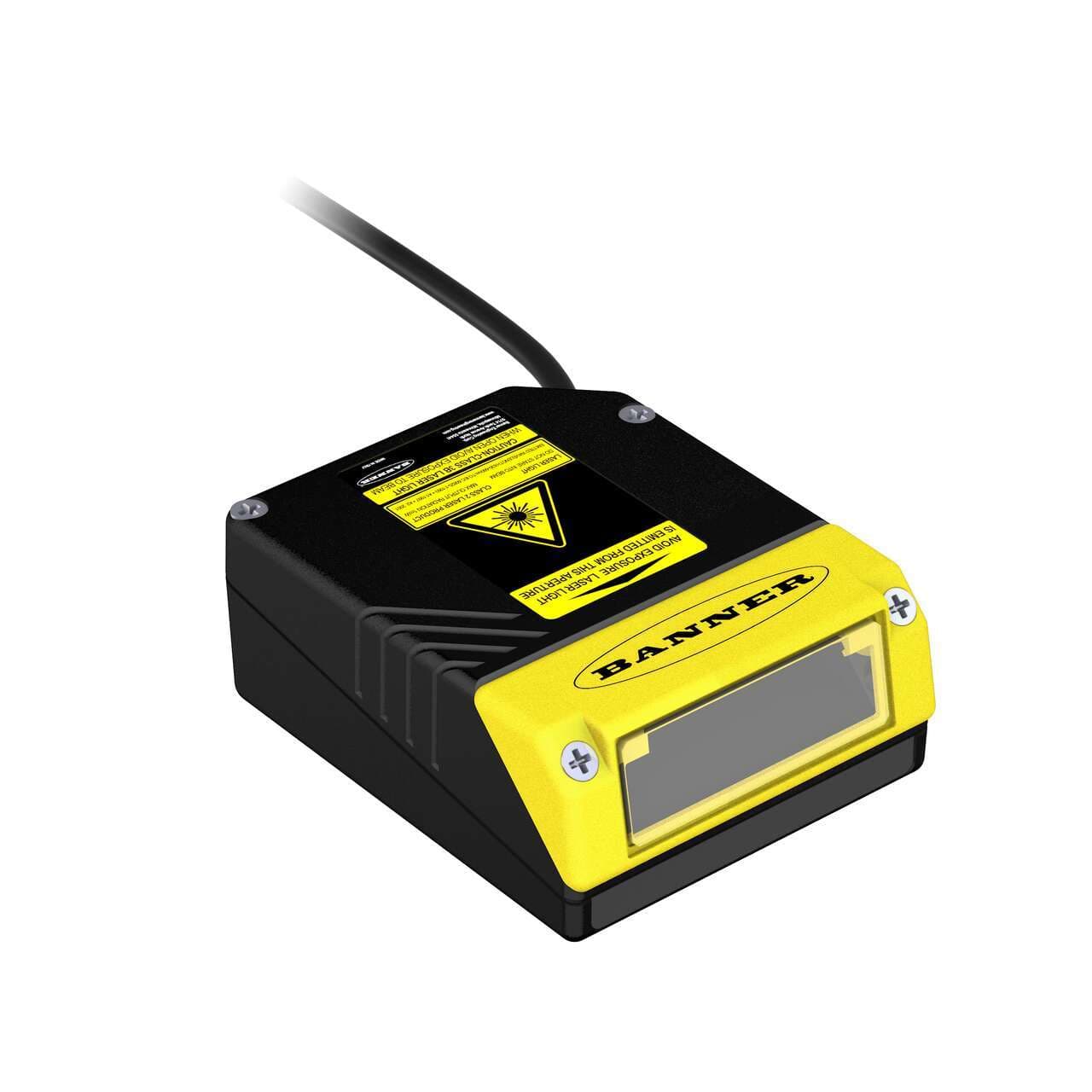

Banner Engineering TCNM-EX-1200 is a 1D Class medium-range Laser barcode scanner within the TCNM series, designed for line scanning applications. It features a black anodized aluminum housing with a glass lens, ensuring durability and clarity for scanning tasks. This model is pre-equipped with a 25-pin male D-Sub connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The TCNM-EX-1200 is designed to function within an ambient air temperature range of 0 to +45°C, making it suitable for a variety of environments. It boasts an IP65 degree of protection, indicating a high level of resistance to dust and water. Communication is facilitated via an RS-232 protocol, and the unit includes 2 x digital outputs (PNP/NPN transistor) for enhanced functionality. The sensing distance of this scanner ranges from 100mm to 440mm, accommodating various scanning needs.

Related documents TCNM-EX-1200 Specs

TCNM-EX-1200 177693.pdf
