T30UXIC-CRFV W/30 Banner Ultrasonic Sensors

T30UXIC-CRFV W/30 on Powermatic Associates
Banner

Part#:T30UXIC-CRFV W/30

Manufacturer:Banner

Alt. Part#:805759

Product Lifecycle:Active

Get a quick Quote!

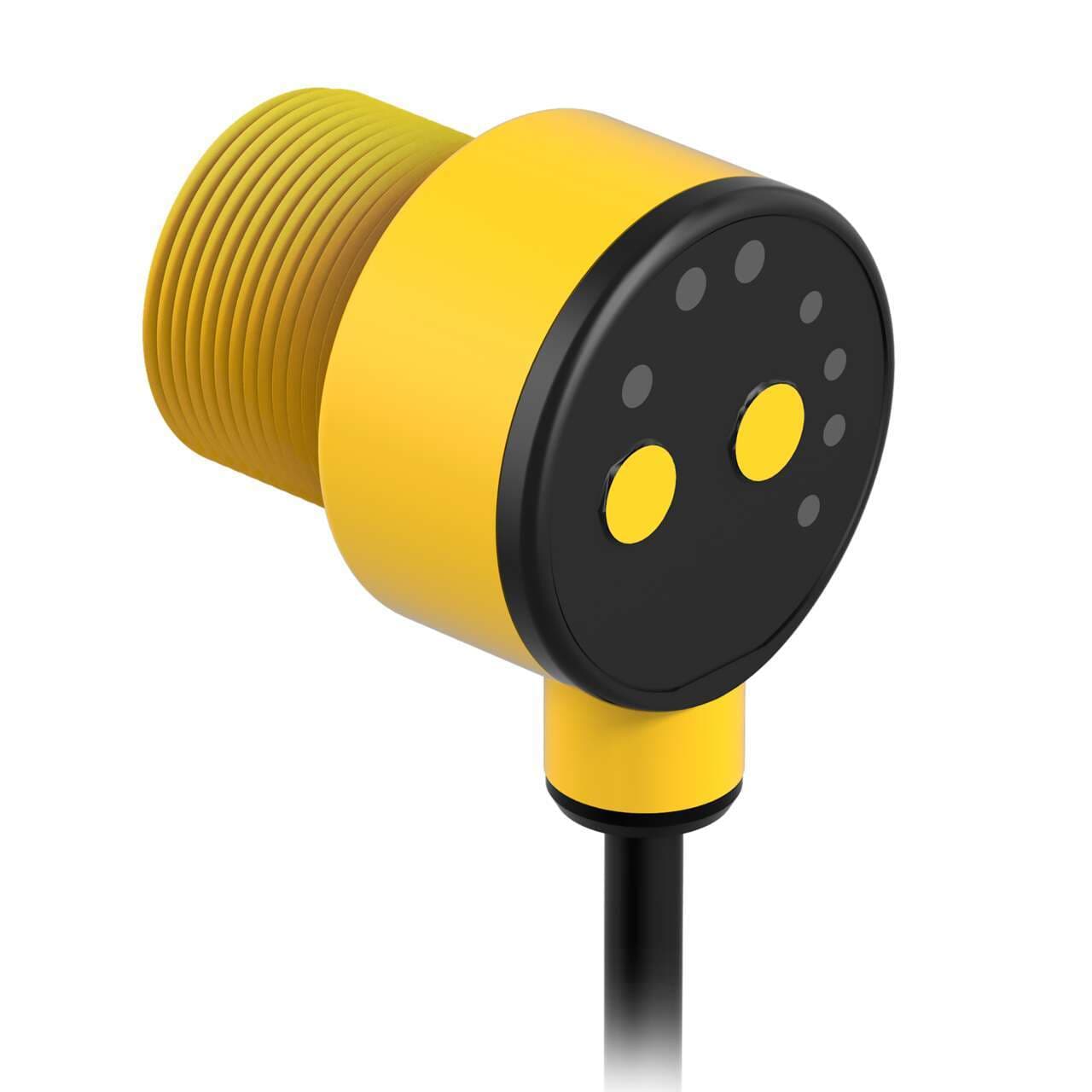

T30UX Series: CRFV Coating W/Flange; w/ Analog Output; Range: 300 mm - 1.5 m; Input: 10-30 V dc; Analog Output: 4-20 mA; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T30UXIC-CRFV W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    762.03456 g
  • Country Of Origin
    CN
  • Wireless
    No
  • 1-wire Serial Interface
    No
  • RS-485
    No
  • RS-232
    No
  • Feature: Remote Teach
    Yes
  • Feature: Clear Object Detection
    Yes
  • IO Link
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Barrel Diameter (mm)
    30
  • Remote Teach and Laser Control Input Impedence
    55 kΩ
  • Max Op. Relative Humidity Non-Condensing (%)
    95 at 50°C
  • Minimum Response Time (ms)
    135
  • Output Protection
    Protected against short circuit conditions
  • Output Saturation Voltage PNP Outputs
    < 3 V at 100 mA
  • Max Discrete (Switched) Output (mA)
    100
  • Temperature Effect (mm/°C)
    0.02% of sensing distance/°C
  • Minimum Sensing Distance (mm)
    300
  • Primary Housing Material
    PBT
  • Indicator
    LED(s)
  • Sensing Mode (Detailed)
    Time of Flight
  • Max Measurement Range
    >1 m - <=20 m
  • Profibus
    No
  • PROFINET
    No
  • SSI
    No
  • RS-422
    No
  • Application: Ultrasonic
    Yes
  • Common Ethernet Protocol
    No
  • Feature: Timing (Hold/Delay)
    No
  • Power/Current Consumption (exclusive of load)
    40 mA
  • Feature: Chemical Resistant
    Yes
  • Ultrasonic Frequency (kHz)
    114
  • Max Off-state Leakage Current (µA)
    NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
  • Minimum Window Size (mm)
    10
  • Min Operating Temperature (°C)
    -40
  • Rep Rate (ms)
    45
  • Analog Linearity (mm)
    0.25% of distance
  • Max Operating Temperature (°C)
    70
  • NEMA Rating
    NEMA 6
  • Analog Current Output Rating
    1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
  • IP Rating
    IP67
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Output Saturation Voltage NPN Outputs
    < 1.6 V at 100 mA
  • Adjustments
    Teach Button
  • Delay at Power-up (ms)
    500
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    4
  • Power Supply
    10-30 V dc
  • Max Sensing Distance (mm)
    3000
  • Analog Output Configuration
    4-20 mA
  • Connection
    Flying Leads
  • Quick Disconnect Type
    No QD
  • Input/Output
    Analog
  • Analog Resolution/Discrete Repeatability
    0.1% of distance (1.5 mm min.)
  • PC Configurable
    No
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Barrel
  • Cable Length (m)
    9
  • Device Type
    Sensor
  • Power
    DC
  • Sensing Beam
    Ultrasonic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

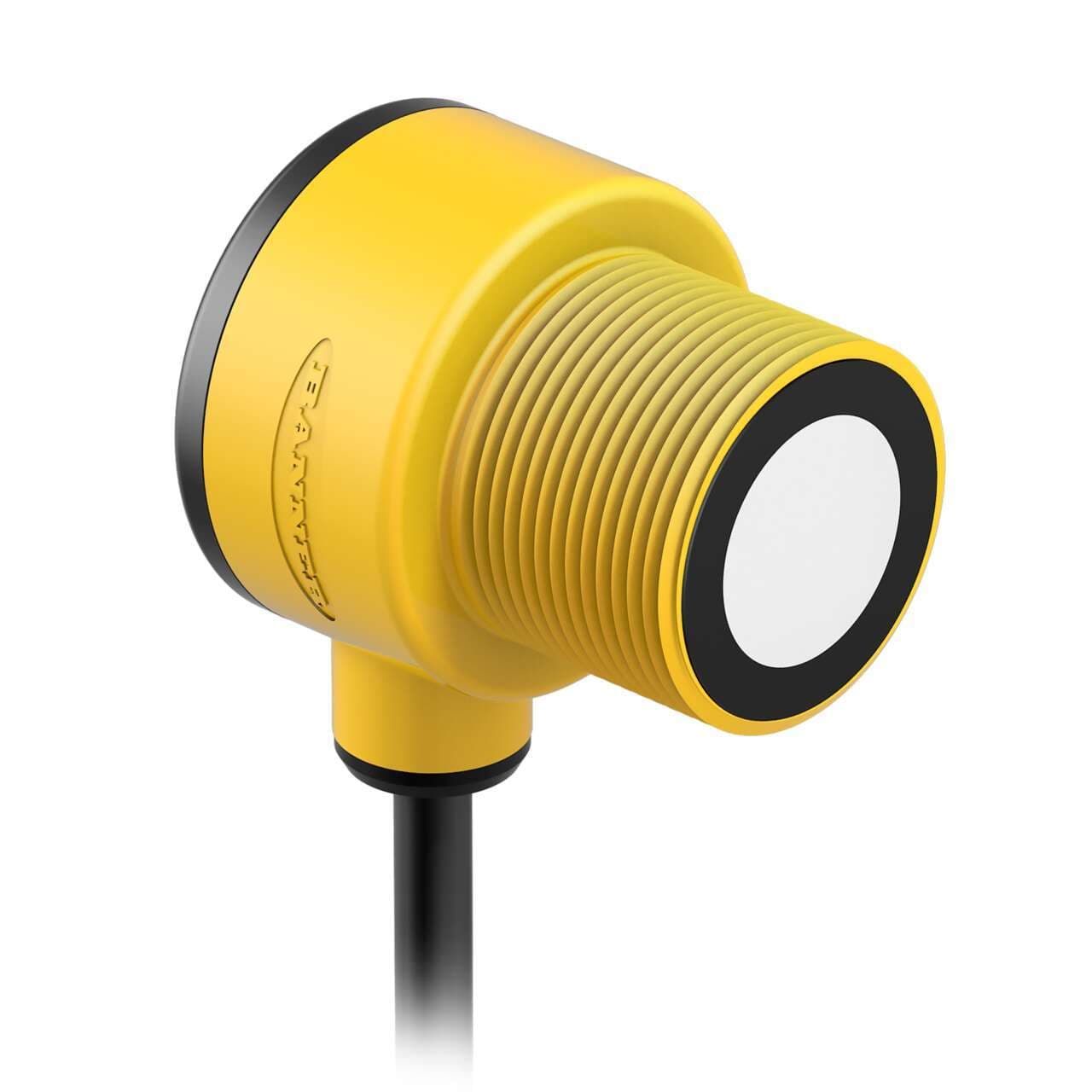

T30UXIC-CRFV W/30 Description

Banner Engineering T30UXIC-CRFV W/30 is an ultrasonic distance sensor/transmitter belonging to the T30UX series. It features a time-of-flight system with extended temperature range and compensation TEACH mode. The sensor is housed in polybutylene terephthalate (P.B.T.) and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and is designed for threaded mount installation. The sensor can operate in ambient air temperatures ranging from -40 to +70°C and is rated with a degree of protection of IP67 NEMA 6. Its M30 cylindrical threaded/barrel shape allows for a sensing distance of 30mm to 3m, with a transmission frequency of 114kHz. It includes protection functions against short-circuit and features 1 x analog output (4-20mA) for connectivity, with a thread size of M30.

Related documents T30UXIC-CRFV W/30 Specs

T30UXIC-CRFV W/30 141958.pdf
