T30UXIAQP-88267 W/13FT Banner Ultrasonic Sensors

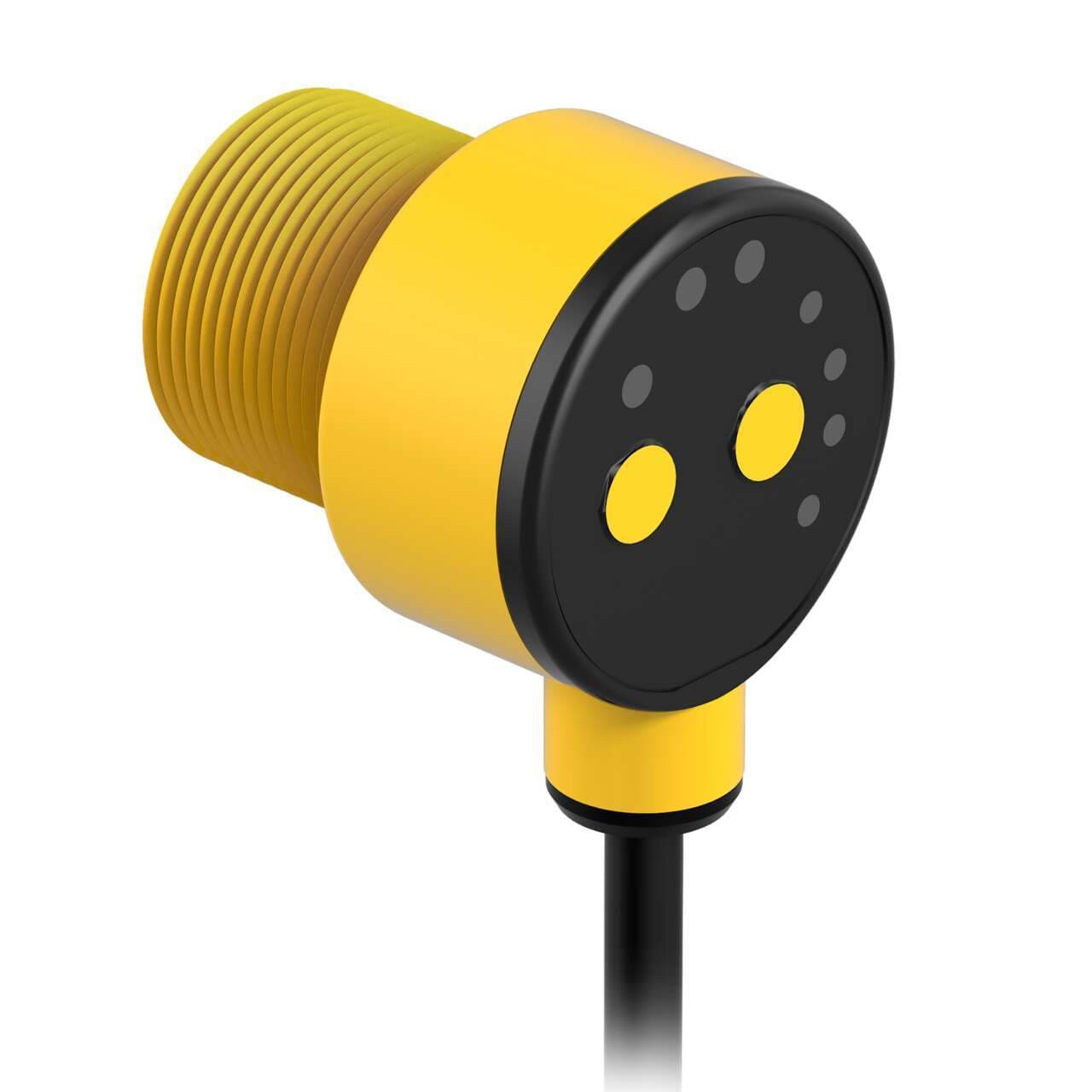

Banner T30UXIAQP-88267 W/13FT T30UX Series w/ Analog Output; Range: 100 mm - 1 m; Input: 10-30 V dc; Analog Output: 4-20 mA; 100 mm - 1 m Preset Window limits; 4 m (13 ft) 4-pin M12 Pigtail QD; No Pushbuttons
Banner

Part#:T30UXIAQP-88267 W/13FT

Manufacturer:Banner

Alt. Part#:88267

Product Lifecycle:Active

Get a quick Quote!

T30UX Series w/ Analog Output; Range: 100 mm - 1 m; Input: 10-30 V dc; Analog Output: 4-20 mA; 100 mm - 1 m Preset Window limits; 4 m (13 ft) 4-pin M12 Pigtail QD; No Pushbuttons

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T30UXIAQP-88267 W/13FT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    249.4756 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T30UXIAQP-88267 W/13FT Description

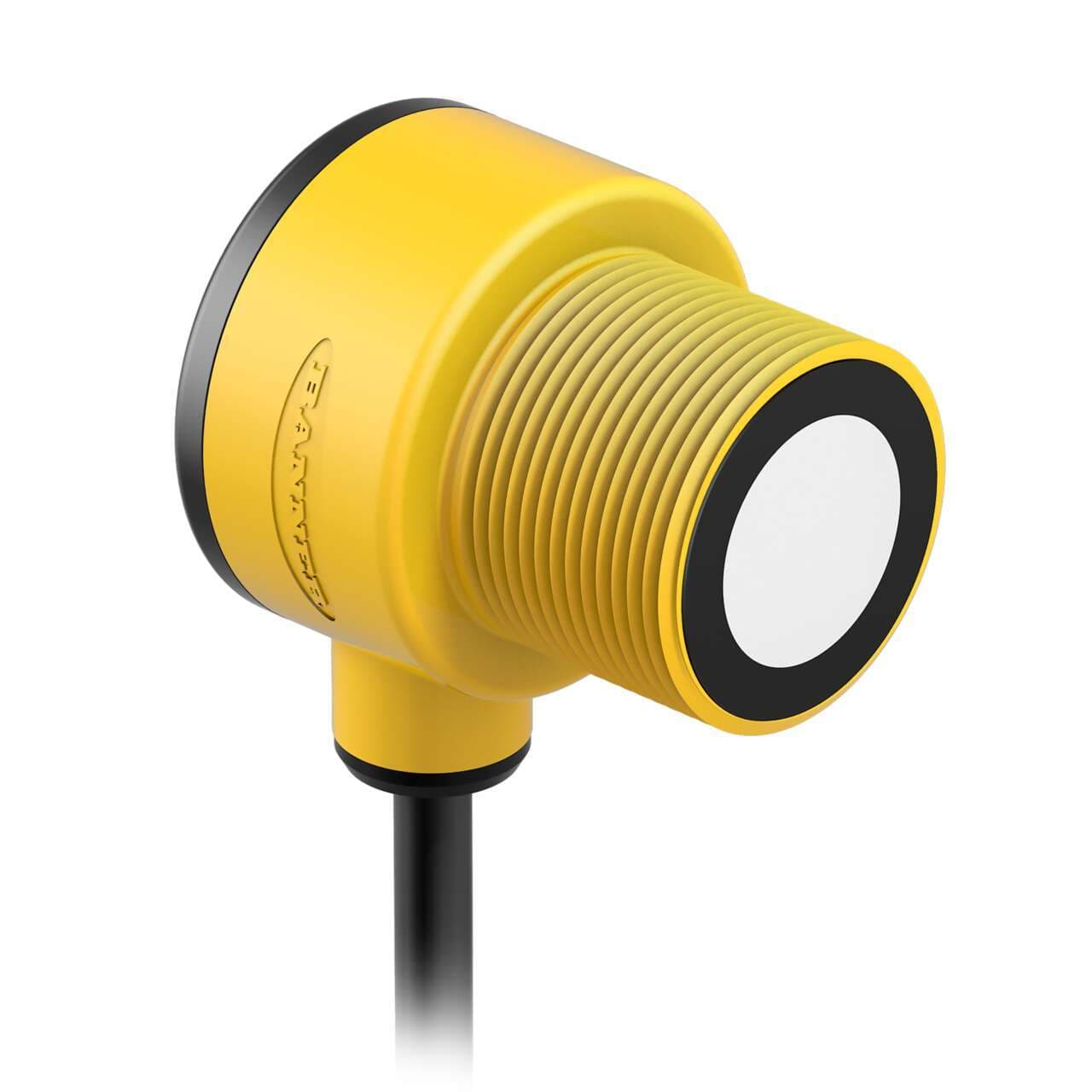

Banner Engineering T30UXIAQP-88267 W/13FT is an ultrasonic sensor belonging to the T30UX series, designed with a time-of-flight system and extended temperature range with compensation in TEACH mode. This sensor features a thermoplastic housing and is pre-wired with a 13ft / 4m pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. The T30UXIAQP-88267 W/13FT is mounted via a threaded mount and can operate within an ambient air temperature range of -40 to +70°C. It is protected to IP67 NEMA 6P standards, ensuring its durability in various environmental conditions. The sensor has an M30 cylindrical threaded/barrel shape, with a sensing distance ranging from 10cm to 1m and utilizes a 224kHz transmission frequency. It includes protection functions against short-circuit and offers 1 x analog output (4-20mA) for connectivity. The thread size for mounting is M30.

Related documents T30UXIAQP-88267 W/13FT Specs

T30UXIAQP-88267 W/13FT 141958.pdf
