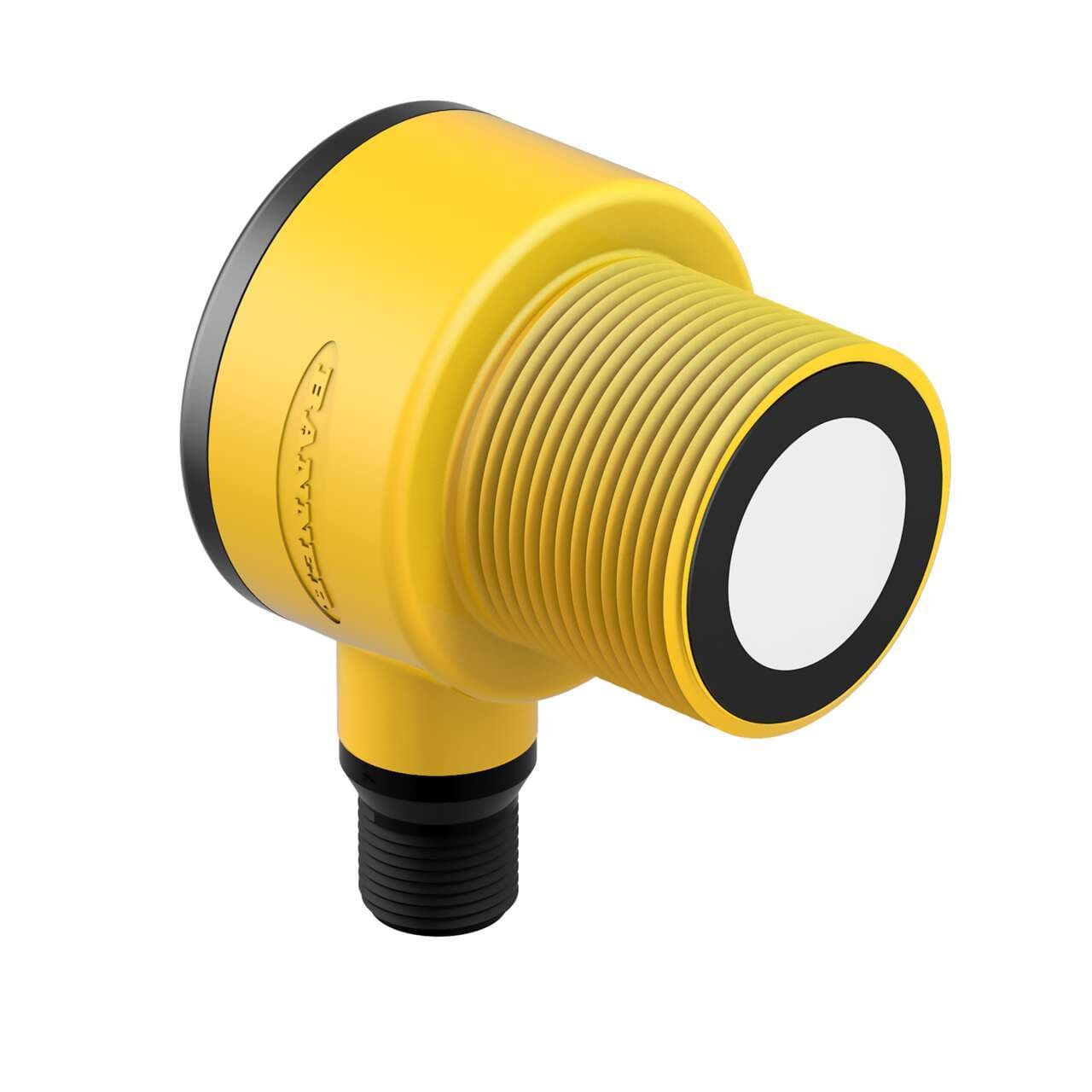

T30UIPBQ Banner Ultrasonic Sensors

Product Details

• Weight
  117.93392 g
• Country Of Origin
  CN
• 1-wire Serial Interface
  No
• Profibus
  No
• Wireless
  No
• Max Operating Temperature (°C)
  70
• NEMA Rating
  NEMA 6P
• IP Rating
  IP67
• Minimum Window Size (mm)
  10
• Discrete (Switched) Outputs
  1 PNP
• Max Discrete (Switched) Output (mA)
  100
• Mechanical Shock
  IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
• Analog Current Output Rating
  1 Ω to [(Vcc-7 V)/0.02 A] Ω
• Output Saturation Voltage PNP Outputs
  < 1.0 V at 10 mA ; < 1.5 V at 100 mA
• Vibration
  MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
• Number of Pins
  5
• Temperature Effect (mm/°C)
  0.2% of sensing distance/°C
• Adjustments
  Teach Button
• Power Supply
  12-24 V dc
• Minimum Sensing Distance (mm)
  300
Max Sensing Distance (mm)
2000
Analog Resolution/Discrete Repeatability
+/- 0.25% of measured distance (1.0 min)
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
Indicator
LED(s)
Analog Output Configuration
4-20 mA
Input/Output
Analog & Discrete
Sensing Mode (Detailed)
Time of Flight
Power
DC
Sensing Beam
Ultrasonic
Housing Style
Barrel
Sensing Mode (General)
Proximity
Primary Housing Material
PBT
Max Measurement Range
>1 m - <=20 m
PC Configurable
No
Device Type
Sensor
RS-422
No
RS-485
No
SSI
No
Common Ethernet Protocol
No
IO Link
No
RS-232
No
PROFINET
No
Application: Ultrasonic
Yes
Power/Current Consumption (exclusive of load)
90 mA
Max Off-state Leakage Current (µA)
10
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Feature: Chemical Resistant
No
Feature: Timing (Hold/Delay)
No
Feature: Remote Teach
Yes
Feature: Clear Object Detection
Yes
Ultrasonic Frequency (kHz)
128
Discrete Output Hysteresis (mm)
2.5
Analog Linearity (mm)
+/- 0.5% of full-scale span
Minimum Response Time (ms)
96
Barrel Diameter (mm)
30
Remote Teach and Laser Control Input Impedence
55 kΩ
Warm-up Time (minutes)
15
Max Op. Relative Humidity Non-Condensing (%)
100
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Min Operating Temperature (°C)
-20
Product series / family name
U-GAGE series
Shape
Cylindrical smooth
Mounting mode
Threaded mount
Main function
Sensor (Distance)
Supply voltage (DC)
12Vdc-24Vdc
Primary brand
Banner Engineering
Design
time-of-flight system
Sub-range name
T30U analog and discrete output series
Sensing distance
30cm...2m
Degree of protection
IP67 NEMA 6P
Emission frequency
128kHz
Functions
Long-range ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Thread size
M30
Digital outputs
1 x digital output (PNP transistor)
Protection functions
Overload Short-circuit
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Analog outputs
1 x analog output (4-20mA)
Compliant with standard(s)
CE
Ambient air temperature for operation
-20...+70 °C
Material
thermoplastic housing
Order code / Manufacturer SKU
55981
