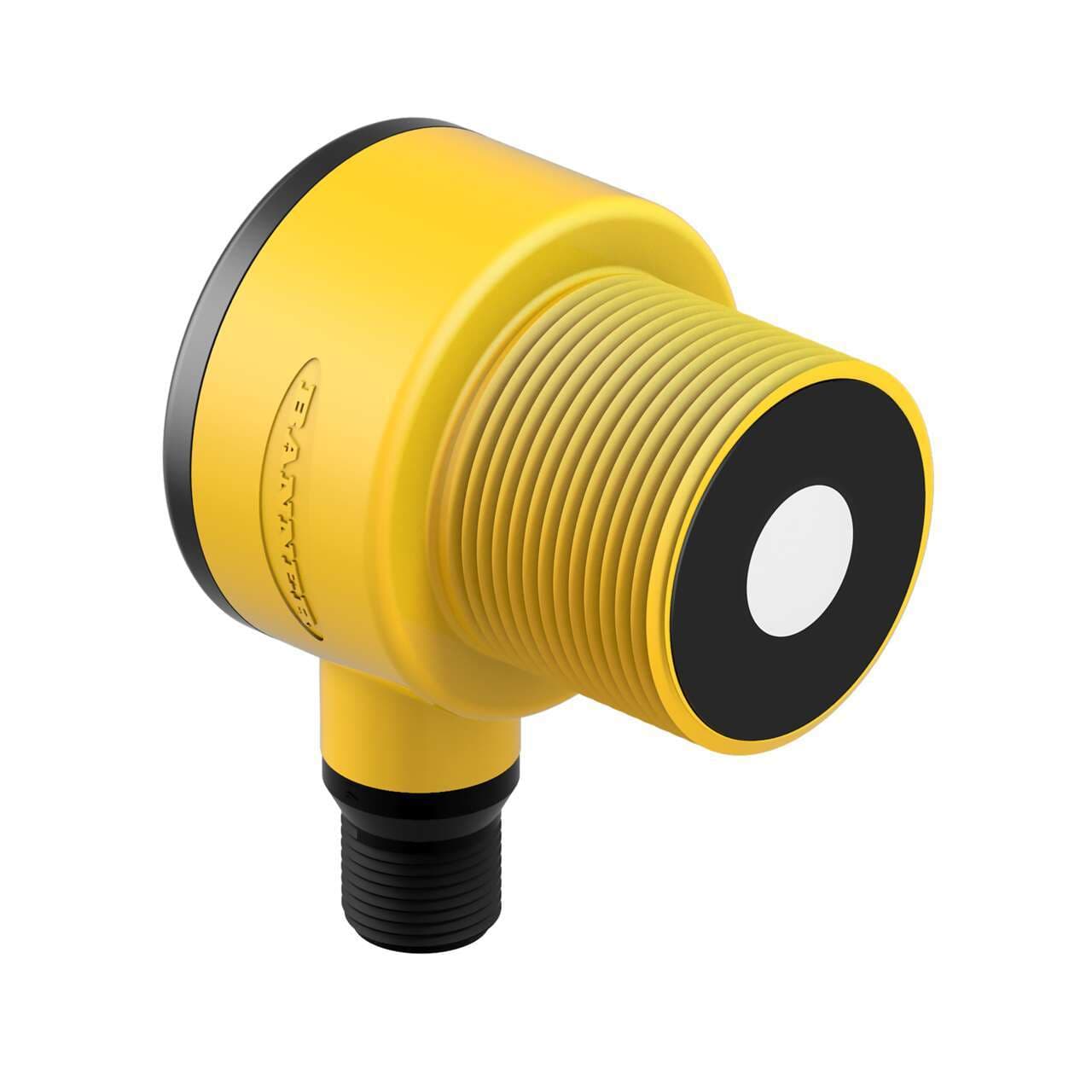

T30UIPAQ Banner Ultrasonic Sensors

Product Details

• Weight
  108.86208 g
• Country Of Origin
  CN
• RS-485
  No
• RS-422
  No
• Max Off-state Leakage Current (µA)
  10
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-232
  No
• PROFINET
  No
• Wireless
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  90 mA
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
Ultrasonic Frequency (kHz)
228
Discrete Output Hysteresis (mm)
2.5
Remote Teach and Laser Control Input Impedence
55 kΩ
Minimum Window Size (mm)
10
Minimum Response Time (ms)
48
Analog Linearity (mm)
+/- 0.5% of full-scale span
Barrel Diameter (mm)
30
Warm-up Time (minutes)
15
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
NEMA Rating
NEMA 6P
Max Operating Temperature (°C)
70
IP Rating
IP67
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs
< 1.0 V at 10 mA ; < 1.5 V at 100 mA
Max Discrete (Switched) Output (mA)
100
Discrete (Switched) Outputs
1 PNP
Analog Current Output Rating
1 Ω to [(Vcc-7 V)/0.02 A] Ω
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Number of Pins
5
Adjustments
Teach Button
Power Supply
12-24 V dc
Quick Disconnect Type
M12 (Euro)
Minimum Sensing Distance (mm)
150
Analog Resolution/Discrete Repeatability
+/- 0.25% of measured distance (0.5 min)
Max Sensing Distance (mm)
1000
Connection
Integral QD
Analog Output Configuration
4-20 mA
Input/Output
Analog & Discrete
Indicator
LED(s)
Primary Housing Material
PBT
Device Type
Sensor
Max Measurement Range
>500 mm - <=1000 mm
Sensing Mode (Detailed)
Time of Flight
Housing Style
Barrel
Sensing Beam
Ultrasonic
Power
DC
Sensing Mode (General)
Proximity
PC Configurable
No
Design
time-of-flight system
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Material
thermoplastic housing
Supply voltage (DC)
12Vdc-24Vdc
Digital outputs
1 x digital output (PNP transistor)
Emission frequency
228kHz
Main function
Sensor (Distance)
Shape
Cylindrical smooth
Primary brand
Banner Engineering
Product series / family name
U-GAGE series
Functions
Short-range ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Thread size
M30
Degree of protection
IP67 NEMA 6P
Ambient air temperature for operation
-20...+70 °C
Sub-range name
T30U analog and discrete output series
Sensing distance
0.15cm...1m
Analog outputs
1 x analog output (4-20mA)
Protection functions
Overload Short-circuit
Mounting mode
Threaded mount
Compliant with standard(s)
CE
Order code / Manufacturer SKU
55975
