T30UHPB W/30

Banner

Product Lifecycle: Active

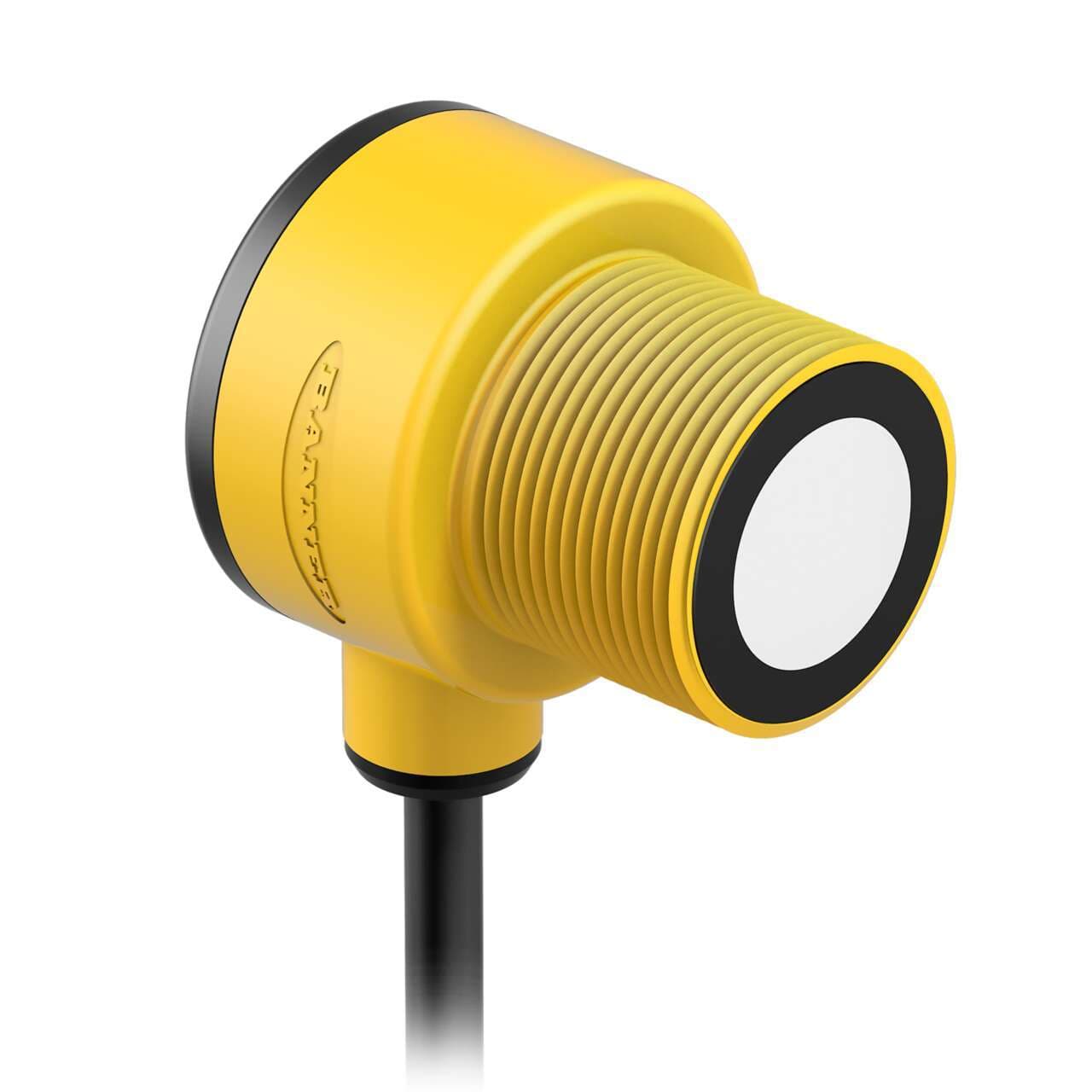

Banner Engineering T30UHPB W/30 is an ultrasonic sensor belonging to the T30UH series, designed with a time-of-flight system and TEACH mode for long-range distance sensing. This sensor features a thermoplastic housing and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and is mounted via a threaded mount. The sensor can operate in ambient air temperatures ranging from -20 to +70°C and is rated with a degree of protection of IP67 NEMA 6P, making it suitable for harsh environments. Its shape is an M30 cylindrical threaded/barrel, and it includes 2 x digital outputs (PNP transistor; complementary NO/NC) for connectivity. The sensing distance of this sensor ranges from 30cm to 2m, with a transmission frequency of 128kHz. It also includes protection functions against overload and short-circuit, with a thread size of M30.

T30UHPB W/30

Banner Engineering T30UHPB W/30 is an ultrasonic sensor belonging to the T30UH series, designed with a time-of-flight system and TEACH mode for long-range distance sensing. This sensor features a thermoplastic housing and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and is mounted via a threaded mount. The sensor can operate in ambient air temperatures ranging from -20 to +70°C and is rated with a degree of protection of IP67 NEMA 6P, making it suitable for harsh environments. Its shape is an M30 cylindrical threaded/barrel, and it includes 2 x digital outputs (PNP transistor; complementary NO/NC) for connectivity. The sensing distance of this sensor ranges from 30cm to 2m, with a transmission frequency of 128kHz. It also includes protection functions against overload and short-circuit, with a thread size of M30.

U-GAGE T30 Ultrasonic Series, Pump-In/Pump-Out Operation.pdf

T30U NB/PB CABLE/PIGTAIL.pdf

T30U NB/PB CABLE/PIGTAIL.stp

Product details

U-GAGE T30 Ultrasonic Series, Pump-In/Pump-Out Operation.pdf

T30U NB/PB CABLE/PIGTAIL.pdf

T30U NB/PB CABLE/PIGTAIL.stp

Feature: Pump-in/ Pump-outYes
WirelessNo
ProfibusNo
1-wire Serial InterfaceNo
RS-232No
RS-422No

SSINo

Common Ethernet ProtocolNo

RS-485No

Application: UltrasonicYes

PROFINETNo

IO LinkNo

Feature: Timing (Hold/Delay)No

Feature: Clear Object DetectionYes

Feature: Chemical ResistantNo

Feature: Remote TeachYes

Ultrasonic Frequency (kHz)128

Max Off-state Leakage Current (µA)10

Remote Teach and Laser Control Input Impedence55 kΩ

Discrete Output Hysteresis (mm)2.5

Minimum Window Size (mm)10

Supply Protection CircuitryProtected against reverse polarity and transient overvoltages

Power/Current Consumption (exclusive of load)90 mA

Warm-up Time (minutes)15

Barrel Diameter (mm)30

Min Operating Temperature (°C)-20

Minimum Response Time (ms)96

NEMA RatingNEMA 6P

Max Operating Temperature (°C)70

Output ProtectionProtected against false pulse on power-up and continuous overload or short-circuit of outputs

Max Op. Relative Humidity Non-Condensing (%)100

Discrete (Switched) Outputs2 PNP

Max Discrete (Switched) Output (mA)100

Output Saturation Voltage PNP Outputs< 1.0 V at 10 mA ; < 1.5 V at 100 mA

IP RatingIP67

Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

AdjustmentsTeach Button

VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Number of Pins5

Temperature Effect (mm/°C)0.2% of sensing distance/°C

Power Supply12-24 V dc

Minimum Sensing Distance (mm)300

Max Sensing Distance (mm)2000

Quick Disconnect TypeNo QD

IndicatorLED(s)

Input/OutputDiscrete

Analog Resolution/Discrete Repeatability+/- 0.25% of measured distance (1.0 min)

ConnectionFlying Leads

Primary Housing MaterialPBT

Device TypeSensor

PC ConfigurableNo

Housing StyleBarrel

Sensing Mode (General)Proximity

Sensing Mode (Detailed)Time of Flight

Cable Length (m)9

PowerDC

Max Measurement Range>1 m - <=20 m

Sensing BeamUltrasonic
