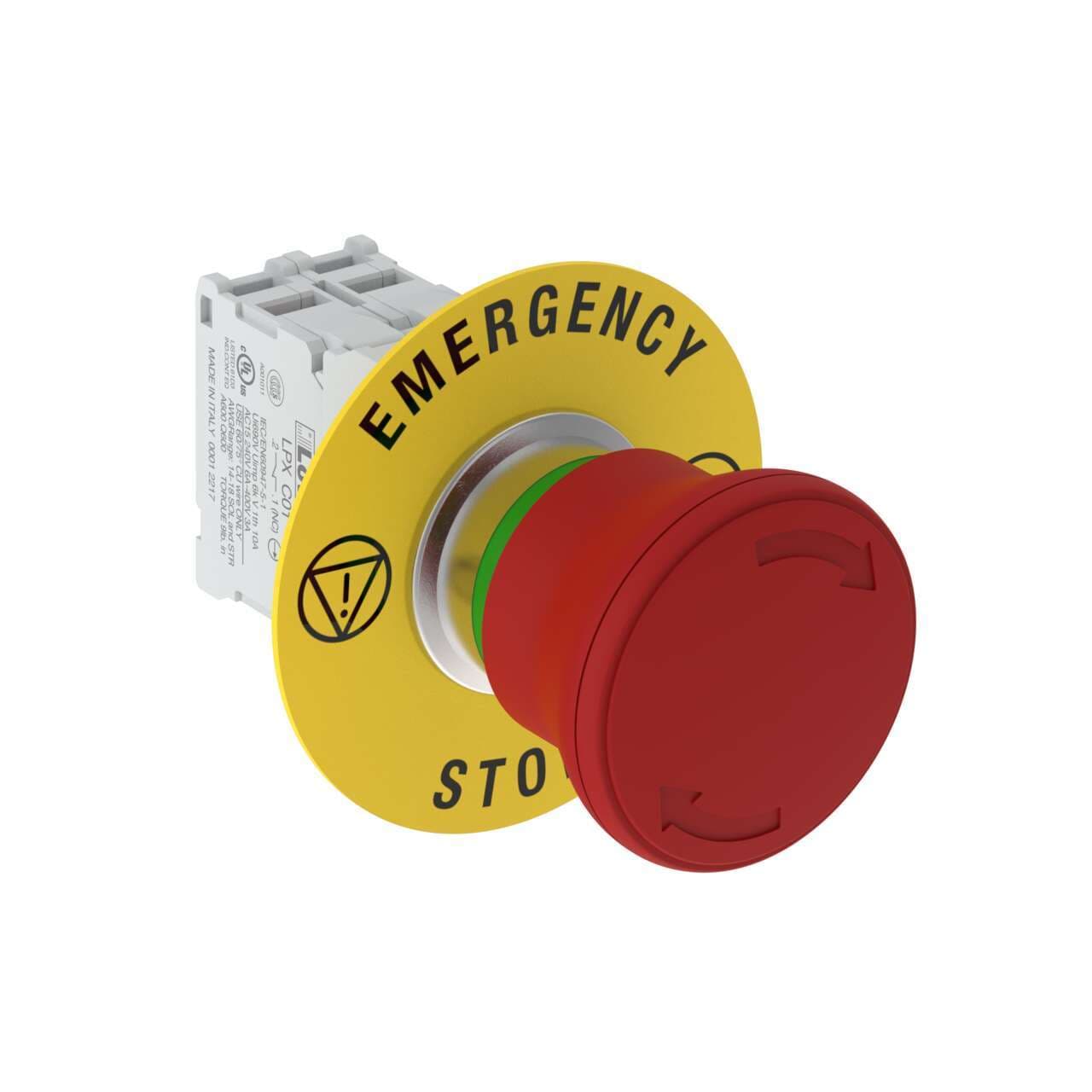

SSA-EBM-11L Banner Emergency Stop Push Buttons
Part#:SSA-EBM-11L
Alt. Part#:69700
Manufacturer:Banner
Category:Emergency Stop Push Buttons
Product Lifecycle:Active
Product description
22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, 1 NC & 1 NO Contacts; E-Stop Legend
Product Details
- Weight 136.0776 g
- Country Of Origin IT
- Max Operating Temperature ( °C) 60
- Button Diameter (mm) 40
- Feature: Lockable No
- Min Operating Temperature ( °C) -25
- Actuator/Button Material Thermoplastic
- Dimensions (HxWxD mm ) 93 x 40
- Mounting Thread/Style 22 mm
- Contact Rating 2 A @ 30 V dc
- Contact Quantity 1 NC, 1 NO
- Actuation Twist-to-Release
- Primary Housing Material Polycarbonate
- Device Type Push Button
- Housing Style Base
- IP Rating IP65
- Button Shroud No
- Connection Type Screw Terminal
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EBM-11L on Powermatic Associates is $96.00. Order now.
About the product
Banner Engineering SSA-EBM-11L is an Emergency STOP (E-Stop) pushbutton designed with a polycarbonate (PC) base and features a 40mm mushroom head for easy activation. It offers a screw-clamp terminal connection for secure wiring and comes in a yellow and black housing with a red actuator for clear visibility. The pushbutton is equipped with 1NO+1NC contacts, operates on a 24Vdc supply voltage, and is designed for flush mounting in a 22mm hole. It operates within an ambient air temperature range of -25°C to +60°C and is rated at IP65 for protection against dust and water ingress. The SSA-EBM-11L operates in a push-to-stop, stay-put (maintained/latched) mode with a twist-to-release mechanism. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for versatile connectivity options.
SSA-EBM-11L Related Documents
Manufacturer warranty
SSA-EBM-11L Banner
$96.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$96.00
$96.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SSA-EBM-11L with other Emergency Stop Push Buttons products
Weight
Country Of Origin
Max Operating Temperature...
Button Diameter (mm)
Feature: Lockable
Min Operating Temperature...
Actuator/Button Material
Dimensions (HxWxD mm )
Mounting Thread/Style
Contact Rating
Selected product
SSA-EBM-11L
Banner
22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, ...
Weight136.0776 g
Country Of OriginIT
Max Operating Temperature ( °C)60
Button Diameter (mm)40
Feature: LockableNo
Min Operating Temperature ( °C)-25
Actuator/Button MaterialThermoplastic
Dimensions (HxWxD mm )93 x 40
Mounting Thread/Style22 mm
Contact Rating2 A @ 30 V dc
Weight-
Country Of OriginChina
Max Operating Temperature ( °C)-
Button Diameter (mm)-
Feature: Lockable-
Min Operating Temperature ( °C)-
Actuator/Button Material-
Dimensions (HxWxD mm )-
Mounting Thread/Style-
Contact Rating-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SSA-EBM-11L?
Purchase the SSA-EBM-11L from Powermatic Associates at the price of $96.00. Order today.
Out if stock but available for backorder.
22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, 1 NC & 1 NO Contacts; E-Stop Legend
