SSA-EBM-02L Banner Emergency Stop Push Buttons

Name: SSA-EBM-02L
Brand: Banner

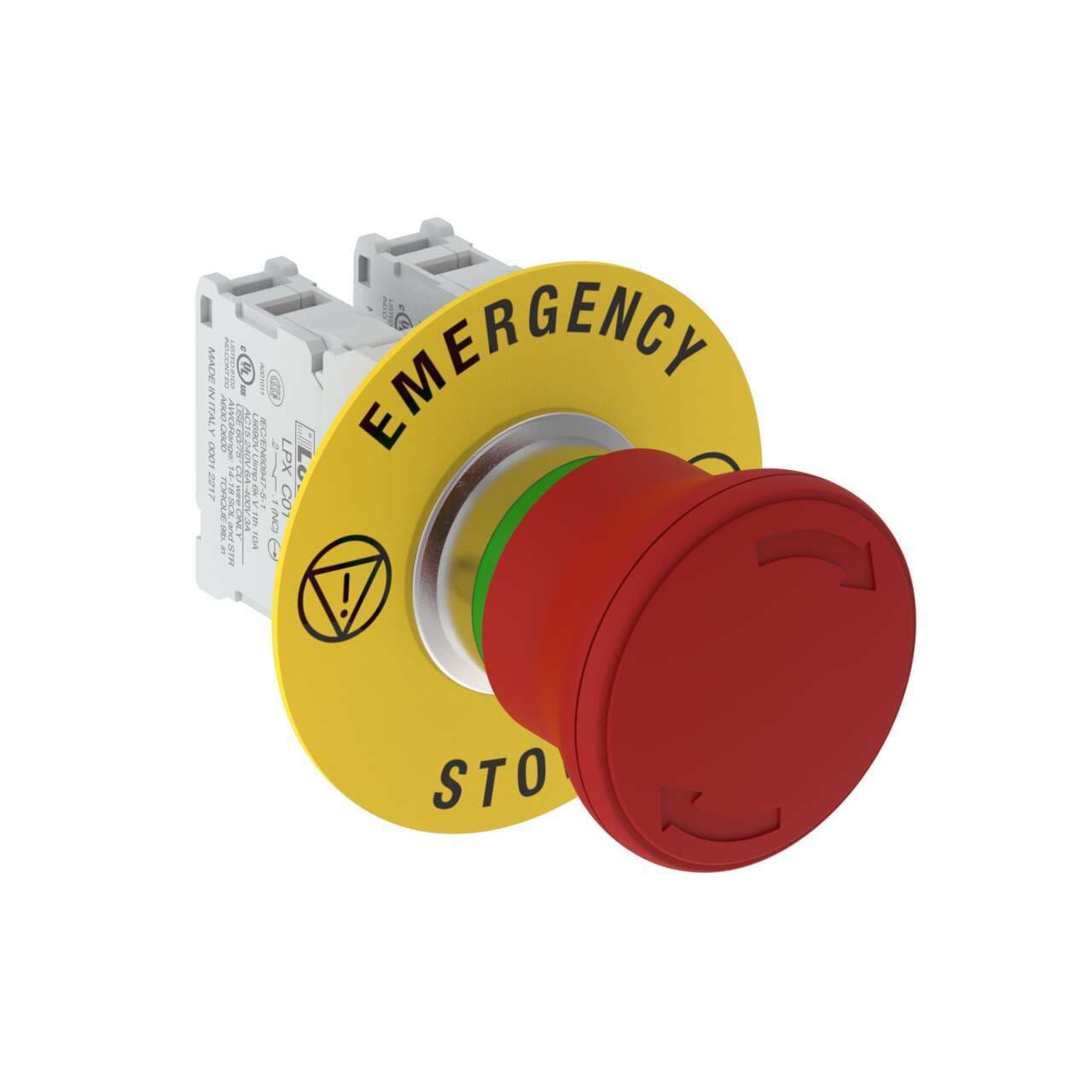

Banner SSA-EBM-02L 22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, 2 NC Contacts; E-Stop Legend

Part#:SSA-EBM-02L

Manufacturer:Banner

Alt. Part#:69699

Product Lifecycle:Active

Get a quick Quote!

22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, 2 NC Contacts; E-Stop Legend

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EBM-02L Banner price in the box on the right side or send a quick quote.

Product Details

Weight
127.00576 g
Country Of Origin
IT
Button Diameter (mm)
40
Contact Rating
2 A @ 30 V dc
Dimensions (HxWxD mm )
93 x 40
Max Operating Temperature ( °C)
60
Actuator/Button Material
Thermoplastic
Min Operating Temperature ( °C)
-25
Mounting Thread/Style
22 mm
Button Shroud
No
Contact Quantity
2 NC
Feature: Lockable
No
Primary Housing Material
Polycarbonate
Actuation
Twist-to-Release
Device Type
Push Button
Housing Style
Base
IP Rating
IP65
Connection Type
Screw Terminal

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EBM-02L Description

Banner Engineering SSA-EBM-02L is an Emergency STOP (E-Stop) pushbutton designed for critical safety applications. It features a polycarbonate base and a 40mm mushroom head for easy activation. The pushbutton offers a screw-clamp terminal connection for secure wiring and has a yellow and black housing with a red actuator for high visibility. It is equipped with 2NC contacts for safety circuit integration and operates on a 24Vdc supply voltage. Designed for flush mounting in a 22mm hole, this E-Stop pushbutton operates within an ambient air temperature range of -25°C to +60°C. It boasts an IP65 degree of protection against dust and water ingress. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It does not have Normally Open (NO) auxiliary contacts but includes 2 Normally Closed (NC) auxiliary contacts for enhanced safety measures.
