SSA-EBM-02ED1Q4 Banner Emergency Stop Push Buttons

SSA-EBM-02ED1Q4 on Powermatic Associates
Banner

Part#:SSA-EBM-02ED1Q4

Manufacturer:Banner

Alt. Part#:17929

Product Lifecycle:Active

Get a quick Quote!

SSA-EBM-02ED1Q4 OPT E-STP BTN DX80 HSG 4-PIN M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EBM-02ED1Q4 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    IT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EBM-02ED1Q4 Description

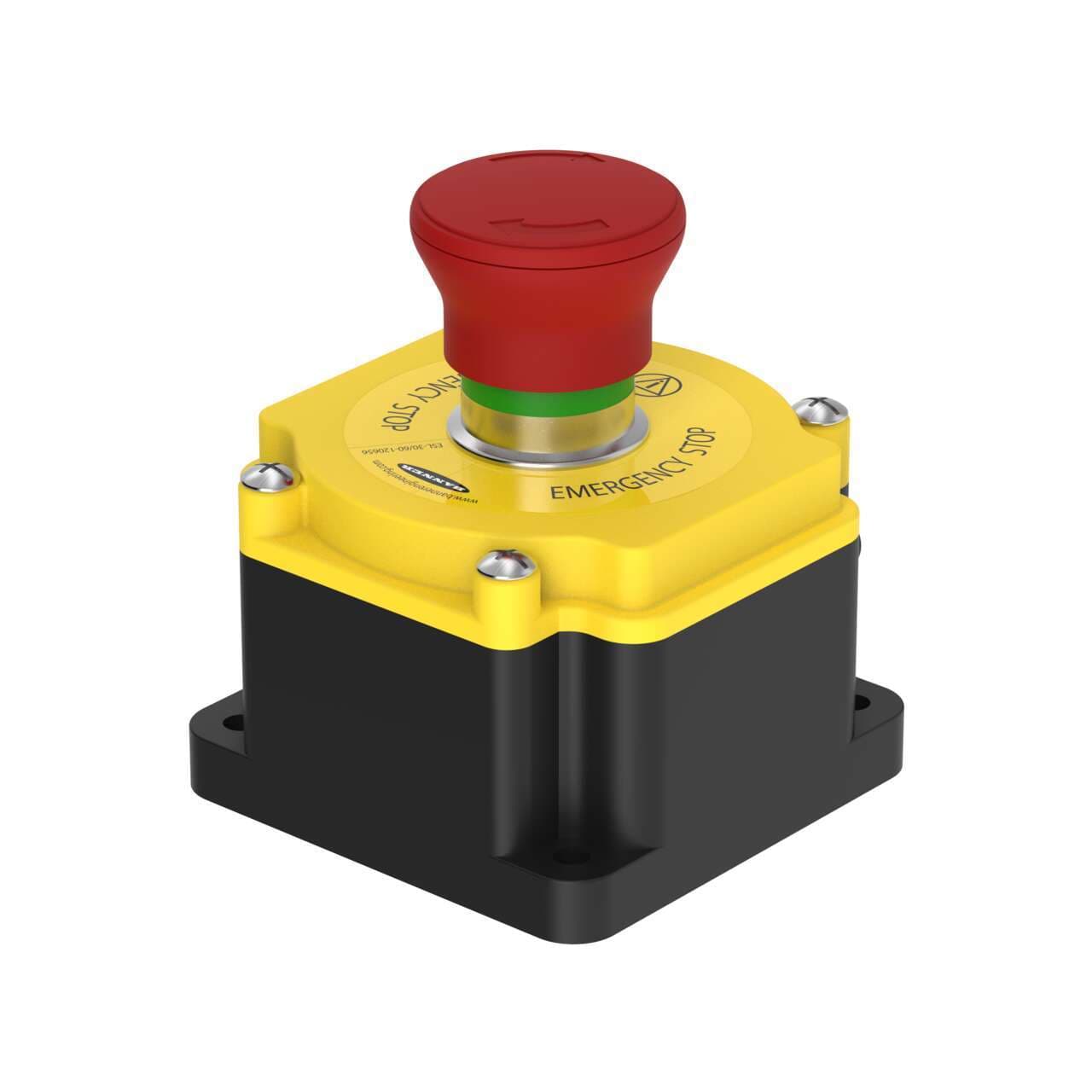

Banner Engineering SSA-EBM-02ED1Q4 is an enclosed emergency STOP (E-Stop) push-button designed with a polycarbonate housing and a 40mm mushroom head. This push-button features a yellow housing with a red actuator and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It has 2NC contacts for its operation, with no Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts. The mounting is facilitated by a square base with 4 screws, and it can operate within an ambient air temperature range of -25°C to +60°C. This device offers a degree of protection of IP65 and operates in a push-to-stop, stay-put (maintained/latched) twist-to-release mode.

Related documents SSA-EBM-02ED1Q4 Specs

SSA-EBM-02ED1Q4 165186.pdf
