SSA-EBM-02EB1Q8OTBB Banner Emergency Stop Push Buttons

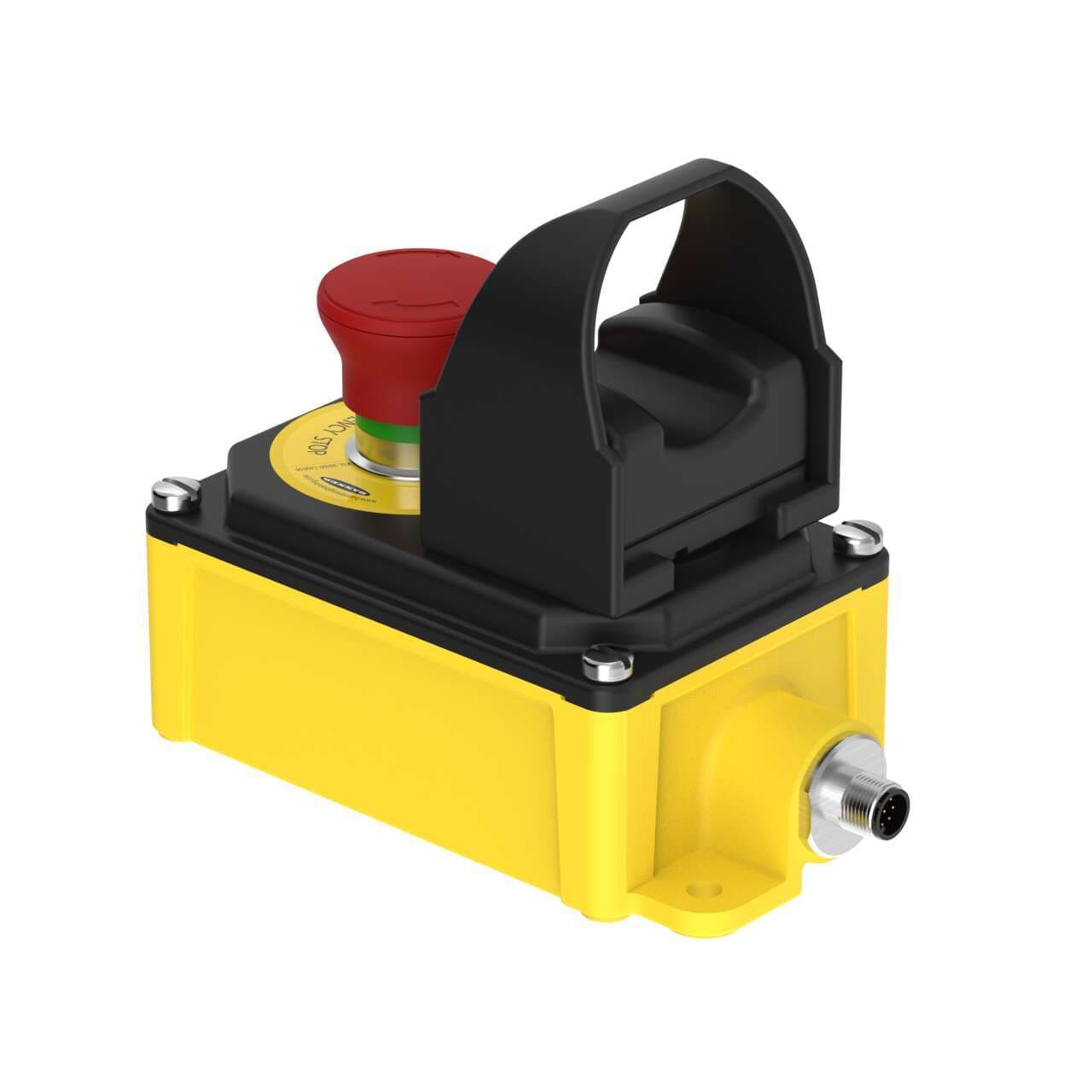

Banner SSA-EBM-02EB1Q8OTBB Banner Engineering SSA-EBM-02EB1Q8OTBB is an enclosed emergency STOP (E-Stop) pushbutton station assembly designed for surface mounting. It features a 40mm mushroom head made from polycarbonate (PC) with a yellow and black housing and a red actuator. This push-button operates with a push-to-stop, stay-put (maintained/latched), and twist-to-release mechanism. It is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for connectivity. The device includes 2NC contacts and supports a supply voltage of 24Vdc. It offers two digital outputs (12-30Vdc; NO; PNP) and operates within an ambient air temperature range of -25°C to +50°C. The SSA-EBM-02EB1Q8OTBB has a degree of protection rated at IP50 and does not include Normally Open (NO) auxiliary contacts but has 2 Normally Closed (NC) auxiliary contacts.
Banner

Part#:SSA-EBM-02EB1Q8OTBB

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering SSA-EBM-02EB1Q8OTBB is an enclosed emergency STOP (E-Stop) pushbutton station assembly designed for surface mounting. It features a 40mm mushroom head made from polycarbonate (PC) with a yellow and black housing and a red actuator. This push-button operates with a push-to-stop, stay-put (maintained/latched), and twist-to-release mechanism. It is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for connectivity. The device includes 2NC contacts and supports a supply voltage of 24Vdc. It offers two digital outputs (12-30Vdc; NO; PNP) and operates within an ambient air temperature range of -25°C to +50°C. The SSA-EBM-02EB1Q8OTBB has a degree of protection rated at IP50 and does not include Normally Open (NO) auxiliary contacts but has 2 Normally Closed (NC) auxiliary contacts.

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EBM-02EB1Q8OTBB Banner price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EBM-02EB1Q8OTBB Description

Banner Engineering SSA-EBM-02EB1Q8OTBB is an enclosed emergency STOP (E-Stop) pushbutton station assembly designed for surface mounting. It features a 40mm mushroom head made from polycarbonate (PC) with a yellow and black housing and a red actuator. This push-button operates with a push-to-stop, stay-put (maintained/latched), and twist-to-release mechanism. It is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for connectivity. The device includes 2NC contacts and supports a supply voltage of 24Vdc. It offers two digital outputs (12-30Vdc; NO; PNP) and operates within an ambient air temperature range of -25°C to +50°C. The SSA-EBM-02EB1Q8OTBB has a degree of protection rated at IP50 and does not include Normally Open (NO) auxiliary contacts but has 2 Normally Closed (NC) auxiliary contacts.
