SSA-EB2PLXR-12ED1Q8 Banner Emergency Stop Push Buttons

SSA-EB2PLXR-12ED1Q8 on Powermatic Associates
Banner
  • SSA-EB2PLXR-12ED1Q8
  • SSA-EB2PLXR-12ED1Q8

Part#:SSA-EB2PLXR-12ED1Q8

Alt. Part#:87274

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop: Flush Mount 60 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux.; 8-pin M12 QD

Product Details

  • Weight
    430.9124 g
  • Country Of Origin
    JP
  • Feature: Quick Disconnect
    Yes
  • Max Operating Temperature ( °C)
    55
  • Stop Signal Color ( Solid)
    Red
  • Button Diameter (mm)
    60
  • Actuator/Button Material
    Thermoplastic
  • Min Operating Temperature ( °C)
    -25
  • Contact Rating
    2 A @ 24 V dc
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Mounting Thread/Style
    Flat
  • Contact Quantity
    2 NC, 1 NO
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • In-Series Diagnostics
    No
  • Primary Housing Material
    Polycarbonate
  • Device Type
    Push Button
  • Housing Style
    Base
  • Illumination Type
    Base
  • Button Shroud
    No
  • IP Rating
    IP65
  • Connection Type
    M12 (Euro)
  • Actuated Color
    Red - Flash
  • Armed Color (Solid)
    OFF

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB2PLXR-12ED1Q8 on Powermatic Associates is $241.00. Order now.

About the product

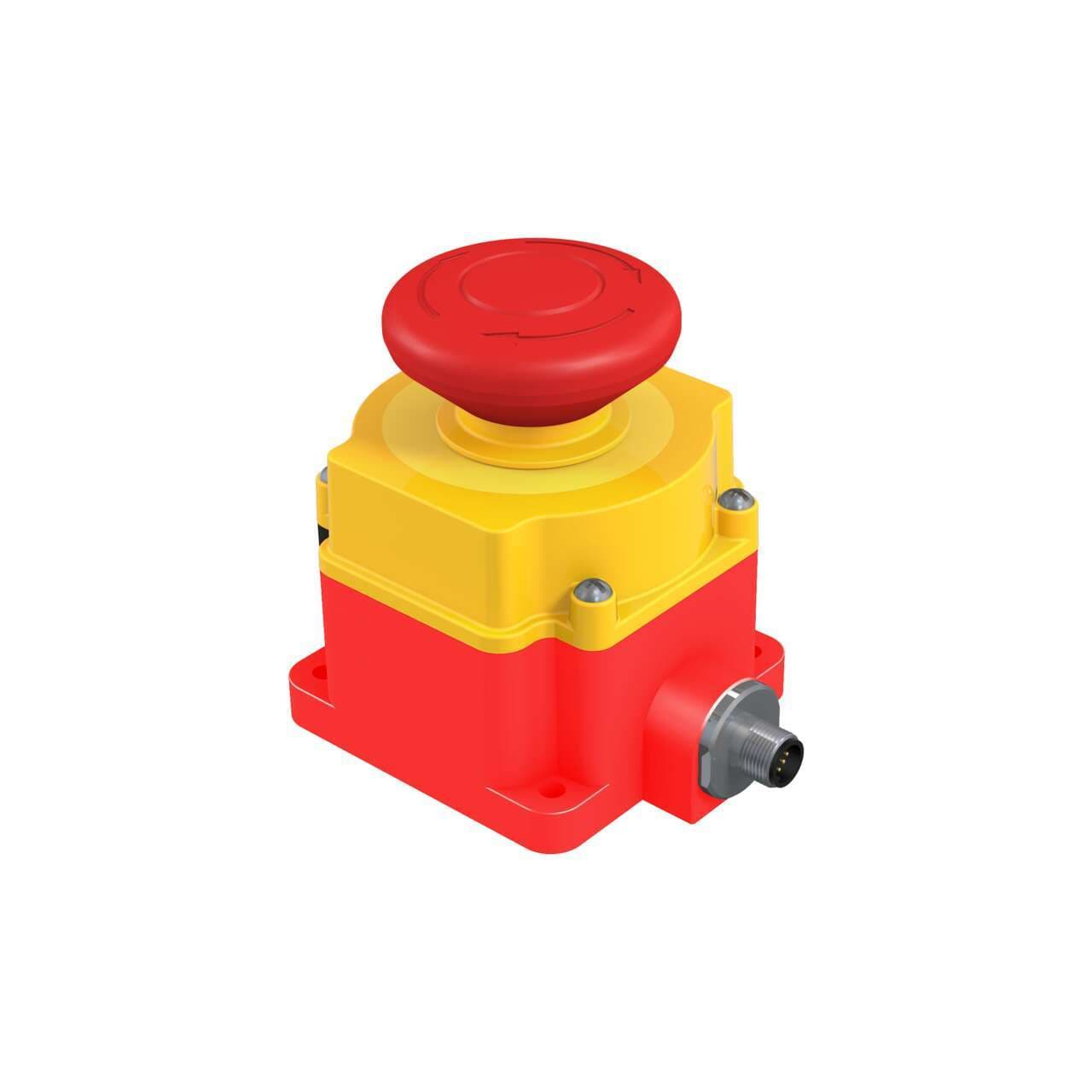

Banner Engineering SSA-EB2PLXR-12ED1Q8 is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a flashing red illuminated base LED when the button is pushed to the ON position. It is constructed with a polycarbonate housing and has a 60mm mushroom head for easy activation. This push-button is designed for emergency stop functions and comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow, and the actuator is red, providing clear visual cues for operation. It includes 1 Normally Open (NO) and 2 Normally Closed (NC) contacts, supporting a supply voltage of 24Vdc. The SSA-EB2PLXR-12ED1Q8 is mounted via a square base with 4 screws and can operate in ambient air temperatures ranging from -25°C to +60°C. It offers a degree of protection of IP65, making it suitable for various industrial environments. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism, featuring 1 NO auxiliary contact and 2 NC auxiliary contacts for enhanced functionality.

SSA-EB2PLXR-12ED1Q8 Related Documents

165998.pdf
