SSA-EB1PS1-02-A01 Banner Emergency Stop Push Buttons

SSA-EB1PS1-02-A01 on Powermatic Associates
Banner

Part#:SSA-EB1PS1-02-A01

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Alt. Part#:811876

Product Lifecycle:Active

Get a quick Quote!

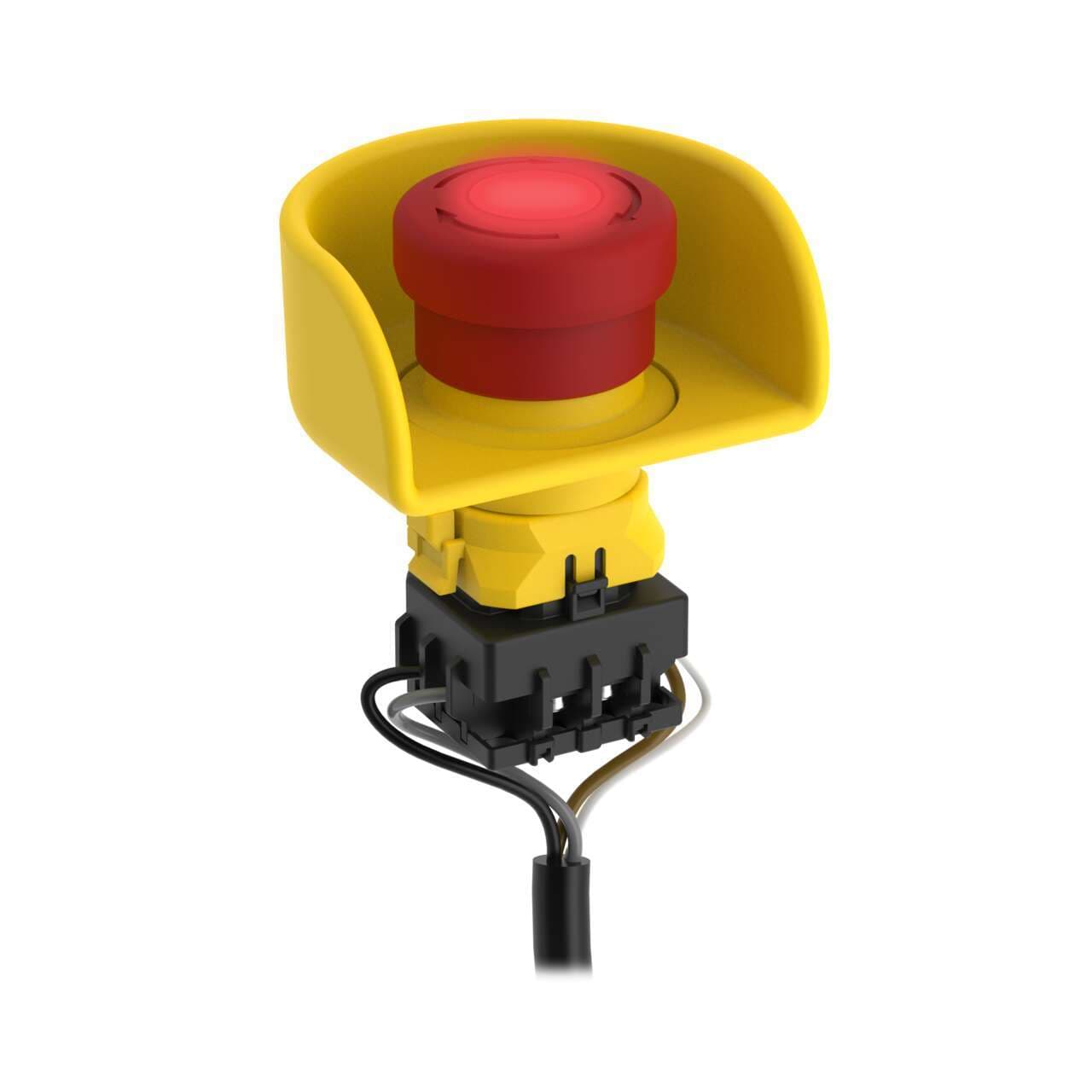

SSA-EB1 Panel-mount Emergency Stop Push Button; ISD Connect Compatible; 40 mm Actuator; Contacts: 2NC; M12 Integral QD Pigtail; 30 mm Mounting Hole; ESC-1-YW Button Shroud Included

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PS1-02-A01 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    60
  • Actuator/Button Material
    Thermoplastic
  • Button Diameter (mm)
    40
  • Dimensions (HxWxD mm )
    81 x 37 x 40
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Panel
  • Min Operating Temperature ( °C)
    -25
  • Contact Quantity
    2 NC
  • Primary Housing Material
    Polycarbonate
  • Feature: Lockable
    No
  • Button Shroud
    Yes
  • Device Type
    Push Button
  • Connection Type
    M12 (Euro)
  • Actuation
    Twist/Pull-to-Release
  • Housing Style
    Base
  • ISD Connect Compatible
    Yes
  • IP Rating
    IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PS1-02-A01 Description

SSA-EB1 Panel-mount Emergency Stop Push Button, ISD Connect Compatible, 40 mm Actuator, Contacts: 2NC, M12 QD Pigtail; 30 mm Mounting Hole, ESC-1-YW Button Shroud Included

Related documents SSA-EB1PS1-02-A01 Specs

SSA-EB1PS1-02-A01 220680.pdf
