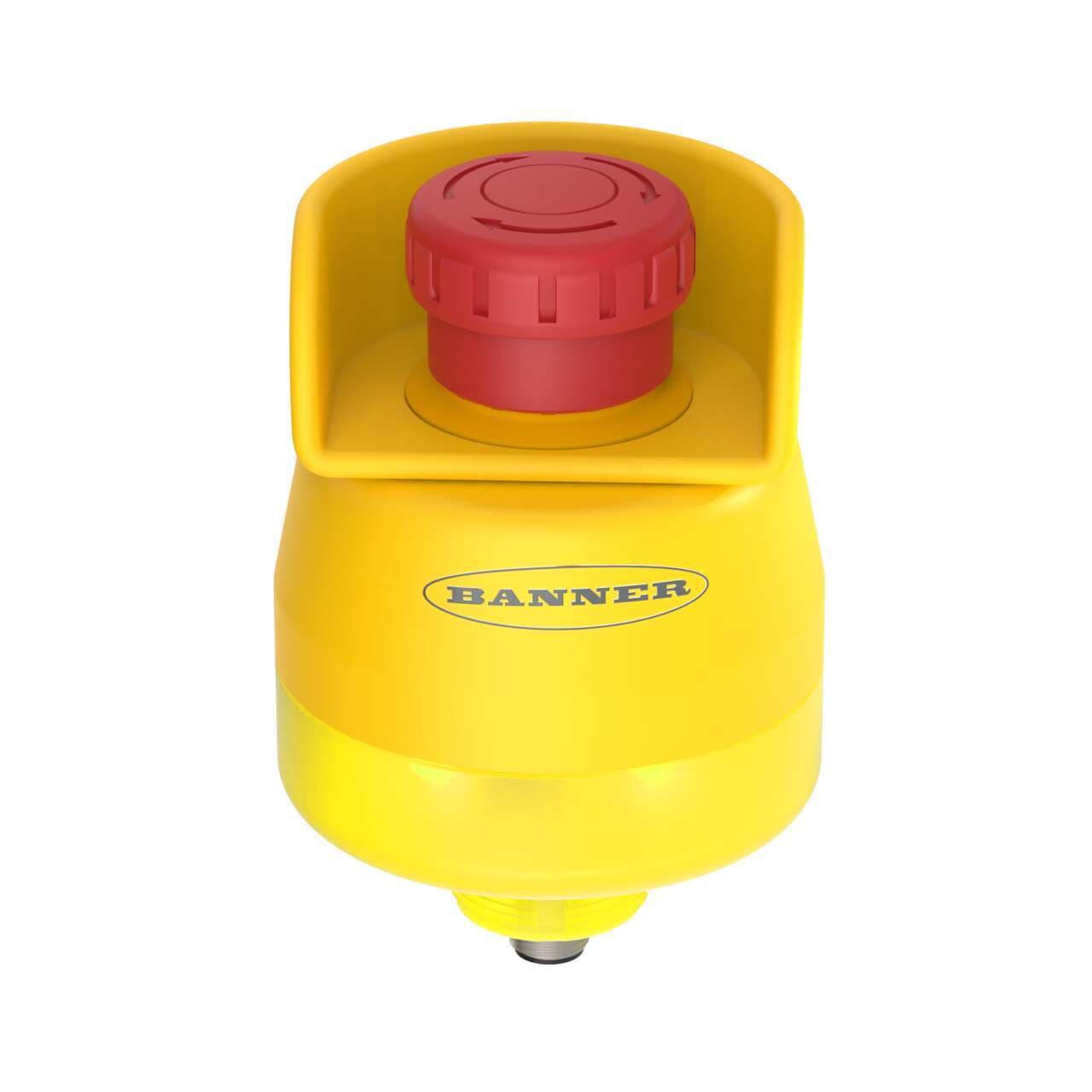

SSA-EB1PLYRS1-12ECQ8 Banner Emergency Stop Push Buttons
Part#:SSA-EB1PLYRS1-12ECQ8
Alt. Part#:812408
Manufacturer:Banner
Category:Emergency Stop Push Buttons
Product Lifecycle:Active
Product description
SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow, Red Solid/Flashing Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC/1 NO-PNP; 8-pin M12 QD; ESC-1-YW Button Shroud Installed
Product Details
- Weight 317.5144 g
- Country Of Origin JP
- Button Shroud Yes
- Dimensions (HxWxD mm ) 120 x 80
- Mounting Thread/Style 30 mm
- Button Diameter (mm) 40
- Max Operating Temperature ( °C) 55
- Actuator/Button Material Thermoplastic
- Min Operating Temperature ( °C) -25
- Stop Signal Color ( Solid) Red
- Feature: Illuminated Yes
- Contact Rating 2 A @ 24 V dc
- Feature: Lockable No
- Contact Quantity 2 NC
- Actuation Twist/Pull-to-Release
- Housing Style Base
- Device Type Push Button
- Primary Housing Material Polycarbonate
- Illumination Type Base
- Actuated Color Red - Flash
- Armed Color (Solid) Yellow
- Connection Type M12 (Euro)
- IP Rating IP65
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PLYRS1-12ECQ8 on Powermatic Associates is $284.00. Order now.
About the product
SSA-EB1 30 mm Mount Emergency Stop Push Button, Yellow, Red Solid/Flashing Illuminated Base, 40 mm Actuator, IP65; Contacts: 2 NC/1 NO-PNP; M12 8-pin QD, ESC-1-YW Button Shroud Installed
