SSA-EB1PLYR-12ECQ8 Banner Emergency Stop Push Buttons

SSA-EB1PLYR-12ECQ8 on Powermatic Associates
Banner

Part#:SSA-EB1PLYR-12ECQ8

Manufacturer:Banner

Alt. Part#:25304

Product Lifecycle:Active

Get a quick Quote!

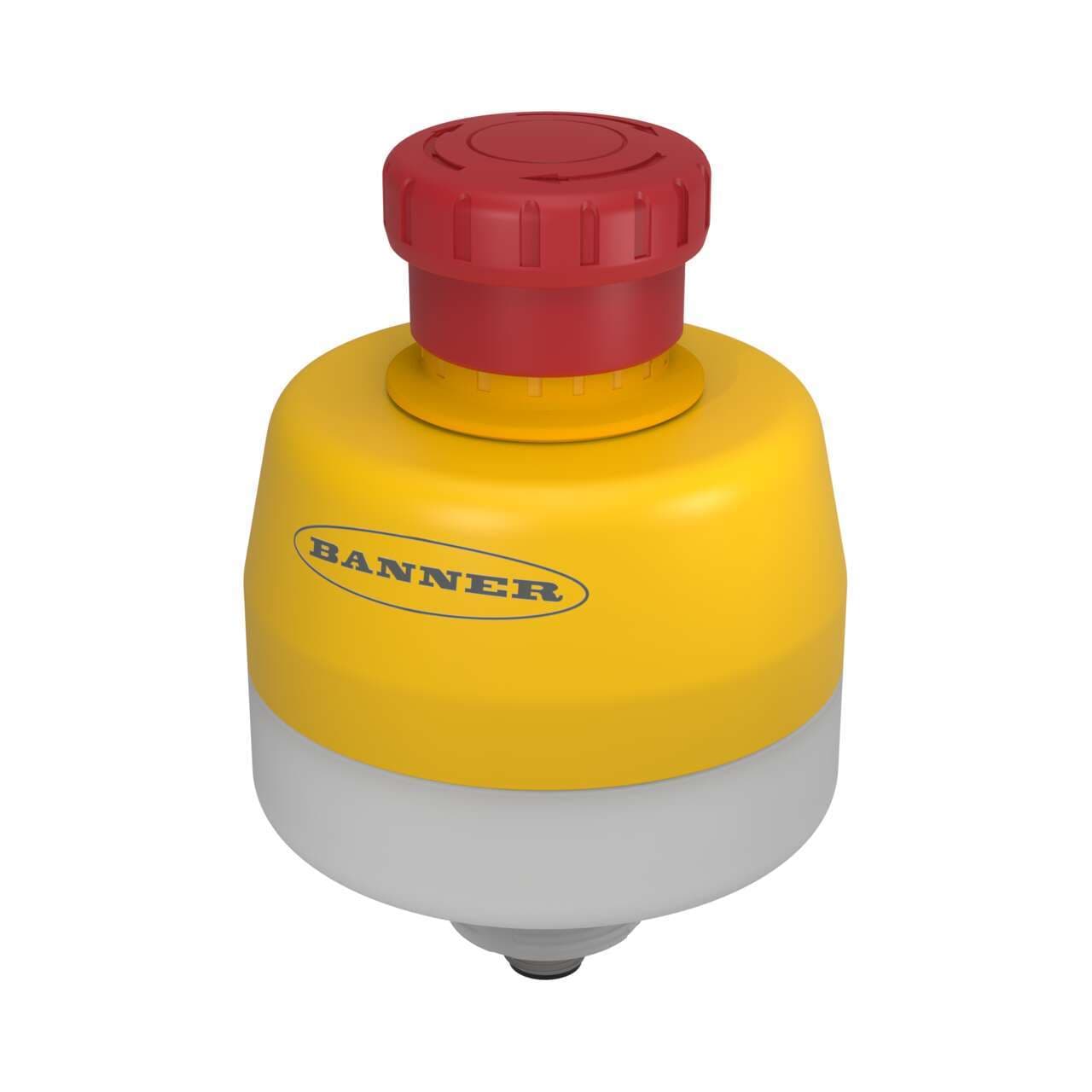

SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow, Red Solid/Flashing Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC/1 NO-PNP; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLYR-12ECQ8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    JP
  • Dimensions (HxWxD mm )
    120 x 80
  • Max Operating Temperature ( °C)
    55
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Mounting Thread/Style
    30 mm
  • Feature: Lockable
    No
  • Button Diameter (mm)
    40
  • Min Operating Temperature ( °C)
    -25
  • Contact Rating
    2 A @ 24 V dc
  • Contact Quantity
    2 NC
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • In-Series Diagnostics
    No
  • Housing Style
    Base
  • Device Type
    Push Button
  • Connection Type
    M12 (Euro)
  • Primary Housing Material
    Polycarbonate
  • Actuated Color
    Red - Flash
  • IP Rating
    IP65
  • Illumination Type
    Base
  • Armed Color (Solid)
    Yellow
  • Button Shroud
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLYR-12ECQ8 Description

Banner Engineering SSA-EB1PLYR-12ECQ8 is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a solid yellow (ARMED) or flashing red (button pushed ON) illuminated base for enhanced visibility. This E-Stop push-button is designed with a hygienic, ECOLAB compliant LED illumination, suitable for various applications. It is constructed with a polycarbonate (PC) base and has a 40mm mushroom head for easy activation. The device comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow, and the actuator is red, providing clear visual cues for operation status. It includes 1NO+2NC contacts for connectivity, operates within a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal), and can be mounted via surface or base with an M30 thread. The SSA-EB1PLYR-12ECQ8 is designed to operate in ambient air temperatures ranging from -25°C to +60°C and offers a degree of protection rated at IP65 and IP67, ensuring durability in various environmental conditions. Its operating mode is push-to-stop stay-put (maintained/latched) with a twist-to-release mechanism, featuring 1 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for versatile application use.

Related documents SSA-EB1PLYR-12ECQ8 Specs

SSA-EB1PLYR-12ECQ8 162754.pdf
