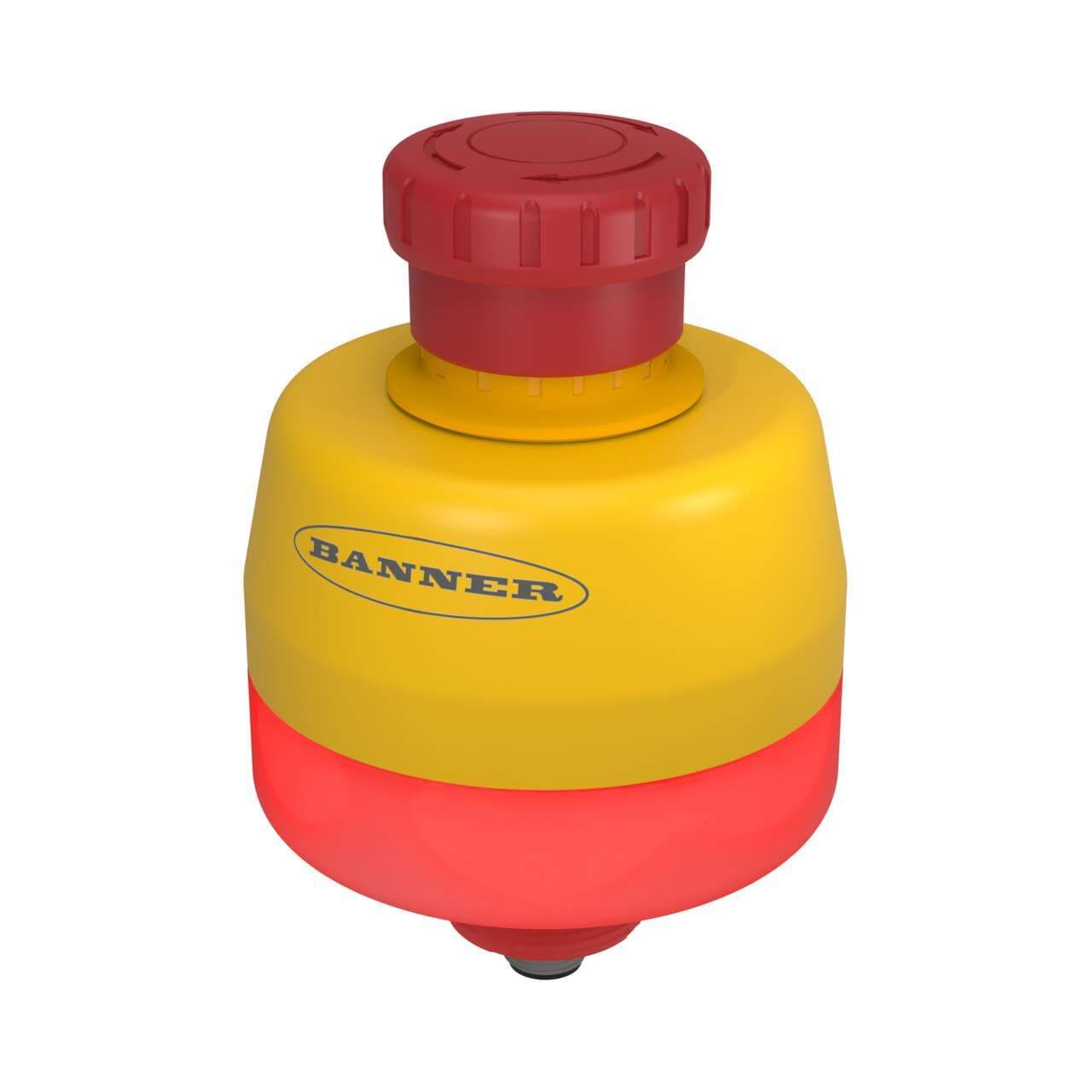

SSA-EB1PLYR-0DECQ8R Banner Emergency Stop Push Buttons

Name: SSA-EB1PLYR-0DECQ8R
Brand: Banner
Price: 251 USD
Availability: BackOrder

SSA-EB1PLYR-0DECQ8R on Powermatic Associates

Part#:SSA-EB1PLYR-0DECQ8R

Alt. Part#:809267

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button; Illuminated Color: Yellow/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; Local Reset Input

Product Details

Weight
299.37072 g
Country Of Origin
JP
Max Operating Temperature ( °C)
50
Actuator/Button Material
Thermoplastic
Min Operating Temperature ( °C)
-25
Button Diameter (mm)
40
Contact Quantity
2 NC OSSD
Mounting Thread/Style
30 mm
Feature: Lockable
No
Actuation
Twist-to-Release
Feature: Illuminated
Yes
Primary Housing Material
Polycarbonate
Device Type
Push Button
Contact Rating
24 V dc @ 0.1 A each
In-Series Diagnostics
Yes
Dimensions (HxWxD mm )
120 x 80
Housing Style
Base
Connection Type
M12 (Euro)
Button Shroud
No
Illumination Type
Base

Actuated Color

Red - Flash

IP Rating

IP65

Armed Color (Solid)

Yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PLYR-0DECQ8R on Powermatic Associates is $251.00. Order now.

About the product

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button, Illuminated Color: Yellow/Red Flashing, 2 N.C. OSSD Safety Contacts, IP65, 8 Pin Euro-style Quick-Disconnect Connector, Local Reset Input
