SSA-EB1PLYR-02ED1Q5B Banner Emergency Stop Push Buttons

SSA-EB1PLYR-02ED1Q5B on Powermatic Associates
Banner
  • SSA-EB1PLYR-02ED1Q5B
  • SSA-EB1PLYR-02ED1Q5B

Part#:SSA-EB1PLYR-02ED1Q5B

Alt. Part#:30028

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Yellow, Red Flashing; 2 N.C. Safety Contacts; Siemens ET200Pro; 5-pin M12 QD

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    JP
  • Button Diameter (mm)
    40
  • Max Operating Temperature ( °C)
    55
  • Actuator/Button Material
    Thermoplastic
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Flat
  • Min Operating Temperature ( °C)
    -25
  • Contact Quantity
    2 NC
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • In-Series Diagnostics
    No
  • Housing Style
    Base
  • IP Rating
    IP65
  • Connection Type
    M12 (Euro)
  • Primary Housing Material
    Polycarbonate
  • Illumination Type
    Base
  • Device Type
    Push Button
  • Armed Color (Solid)
    Yellow
  • Button Shroud
    No
  • Actuated Color
    Red - Flash

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PLYR-02ED1Q5B on Powermatic Associates is $245.00. Order now.

About the product

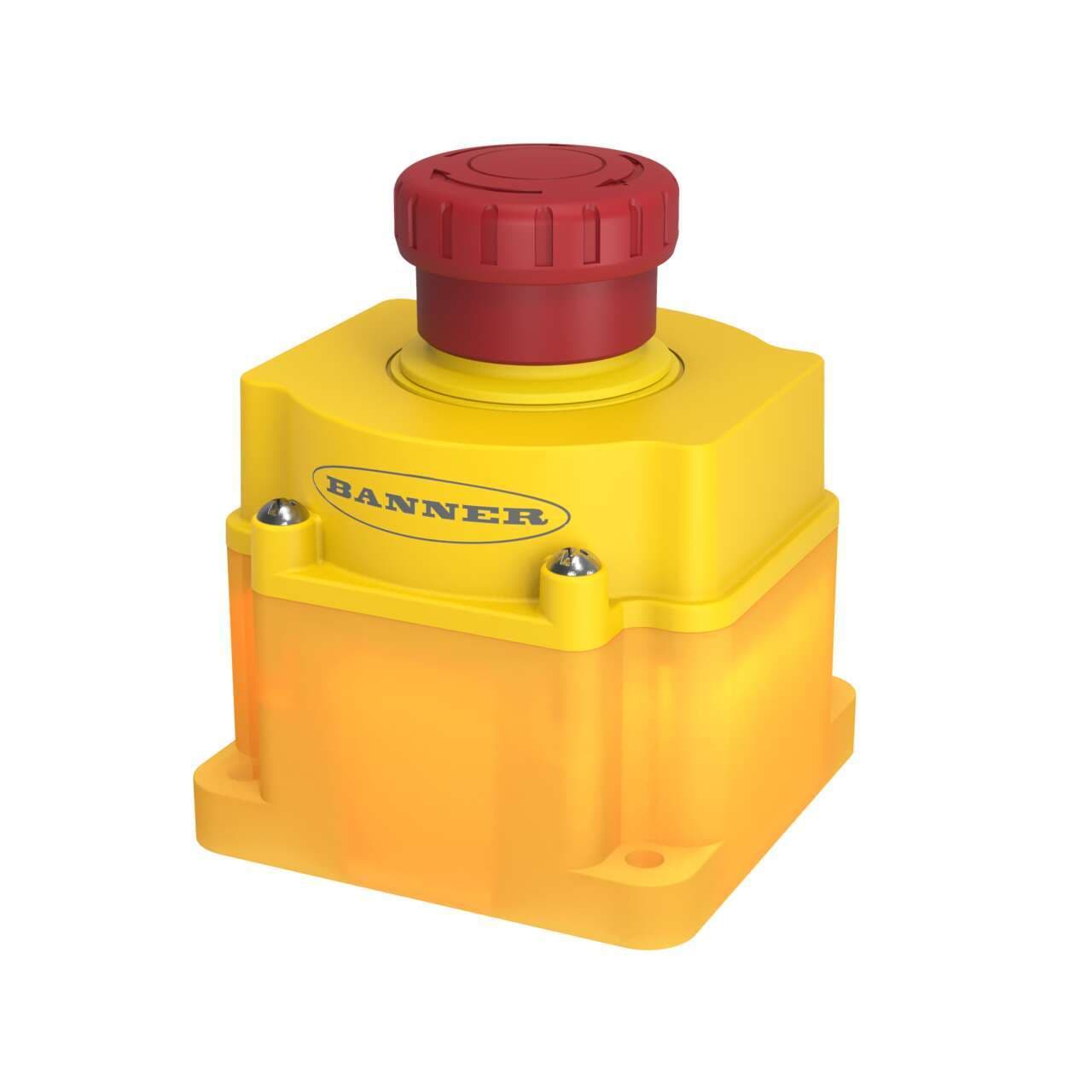

Banner Engineering SSA-EB1PLYR-02ED1Q5B is an enclosed illuminated emergency STOP push-button featuring a solid yellow (ARMED) / flashing red (button pushed ON) illuminated base for safety BUS node compatibility (CH1; pins 1; pins 4 / CH2; pins 2; pins 5) with LED illumination. This E-Stop push-button is constructed with a polycarbonate housing and has a 40mm mushroom head. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is yellow, and the actuator is red. It includes 2NC contacts for its operation, requires a 24Vdc supply voltage, and can be mounted on a square base using 4 screws. The operating temperature range is from -25°C to +60°C. It offers an IP65 degree of protection against dust and water. The operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.
