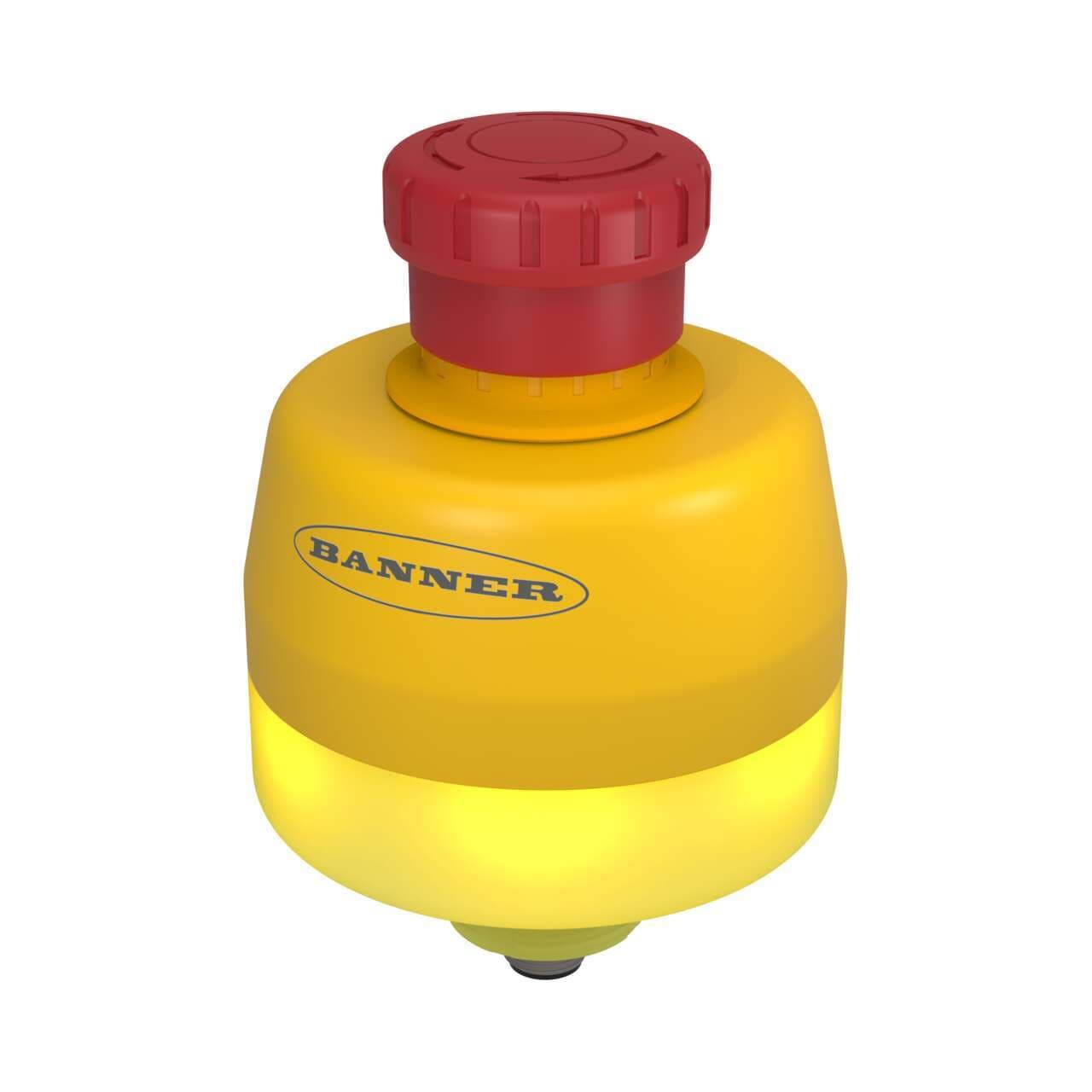

SSA-EB1PLYR-02ECQ5B Banner Emergency Stop Push Buttons

Name: SSA-EB1PLYR-02ECQ5B
Brand: Banner

Banner SSA-EB1PLYR-02ECQ5B SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow, Red Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5

Part#:SSA-EB1PLYR-02ECQ5B

Manufacturer:Banner

Alt. Part#:26267

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow, Red Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLYR-02ECQ5B Banner price in the box on the right side or send a quick quote.

Product Details

Weight
299.37072 g
Country Of Origin
JP
Button Diameter (mm)
40
Max Operating Temperature ( °C)
55
Feature: Illuminated
Yes
Actuated Color
Red
Actuator/Button Material
Thermoplastic
Min Operating Temperature ( °C)
-25
Contact Rating
2 A @ 24 V dc
Mounting Thread/Style
30 mm
Contact Quantity
2 NC, 1 NO
Dimensions (HxWxD mm )
120 x 80
Feature: Lockable
No
Actuation
Twist/Pull-to-Release
In-Series Diagnostics
No
Connection Type
M12 (Euro)
Housing Style
Base
Device Type
Push Button
Primary Housing Material
Polycarbonate
Illumination Type
Base

IP Rating

IP65

Button Shroud

Armed Color (Solid)

Yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLYR-02ECQ5B Description

Banner Engineering SSA-EB1PLYR-02ECQ5B is an enclosed illuminated emergency STOP (E-Stop) pushbutton featuring a solid yellow (ARMED) / flashing red (button pushed ON) illuminated base for safety BUS node compatibility (CH1; pins 1; pins 4 / CH2; pins 2; pins 5) with LED illumination. This push-button is constructed with a polycarbonate housing and has a 40mm mushroom head diameter. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is yellow, and the actuator is red. It includes 2NC contacts for its operation, requires a 24Vdc supply voltage, and can be mounted via surface or base with an M30 thread. The SSA-EB1PLYR-02ECQ5B operates within an ambient air temperature range of -25°C to +55°C and offers a degree of protection rated at IP65 and IP67. Its operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.
