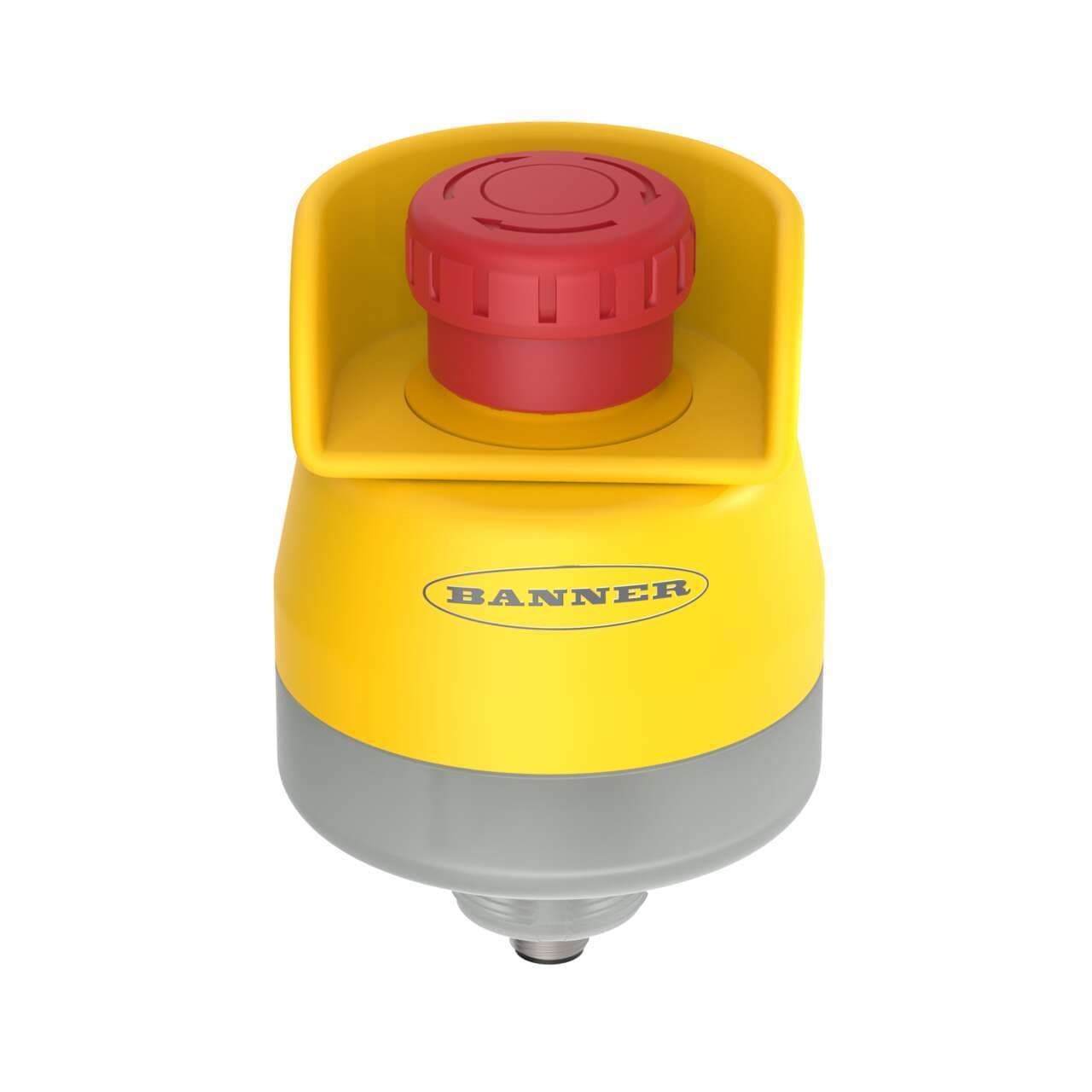

SSA-EB1PLXYS1-02ECQ5B Banner Emergency Stop Push Buttons

Banner SSA-EB1PLXYS1-02ECQ5B SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow-Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5; ESC-1-YW Button Shroud Installed
Banner

Part#:SSA-EB1PLXYS1-02ECQ5B

Manufacturer:Banner

Alt. Part#:811878

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Yellow-Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5; ESC-1-YW Button Shroud Installed

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLXYS1-02ECQ5B Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    317.5144 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Actuation
    Twist/Pull-to-Release
  • Button Shroud
    Yes
  • Actuator/Button Material
    Thermoplastic
  • Min Operating Temperature ( °C)
    -25
  • Button Diameter (mm)
    40
  • Mounting Thread/Style
    30 mm
  • Dimensions (HxWxD mm )
    120 x 80
  • Contact Quantity
    2 NC
  • Contact Rating
    2 A @ 24 V dc
  • Feature: Illuminated
    Yes
  • Connection Type
    M12 (Euro)
  • Illumination Type
    Base
  • Feature: Lockable
    No
  • Armed Color (Solid)
    OFF
  • Primary Housing Material
    Polycarbonate
  • Actuated Color
    Yellow - Flash
  • Housing Style
    Base
  • Device Type
    Push Button
  • IP Rating
    IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLXYS1-02ECQ5B Description

SSA-EB1 30 mm Mount Emergency Stop Push Button, Yellow-Flash Illuminated Base; 40 mm Actuator, IP65; Contacts: 2 NC; M12 5-pin QD, Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5, ESC-1-YW Button Shroud Installed

Related documents SSA-EB1PLXYS1-02ECQ5B Specs

SSA-EB1PLXYS1-02ECQ5B 164714.pdf
