SSA-EB1PLXR-12ED1Q8 Banner Emergency Stop Push Buttons

SSA-EB1PLXR-12ED1Q8 on Powermatic Associates
Banner
  • SSA-EB1PLXR-12ED1Q8
  • SSA-EB1PLXR-12ED1Q8

Part#:SSA-EB1PLXR-12ED1Q8

Alt. Part#:29988

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop: Flush Mount 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD

Product Details

  • Weight
    426.37648 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Min Operating Temperature ( °C)
    -25
  • Feature: Lockable
    No
  • Contact Quantity
    2 NC, 1 NO
  • In-Series Diagnostics
    No
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Flat
  • Actuation
    Twist/Pull-to-Release
  • Feature: Illuminated
    Yes
  • Button Shroud
    No
  • Housing Style
    Base
  • Primary Housing Material
    Polycarbonate
  • Connection Type
    M12 (Euro)
  • Illumination Type
    Base
  • Device Type
    Push Button
  • IP Rating
    IP65
  • Actuated Color
    Red - Flash
  • Armed Color (Solid)
    OFF

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PLXR-12ED1Q8 on Powermatic Associates is $231.00. Order now.

About the product

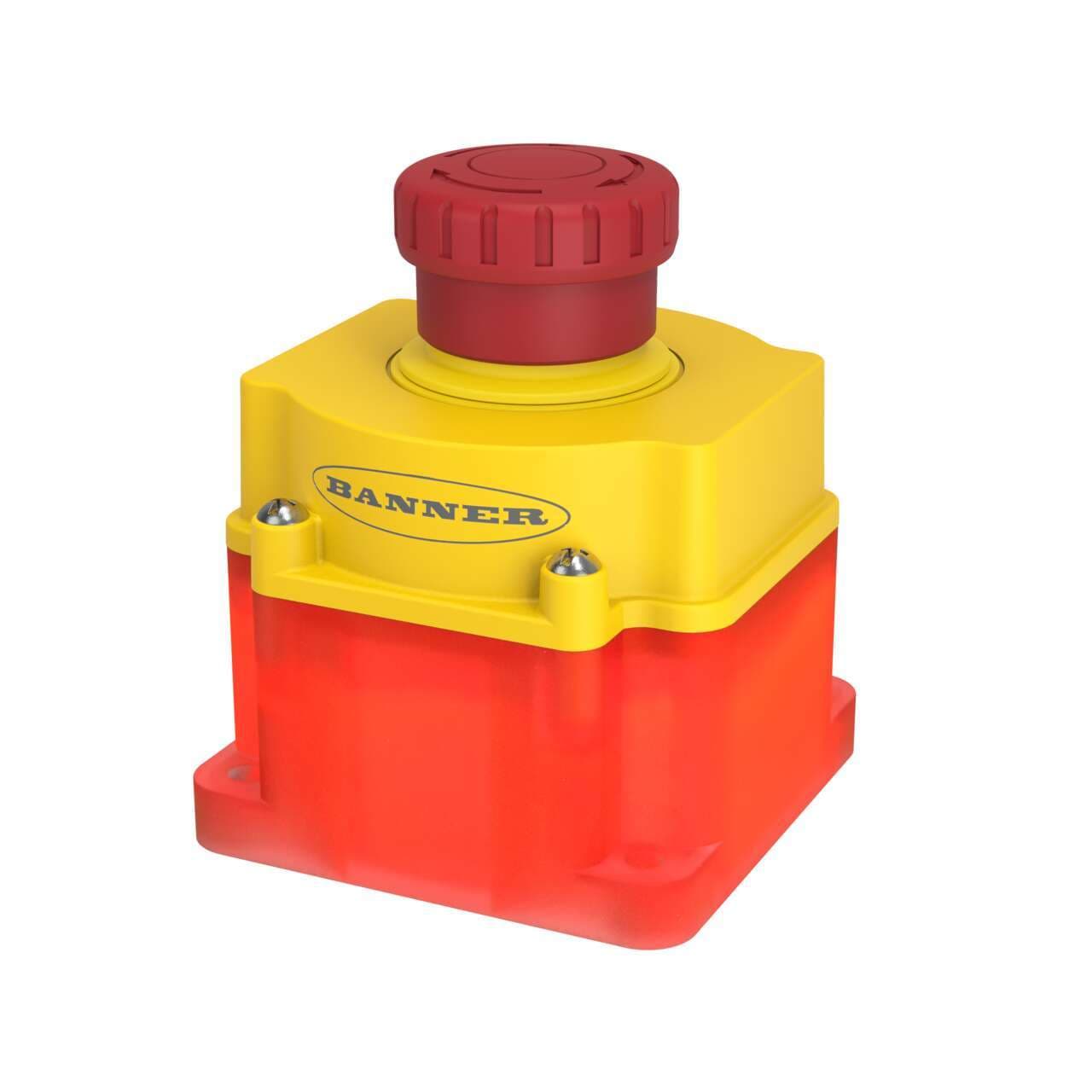

Banner Engineering SSA-EB1PLXR-12ED1Q8 is an enclosed illuminated emergency STOP (E-Stop) pushbutton featuring a flashing red illuminated base when activated. It is designed with a polycarbonate housing and a 40mm mushroom head for easy operation. This push-button is pre-equipped with an 8-pin M12 Euro-style QD connector for straightforward installation. It comes in a yellow housing with a red actuator, ensuring high visibility. The device includes 1NO+2NC contacts for connectivity, operates on a 24Vdc supply voltage, and can be mounted on a square base using 4 screws. It is designed to operate in ambient air temperatures ranging from -25°C to +60°C and offers an IP65 degree of protection against dust and water ingress. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts for enhanced functionality.
