SSA-EB1PLXR-12ECQ8 Banner Emergency Stop Push Buttons

Name: SSA-EB1PLXR-12ECQ8
Brand: Banner
Price: 236 USD
Availability: BackOrder

SSA-EB1PLXR-12ECQ8 on Powermatic Associates

Part#:SSA-EB1PLXR-12ECQ8

Alt. Part#:25305

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

SSA-EB1 30 mm Mount Emergency Stop Push Button; Red Solid/Flashing Illuminated Base; 40 mm Actuator; IP65; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD

Product Details

Weight
299.37072 g
Country Of Origin
JP
Dimensions (HxWxD mm )
120 x 80
Stop Signal Color ( Solid)
Red
Actuator/Button Material
Thermoplastic
Max Operating Temperature ( °C)
55
Mounting Thread/Style
30 mm
Button Diameter (mm)
40
Min Operating Temperature ( °C)
-25
Contact Rating
2 A @ 24 V dc
Contact Quantity
2 NC, 1 NO
Feature: Illuminated
Yes
In-Series Diagnostics
No
Feature: Lockable
No
Primary Housing Material
Polycarbonate
Actuation
Twist/Pull-to-Release
IP Rating
IP65
Housing Style
Base
Device Type
Push Button
Button Shroud
No

Illumination Type

Base

Actuated Color

Red - Flash

Armed Color (Solid)

OFF

Connection Type

M12 (Euro)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PLXR-12ECQ8 on Powermatic Associates is $236.00. Order now.

About the product

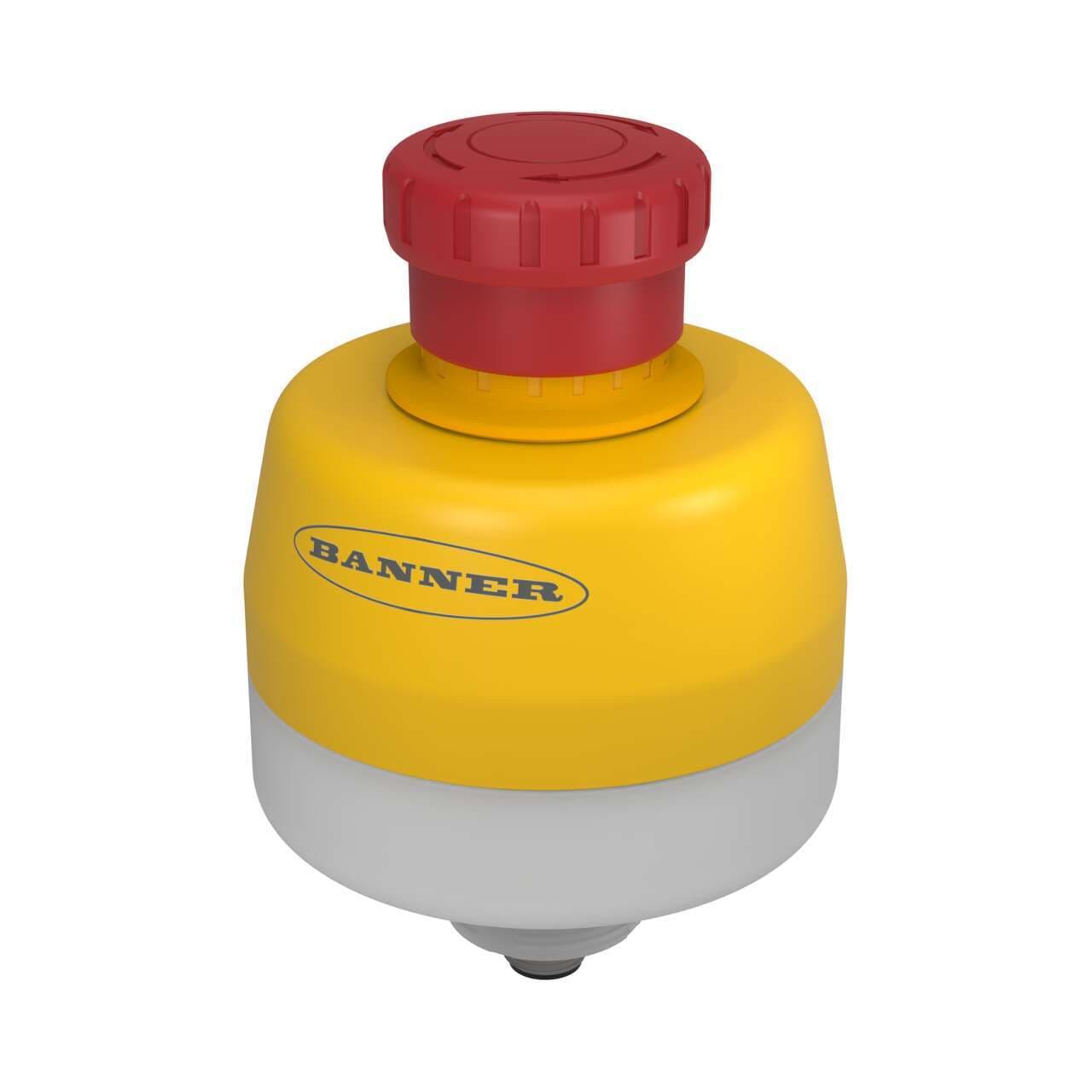

Banner Engineering SSA-EB1PLXR-12ECQ8 is an enclosed illuminated emergency STOP push-button designed with a flashing red illuminated base when activated, compliant with ECOLAB standards for hygiene. This push-button features a polycarbonate base and a 40mm mushroom head for easy activation. It comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow with a red actuator, emphasizing its function as an emergency device. It includes 1NO+2NC contacts for versatile wiring options, supporting a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The SSA-EB1PLXR-12ECQ8 offers surface or base mounting options via an M30 thread and can operate in ambient air temperatures ranging from -25°C to +60°C. It is designed to meet IP65 and IP67 degrees of protection, ensuring durability in various environments. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism, featuring 1 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for comprehensive emergency stop functionality.
