SSA-EB1PLXR-0DED1Q8R Banner Emergency Stop Push Buttons

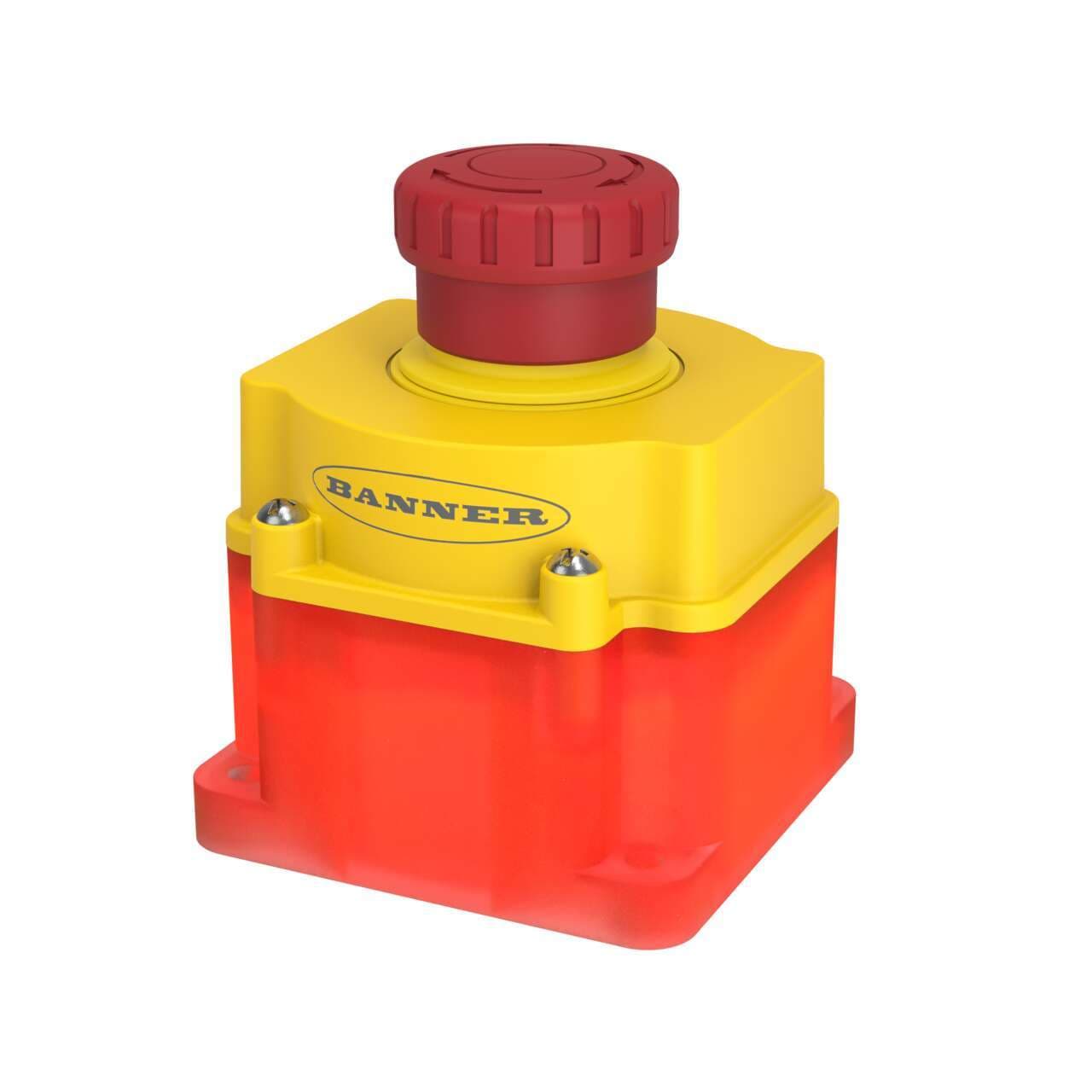

Banner SSA-EB1PLXR-0DED1Q8R Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Off/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; Local Reset Input
Banner

Part#:SSA-EB1PLXR-0DED1Q8R

Manufacturer:Banner

Alt. Part#:809271

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Off/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; Local Reset Input

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLXR-0DED1Q8R Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    421.84056 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    50
  • Actuation
    Twist-to-Release
  • Contact Quantity
    2 NC OSSD
  • In-Series Diagnostics
    Yes
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Mounting Thread/Style
    Flat
  • Feature: Illuminated
    Yes
  • Feature: Lockable
    No
  • Contact Rating
    24 V dc @ 0.1 A each
  • Button Shroud
    No
  • Housing Style
    Base
  • Primary Housing Material
    Polycarbonate
  • IP Rating
    IP65
  • Illumination Type
    Base
  • Device Type
    Push Button
  • Actuated Color
    Red - Flash
  • Armed Color (Solid)
    OFF
  • Connection Type
    M12 (Euro)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLXR-0DED1Q8R Description

Emergency Stop with ISD: Flush Mount 40 mm Push Button, Illuminated Color: Off/Red Flashing, 2 N.C. OSSD Safety Contacts, IP65, 8 Pin Euro-style Quick-Disconnect Connector, Local Reset Input

Related documents SSA-EB1PLXR-0DED1Q8R Specs

SSA-EB1PLXR-0DED1Q8R 215157.pdf
