SSA-EB1PLXR-0DED1Q8 Banner Emergency Stop Push Buttons

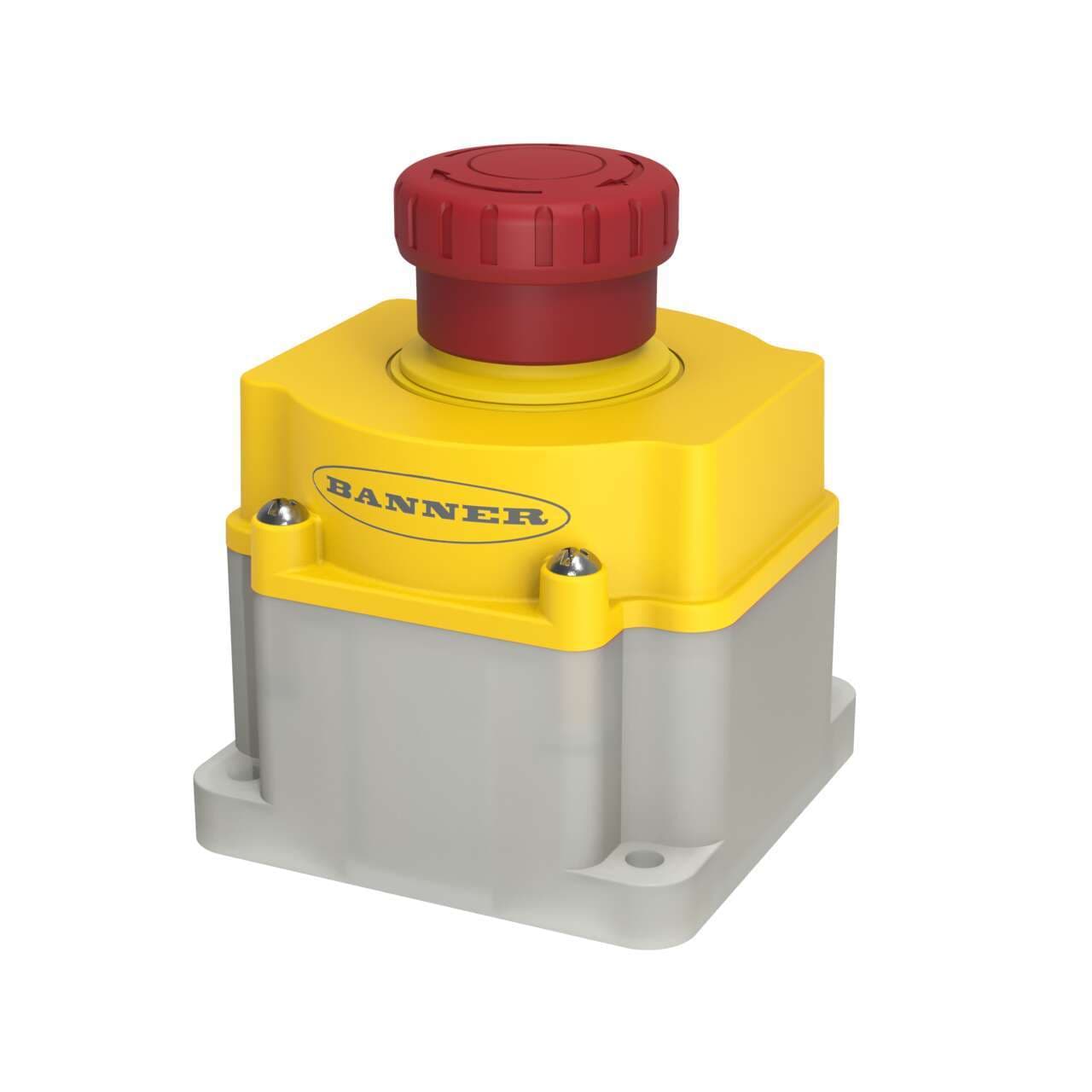

Banner SSA-EB1PLXR-0DED1Q8 Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Off/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD
Banner

Part#:SSA-EB1PLXR-0DED1Q8

Manufacturer:Banner

Alt. Part#:808880

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Off/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLXR-0DED1Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    JP
  • Actuator/Button Material
    Thermoplastic
  • Button Diameter (mm)
    40
  • Max Operating Temperature ( °C)
    50
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Contact Quantity
    2 NC OSSD
  • Contact Rating
    24 V dc @ 0.1 A each
  • Feature: Illuminated
    Yes
  • Actuation
    Twist-to-Release
  • Feature: Lockable
    No
  • IP Rating
    IP65
  • Illumination Type
    Base
  • In-Series Diagnostics
    Yes
  • Button Shroud
    No
  • Mounting Thread/Style
    Flat
  • Housing Style
    Base
  • Device Type
    Push Button
  • Armed Color (Solid)
    OFF
  • Primary Housing Material
    Polycarbonate
  • Actuated Color
    Red - Flash
  • Connection Type
    M12 (Euro)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLXR-0DED1Q8 Description

Emergency Stop with ISD: Flush Mount 40 mm Push Button, Illuminated Color: Off/Red Flashing, 2 N.C. OSSD Safety Contacts, IP65, 8 Pin Euro-style Quick-Disconnect Connector

Related documents SSA-EB1PLXR-0DED1Q8 Specs

SSA-EB1PLXR-0DED1Q8 215157.pdf
