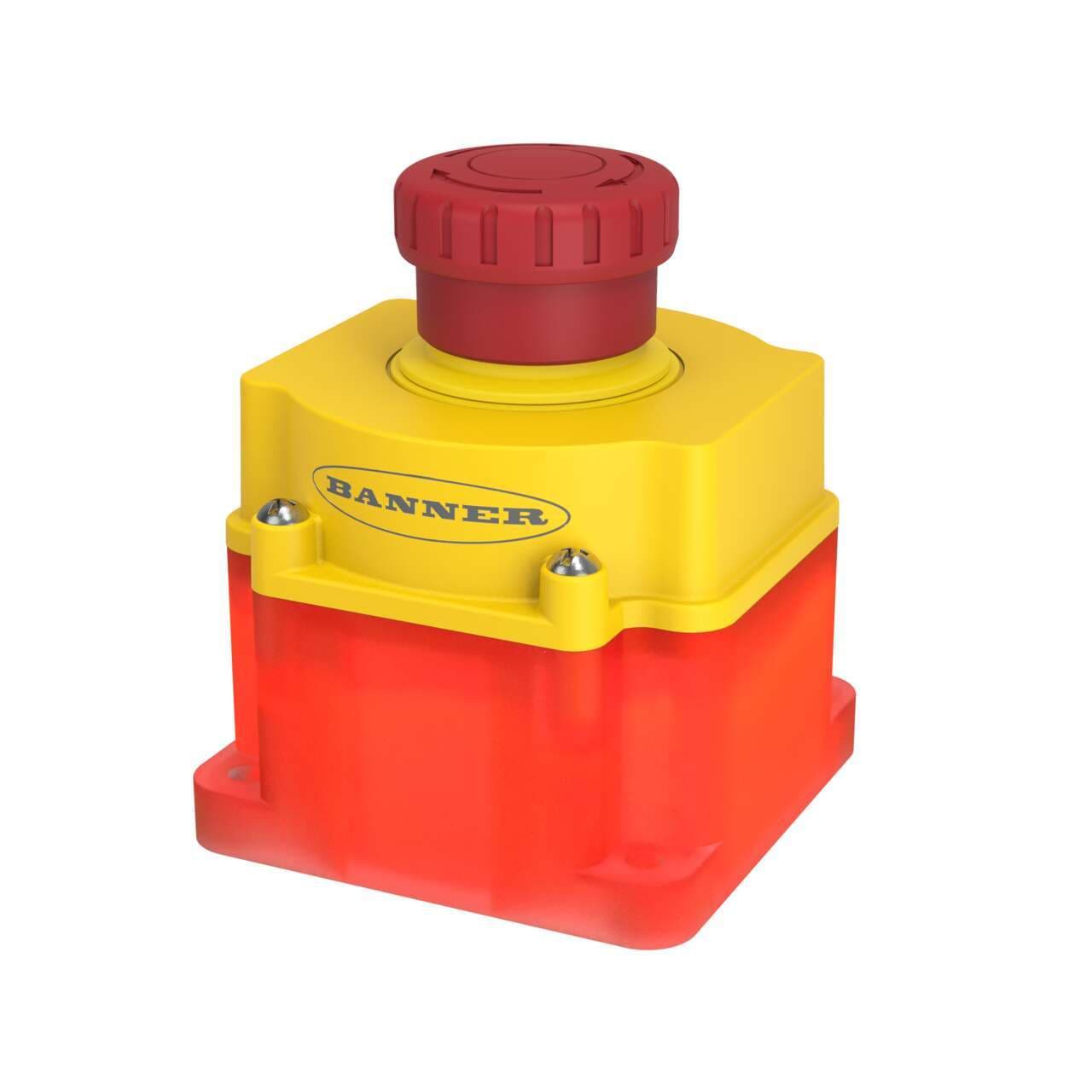

SSA-EB1PLXR-02ED1Q5B Banner Emergency Stop Push Buttons

SSA-EB1PLXR-02ED1Q5B on Powermatic Associates
Banner

Part#:SSA-EB1PLXR-02ED1Q5B

Manufacturer:Banner

Alt. Part#:30020

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Flashing; 2 N.C. Safety Contacts; Siemens ET200Pro; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLXR-02ED1Q5B Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    JP
  • Button Diameter (mm)
    40
  • Max Operating Temperature ( °C)
    55
  • Actuator/Button Material
    Thermoplastic
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Actuation
    Twist/Pull-to-Release
  • Feature: Lockable
    No
  • Button Shroud
    No
  • Primary Housing Material
    Polycarbonate
  • Min Operating Temperature ( °C)
    -25
  • Mounting Thread/Style
    Flat
  • Contact Quantity
    2 NC
  • Contact Rating
    2 A @ 24 V dc
  • Feature: Illuminated
    Yes
  • In-Series Diagnostics
    No
  • IP Rating
    IP65
  • Illumination Type
    Base
  • Device Type
    Push Button
  • Housing Style
    Base
  • Actuated Color
    Red - Flash
  • Connection Type
    M12 (Euro)
  • Armed Color (Solid)
    Blue

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLXR-02ED1Q5B Description

Banner Engineering SSA-EB1PLXR-02ED1Q5B is a push-button designed for emergency stop functions with a flashing red illuminated base when activated, compatible with safety BUS nodes (CH1; pins 1; pins 4 / CH2; pins 2; pins 5). It features LED illumination for clear visibility. The enclosure is made from polycarbonate, ensuring durability, with a 40mm mushroom head for easy operation. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for straightforward installation. The housing is yellow, and the actuator is red, providing a clear indication of its function as an emergency stop. It has 2NC contacts for safety measures, operates on a 24Vdc supply voltage, and can be mounted on a square base using 4 screws. The device is designed to operate in ambient air temperatures ranging from -25°C to +60°C and offers an IP65 degree of protection against dust and water ingress. Its operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.

Related documents SSA-EB1PLXR-02ED1Q5B Specs

SSA-EB1PLXR-02ED1Q5B 165999.pdf
