SSA-EB1PLXR-02ED1Q5A Banner Emergency Stop Push Buttons

Banner SSA-EB1PLXR-02ED1Q5A Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Flashing; 2 N.C. Safety Contacts ; AB ArmorBlock; 5-pin M12 QD
Banner

Part#:SSA-EB1PLXR-02ED1Q5A

Manufacturer:Banner

Alt. Part#:30019

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Flashing; 2 N.C. Safety Contacts ; AB ArmorBlock; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLXR-02ED1Q5A Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Min Operating Temperature ( °C)
    -25
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Feature: Illuminated
    Yes
  • In-Series Diagnostics
    No
  • Feature: Lockable
    No
  • Actuation
    Twist/Pull-to-Release
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Flat
  • Contact Quantity
    2 NC
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base
  • Illumination Type
    Base
  • Button Shroud
    No
  • IP Rating
    IP65
  • Actuated Color
    Red - Flash
  • Connection Type
    M12 (Euro)
  • Armed Color (Solid)
    OFF

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLXR-02ED1Q5A Description

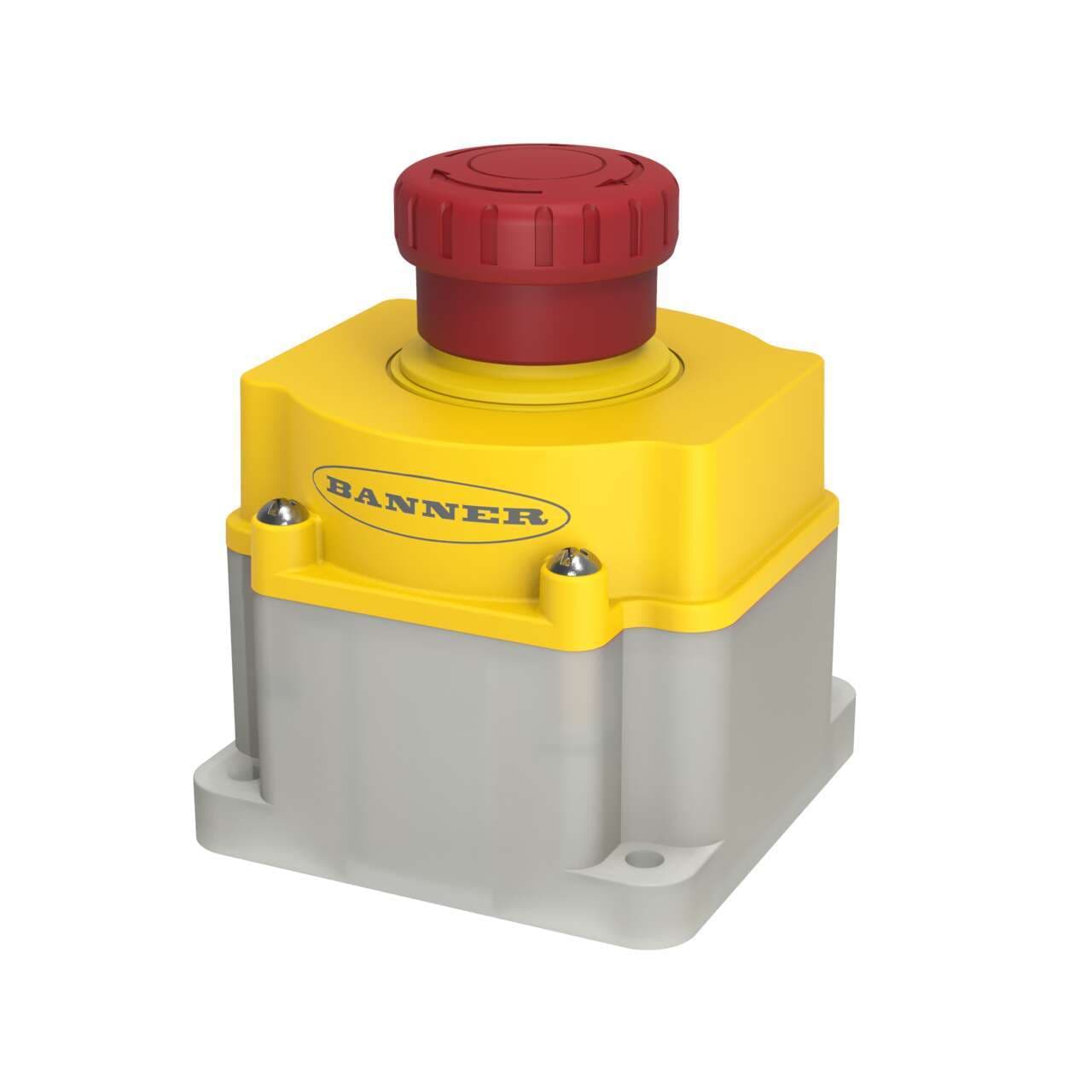

Banner Engineering SSA-EB1PLXR-02ED1Q5A is a push-button emergency stop device featuring a flashing red illuminated base when activated, designed for safety BUS node compatibility with connections on CH1 (pins 1 and 2) and CH2 (pins 4 and 5). It incorporates LED illumination for clear visibility. This E-Stop push-button is enclosed in a polycarbonate housing with a 40mm mushroom head and is equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. The housing is yellow, and the actuator is red, designed for easy identification. It includes 2NC contacts for safety functions, operates on a 24Vdc supply, and can be mounted on a square base using 4 screws. The device is rated for operation in ambient air temperatures ranging from -25°C to +60°C and offers an IP65 degree of protection against dust and water ingress. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.

Related documents SSA-EB1PLXR-02ED1Q5A Specs

SSA-EB1PLXR-02ED1Q5A 165999.pdf
