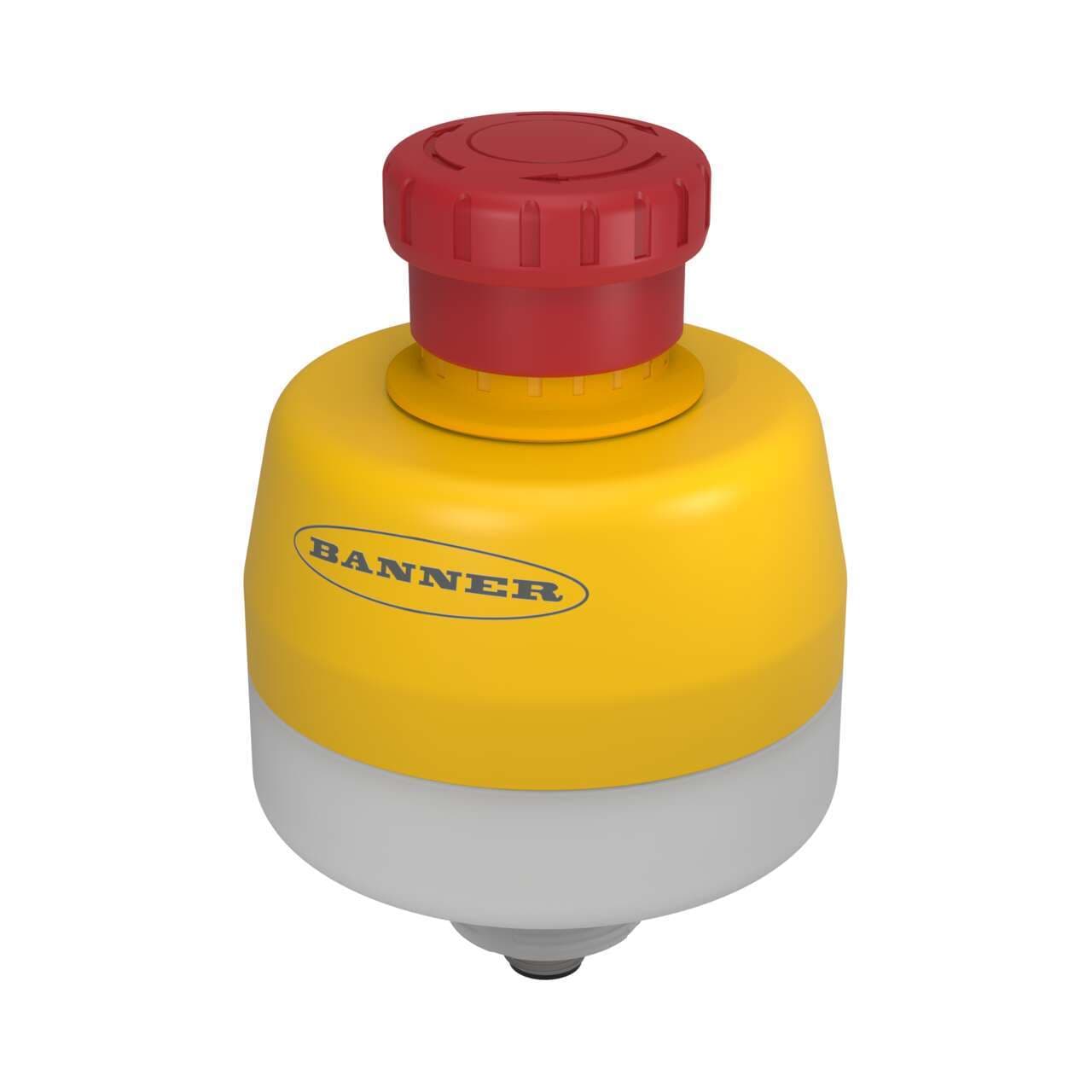

SSA-EB1PLXR-02ECQ5B Banner Emergency Stop Push Buttons

Name: SSA-EB1PLXR-02ECQ5B
Brand: Banner
Price: 236 USD
Availability: BackOrder

SSA-EB1PLXR-02ECQ5B on Powermatic Associates

Part#:SSA-EB1PLXR-02ECQ5B

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Alt. Part#:26263

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Red-Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLXR-02ECQ5B Banner price in the box on the right side or send a quick quote.

Product Details

Weight
299.37072 g
Country Of Origin
JP
Button Diameter (mm)
40
Actuator/Button Material
Thermoplastic
Max Operating Temperature ( °C)
55
Min Operating Temperature ( °C)
-25
Dimensions (HxWxD mm )
120 x 80
Contact Rating
2 A @ 24 V dc
Mounting Thread/Style
30 mm
Feature: Lockable
No
Contact Quantity
2 NC
In-Series Diagnostics
No
Actuation
Twist/Pull-to-Release
Feature: Illuminated
Yes
Connection Type
M12 (Euro)
Housing Style
Base
Device Type
Push Button
Illumination Type
Base
IP Rating
IP65
Button Shroud
No

Armed Color (Solid)

OFF

Primary Housing Material

Polycarbonate

Actuated Color

Red - Flash

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLXR-02ECQ5B Description

Banner Engineering SSA-EB1PLXR-02ECQ5B is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a flashing red LED illumination upon activation and a yellow polycarbonate housing with a 40mm red mushroom head actuator. This safety BUS node compatible device supports CH1 (pins 1 and 4) and CH2 (pins 2 and 5) with a pre-equipped 5-pin M12 Euro-style quick disconnect (QD) connector. It operates with 2NC contacts at a supply voltage of 24Vdc and offers a push-to-stop and stay-put (maintained/latched) twist-to-release operating mode. The SSA-EB1PLXR-02ECQ5B is designed for surface or base mounting with an M30 thread and can operate within an ambient air temperature range of -25°C to +55°C. It is rated for IP65 and IP67 degrees of protection, ensuring its suitability for various industrial environments.
