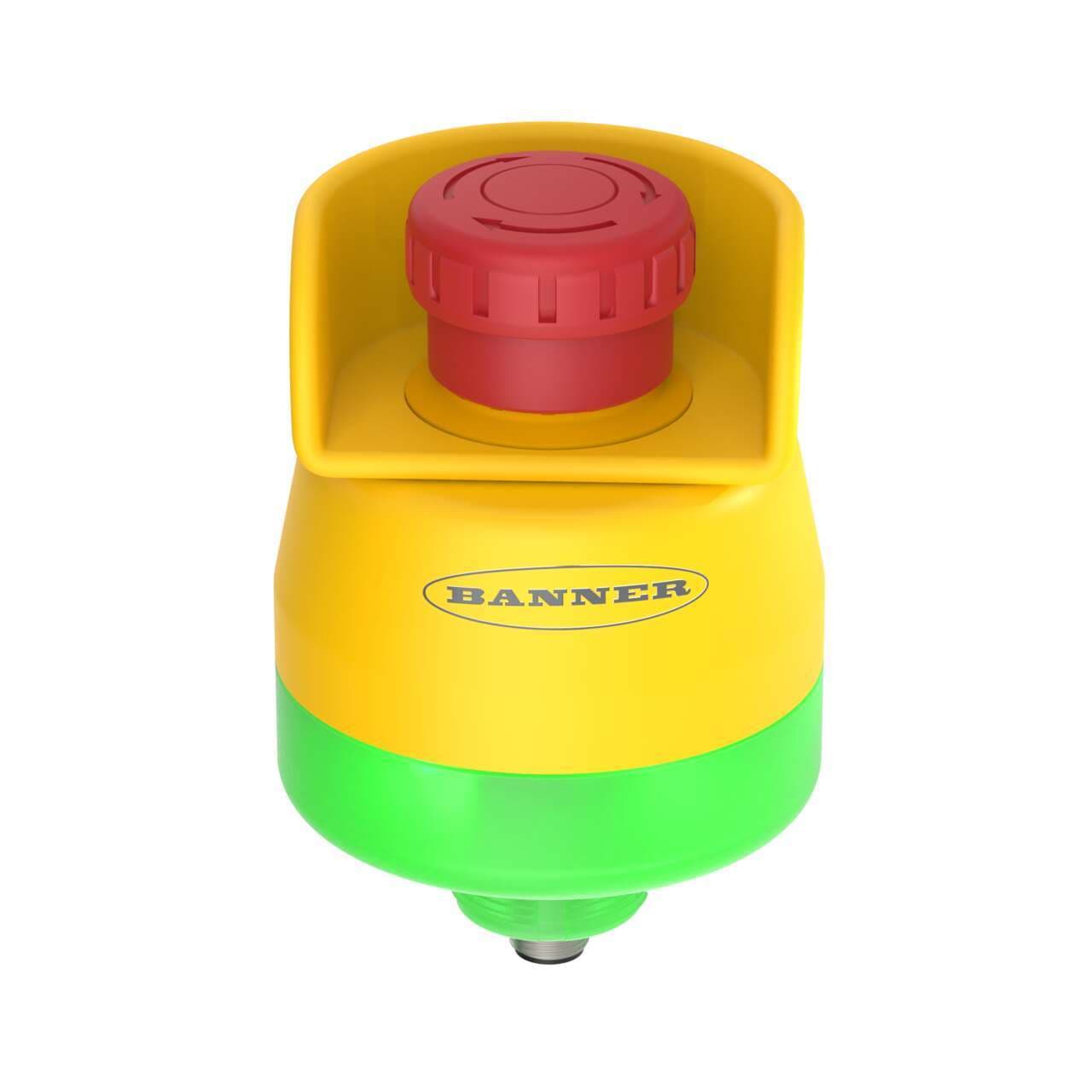

SSA-EB1PLGRS1-0DECQ8 Banner Emergency Stop Push Buttons

SSA-EB1PLGRS1-0DECQ8 on Powermatic Associates
Banner

Part#:SSA-EB1PLGRS1-0DECQ8

Manufacturer:Banner

Alt. Part#:811873

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button; Illuminated Color: Green/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; ESC-1-YW Button Shroud Installed

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGRS1-0DECQ8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    430.9124 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    50
  • Min Operating Temperature ( °C)
    -25
  • Actuator/Button Material
    Thermoplastic
  • Contact Rating
    24 V dc @ 0.1 A each
  • Dimensions (HxWxD mm )
    120 x 80
  • Actuation
    Twist-to-Release
  • Mounting Thread/Style
    30 mm
  • Device Type
    Push Button
  • Armed Color (Solid)
    Green
  • Actuated Color
    Red - Flash
  • Connection Type
    M12 (Euro)
  • IP Rating
    IP65
  • Button Diameter (mm)
    40
  • Feature: Lockable
    No
  • Contact Quantity
    2 NC OSSD
  • Primary Housing Material
    Polycarbonate
  • Feature: Illuminated
    Yes
  • Illumination Type
    Base
  • Housing Style
    Base
  • In-Series Diagnostics
    Yes
  • Button Shroud
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGRS1-0DECQ8 Description

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button, Illuminated Color: Green/Red Flashing, 2 N.C. OSSD Safety Contacts, IP65, 8 Pin Euro-style Quick-Disconnect Connector, ESC-1-YW Button Shroud Installed

Related documents SSA-EB1PLGRS1-0DECQ8 Specs

SSA-EB1PLGRS1-0DECQ8 215157.pdf
