SSA-EB1PLGR-12ED1Q8 Banner Emergency Stop Push Buttons

SSA-EB1PLGR-12ED1Q8 on Powermatic Associates
Banner

Part#:SSA-EB1PLGR-12ED1Q8

Manufacturer:Banner

Alt. Part#:29991

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-12ED1Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    421.84056 g
  • Country Of Origin
    JP
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Contact Rating
    2 A @ 24 V dc
  • Stop Signal Color ( Solid)
    Red
  • Min Operating Temperature ( °C)
    -25
  • Contact Quantity
    2 NC, 1 NO
  • Mounting Thread/Style
    Flat
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • Primary Housing Material
    Polycarbonate
  • IP Rating
    IP65
  • Device Type
    Push Button
  • In-Series Diagnostics
    No
  • Illumination Type
    Base
  • Button Shroud
    No
  • Actuated Color
    Red - Flash
  • Connection Type
    M12 (Euro)
  • Housing Style
    Base
  • Armed Color (Solid)
    Green

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-12ED1Q8 Description

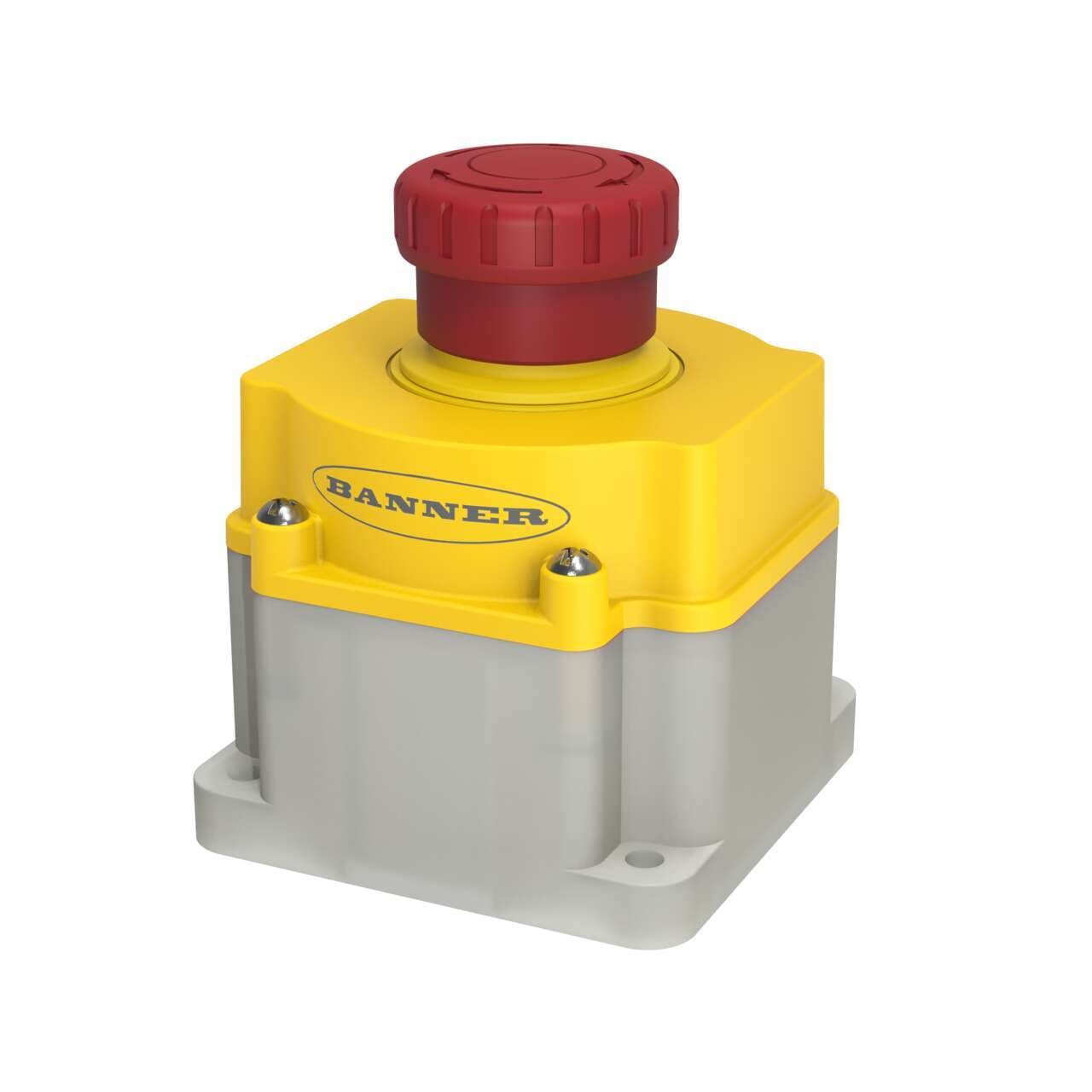

Banner Engineering SSA-EB1PLGR-12ED1Q8 is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base for clear status indication. This push-button is constructed with a polycarbonate housing and has a 40mm mushroom head for easy activation. It comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow, and the actuator is red, designed for high visibility. It includes 1NO+2NC contacts for connectivity, operates with a 24Vdc supply voltage, and can be mounted on a square base using 4 screws. The SSA-EB1PLGR-12ED1Q8 is designed to operate in ambient air temperatures ranging from -25°C to +60°C and offers an IP65 degree of protection against dust and water ingress. Its operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts for versatile application use.

Related documents SSA-EB1PLGR-12ED1Q8 Specs

SSA-EB1PLGR-12ED1Q8 165998.pdf
