SSA-EB1PLGR-12ED1 Banner Emergency Stop Push Buttons

SSA-EB1PLGR-12ED1 on Powermatic Associates
Banner

Part#:SSA-EB1PLGR-12ED1

Manufacturer:Banner

Alt. Part#:87465

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. Aux. Contacts; Terminal Strip

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-12ED1 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    408.2328 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Min Operating Temperature ( °C)
    -25
  • Contact Rating
    2 A @ 24 V dc
  • Feature: Lockable
    No
  • Mounting Thread/Style
    Flat
  • Contact Quantity
    2 NC, 1 NO
  • In-Series Diagnostics
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • Actuated Color
    Red - Flash
  • Device Type
    Push Button
  • Armed Color (Solid)
    Green
  • IP Rating
    IP65
  • Button Shroud
    No
  • Illumination Type
    Base
  • Housing Style
    Base
  • Connection Type
    Terminal Strip
  • Primary Housing Material
    Polycarbonate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-12ED1 Description

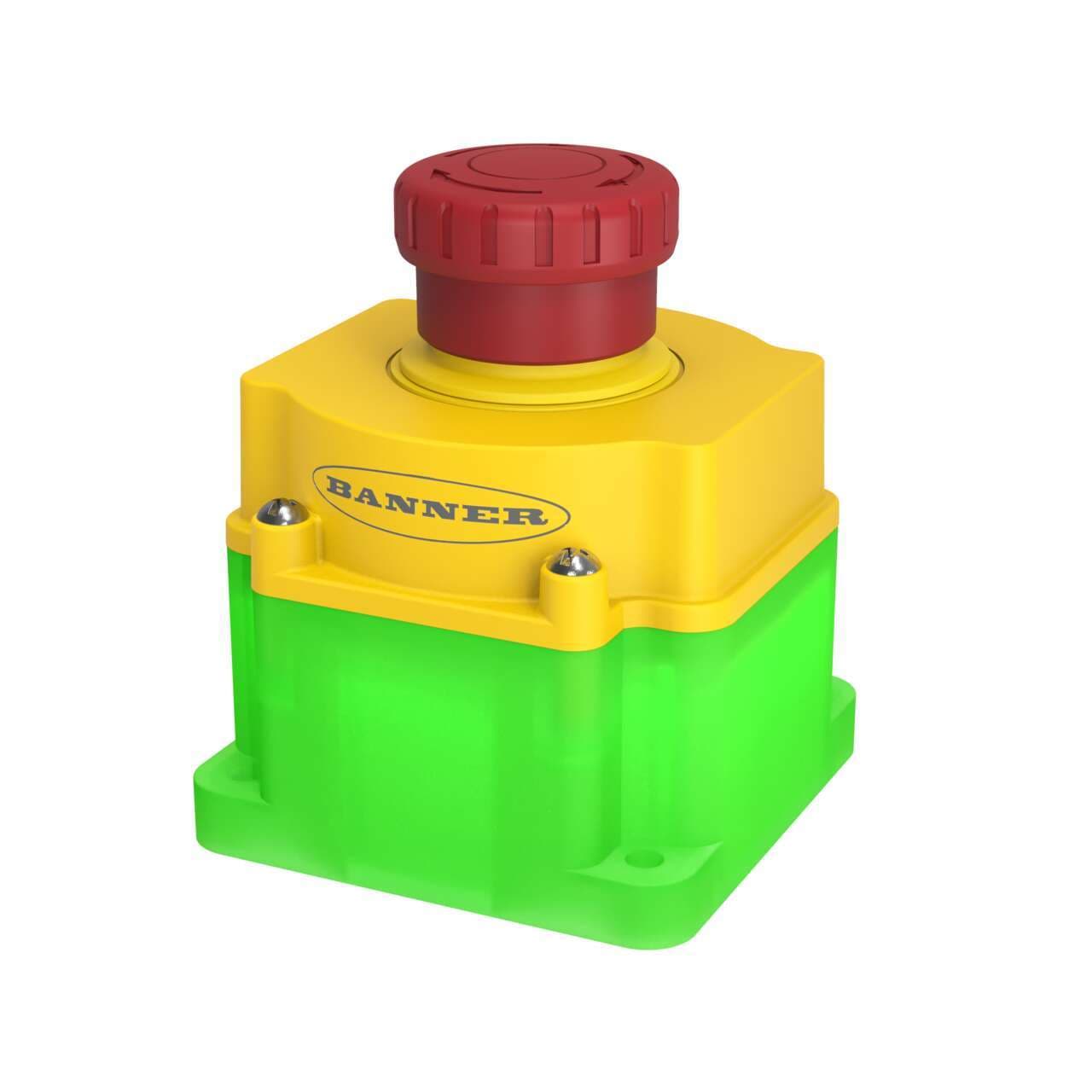

Banner Engineering SSA-EB1PLGR-12ED1 is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base for clear status indication. It is constructed with a polycarbonate housing and has a 40mm mushroom head for easy activation. The connection is facilitated through a screw-clamp terminal connection. This push-button comes in a yellow housing with a red actuator, incorporating 1NO+2NC contacts for circuit control. It operates on a 24Vdc supply voltage and is designed for mounting on a square base with 4 screws. The SSA-EB1PLGR-12ED1 is designed to operate within an ambient air temperature range of -25°C to +60°C and offers a degree of protection rated at IP65. Its operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. Additionally, it includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts for versatile application in emergency stop scenarios.

Related documents SSA-EB1PLGR-12ED1 Specs

SSA-EB1PLGR-12ED1 165998.pdf
