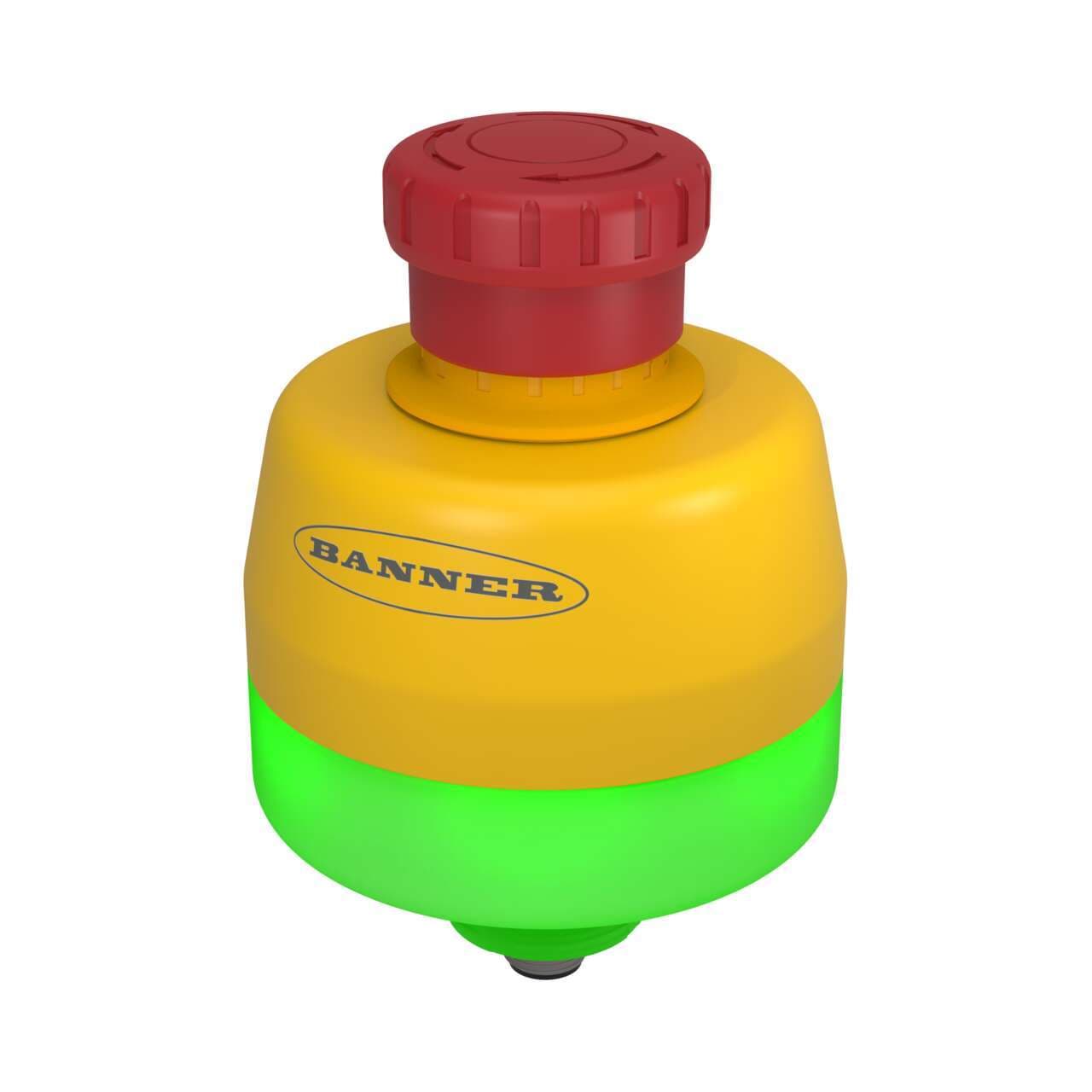

SSA-EB1PLGR-12ECQ8 Banner Emergency Stop Push Buttons

Name: SSA-EB1PLGR-12ECQ8
Brand: Banner
Price: 251 USD
Availability: BackOrder

SSA-EB1PLGR-12ECQ8 on Powermatic Associates

Part#:SSA-EB1PLGR-12ECQ8

Manufacturer:Banner

Alt. Part#:26628

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Green and Red Flash/Solid Illuminated Base; 40 mm Actuator; IP65; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-12ECQ8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
299.37072 g
Country Of Origin
JP
Mounting Thread/Style
30 mm
Dimensions (HxWxD mm )
120 x 80
Button Diameter (mm)
40
Max Operating Temperature ( °C)
55
Actuator/Button Material
Thermoplastic
Stop Signal Color ( Solid)
Red
Min Operating Temperature ( °C)
-25
Contact Rating
2 A @ 30 V dc
Feature: Illuminated
Yes
Contact Quantity
2 NC, 1 NO
Feature: Lockable
No
Actuation
Twist/Pull-to-Release
Connection Type
M12 (Euro)
In-Series Diagnostics
No
IP Rating
IP65
Housing Style
Base
Primary Housing Material
Polycarbonate
Device Type
Push Button

Actuated Color

Red - Flash

Illumination Type

Base

Button Shroud

Armed Color (Solid)

Green

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-12ECQ8 Description

Banner Engineering SSA-EB1PLGR-12ECQ8 is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base for hygienic environments, compliant with ECOLAB standards. This push-button is designed with a polycarbonate (PC) base and a 40mm mushroom head for easy activation. It comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow, with a red actuator, ensuring high visibility. The SSA-EB1PLGR-12ECQ8 offers 1NO+2NC contact configuration and operates within a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It supports surface or base mounting with an M30 thread and can operate in ambient air temperatures ranging from -25°C to +60°C. This push-button is rated for IP65 and IP67, indicating a high degree of protection against dust and water. Its operating mode is push-to-stop, stay-put (maintained/latched), and twist-to-release, with 1 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for versatile application in emergency stop scenarios.
