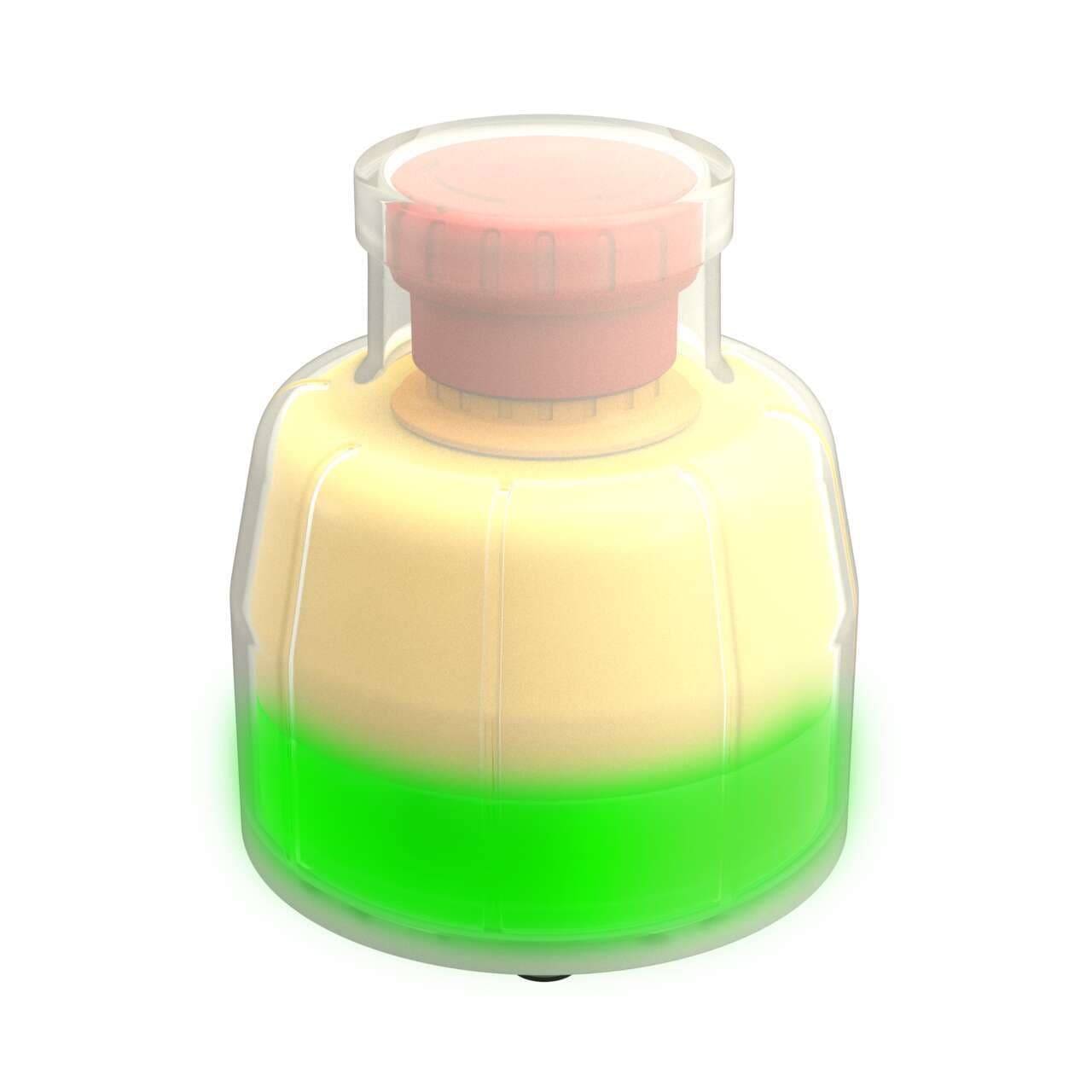

SSA-EB1PLGR-12ECQ8-WC Banner Emergency Stop Push Buttons

Name: SSA-EB1PLGR-12ECQ8-WC
Brand: Banner

Banner SSA-EB1PLGR-12ECQ8-WC SSA-EB1 30 mm Mount Emergency Stop Push Button; Green and Red Flash/Solid Illuminated Base; 40 mm Actuator; IP69K; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD; Includes SSA-EB1P-ECWC Washdown Cover

Part#:SSA-EB1PLGR-12ECQ8-WC

Manufacturer:Banner

Alt. Part#:800035

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Green and Red Flash/Solid Illuminated Base; 40 mm Actuator; IP69K; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD; Includes SSA-EB1P-ECWC Washdown Cover

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-12ECQ8-WC Banner price in the box on the right side or send a quick quote.

Product Details

Weight
362.8736 g
Country Of Origin
JP
Min Operating Temperature ( °C)
-25
Max Operating Temperature ( °C)
55
Button Diameter (mm)
40
Actuator/Button Material
Thermoplastic
Stop Signal Color ( Solid)
Red
Contact Quantity
2 NC, 1 NO
Contact Rating
2 A @ 24 V dc
Dimensions (HxWxD mm )
120 x 86
Mounting Thread/Style
30 mm
Feature: Lockable
No
Feature: Illuminated
Yes
Actuation
Twist/Pull-to-Release
Feature: Washdown Rated
Yes
In-Series Diagnostics
No
IP Rating
IP65, IP67, IP69
Device Type
Push Button
Primary Housing Material
Polycarbonate
Connection Type
M12 (Euro)

Armed Color (Solid)

Green

Illumination Type

Base

Button Shroud

Actuated Color

Red - Flash

Housing Style

Base

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-12ECQ8-WC Description

Banner Engineering SSA-EB1PLGR-12ECQ8-WC is an enclosed illuminated emergency STOP push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base with a washdown cover and LED illumination. This push-button is designed with a polycarbonate housing and has a 40mm mushroom head. It comes pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The housing is yellow, and the actuator is red, providing clear visibility. It includes 1NO+2NC contacts for connectivity and operates with a 24Vdc supply voltage. The SSA-EB1PLGR-12ECQ8-WC can be mounted via surface or base with an M30 thread and is designed to operate in ambient air temperatures ranging from -25°C to +55°C. It offers a high degree of protection with IP65, IP67, and IP69K ratings, ensuring durability in various environments. The operating mode is push-to-stop and stay-put (maintained / latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for enhanced functionality.
