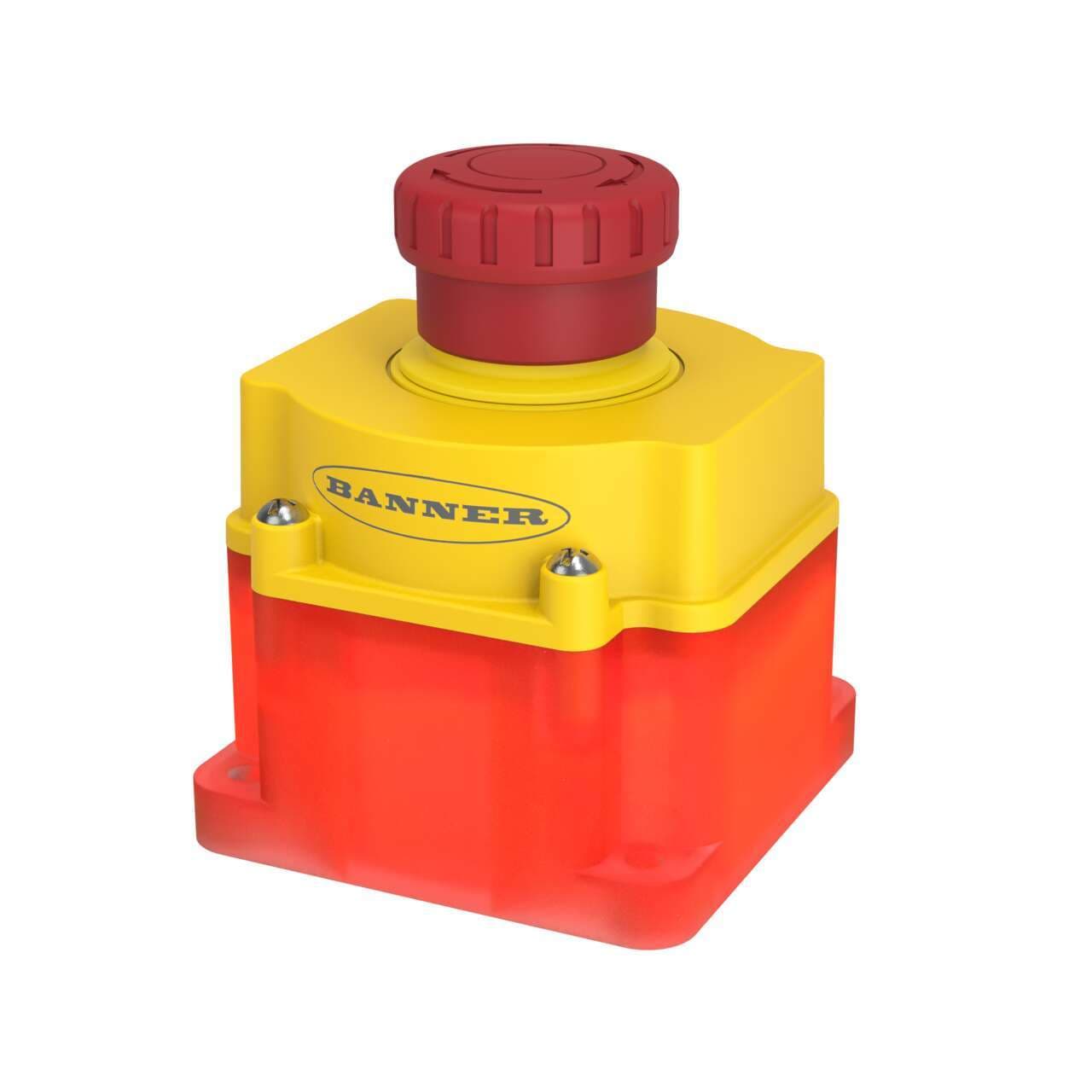

SSA-EB1PLGR-0DED1Q8R Banner Emergency Stop Push Buttons

Name: SSA-EB1PLGR-0DED1Q8R
Brand: Banner
Price: 262 USD
Availability: BackOrder

SSA-EB1PLGR-0DED1Q8R on Powermatic Associates

Part#:SSA-EB1PLGR-0DED1Q8R

Alt. Part#:809272

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop with ISD: Flush Mount 40 mm Push Button; Illuminated Color: Green/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; Local Reset Input

Product Details

Weight
421.84056 g
Country Of Origin
JP
Max Operating Temperature ( °C)
50
Actuator/Button Material
Thermoplastic
Button Diameter (mm)
40
Min Operating Temperature ( °C)
-25
Dimensions (HxWxD mm )
103 x 110 x 81
Contact Rating
24 V dc @ 0.1 A each
Mounting Thread/Style
Flat
Contact Quantity
2 NC OSSD
Feature: Lockable
No
Feature: Illuminated
Yes
Actuation
Twist-to-Release
In-Series Diagnostics
Yes
Illumination Type
Base
Primary Housing Material
Polycarbonate
Device Type
Push Button
IP Rating
IP65
Housing Style
Base
Button Shroud
No

Armed Color (Solid)

Green

Connection Type

M12 (Euro)

Actuated Color

Red - Flash

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PLGR-0DED1Q8R on Powermatic Associates is $262.00. Order now.

About the product

Emergency Stop with ISD: Flush Mount 40 mm Push Button, Illuminated Color: Green/Red Flashing, 2 N.C. OSSD Safety Contacts, IP65, 8 Pin Euro-style Quick-Disconnect Connector, Local Reset Input

SSA-EB1PLGR-0DED1Q8R Related Documents

215157.pdf

This item can ship within 0 day!
