SSA-EB1PLGR-0DECQ8R Banner Emergency Stop Push Buttons

Name: SSA-EB1PLGR-0DECQ8R
Brand: Banner

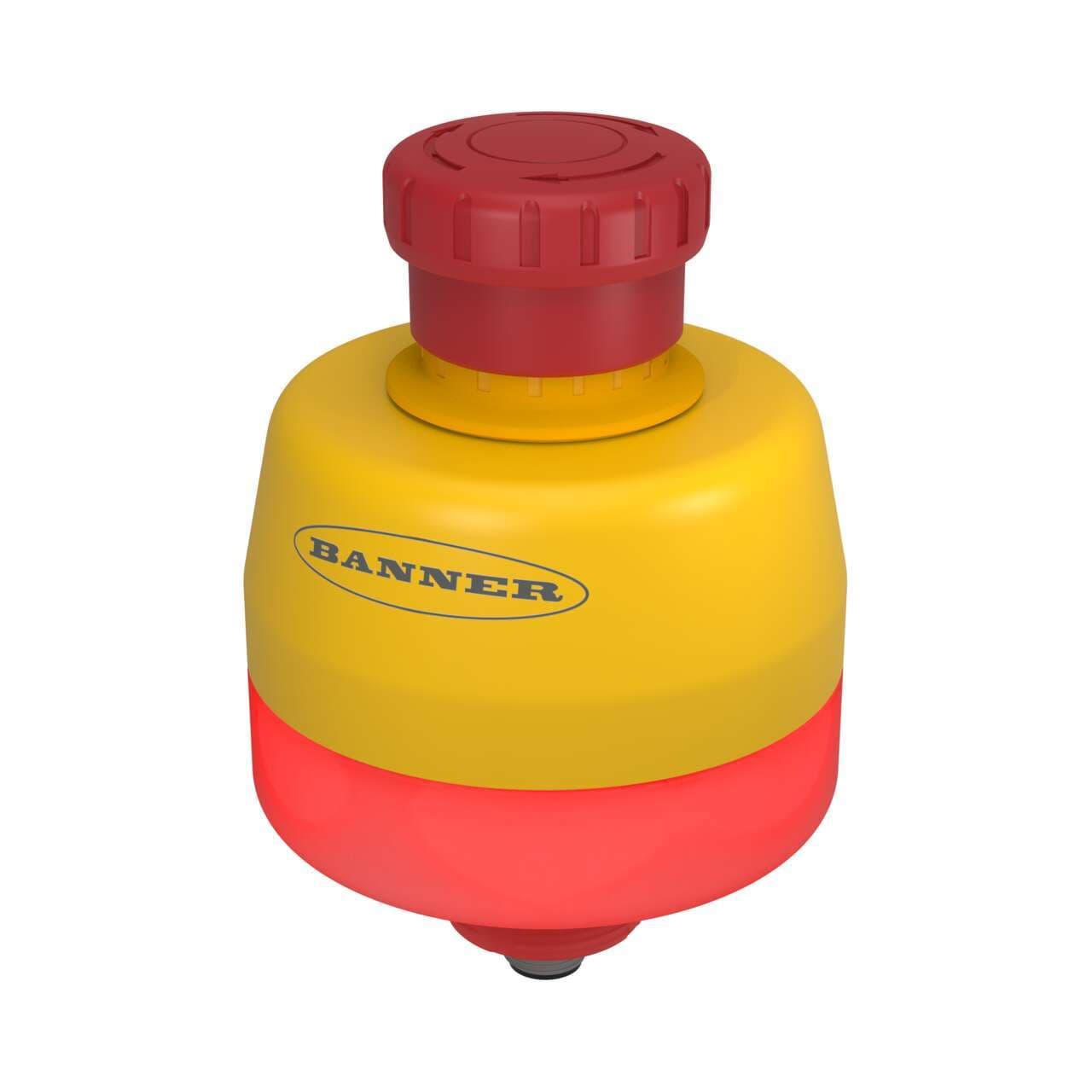

Banner SSA-EB1PLGR-0DECQ8R Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button; Illuminated Color: Green/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; Local Reset Input

Part#:SSA-EB1PLGR-0DECQ8R

Manufacturer:Banner

Alt. Part#:809269

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button; Illuminated Color: Green/Red Flashing; 2 N.C. OSSD Safety Contacts, IP65; 8-pin M12 QD; Local Reset Input

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-0DECQ8R Banner price in the box on the right side or send a quick quote.

Product Details

Weight
299.37072 g
Country Of Origin
JP
Max Operating Temperature ( °C)
50
Button Diameter (mm)
40
Actuator/Button Material
Thermoplastic
Min Operating Temperature ( °C)
-25
Contact Rating
24 V dc @ 0.1 A each
Mounting Thread/Style
30 mm
Feature: Lockable
No
Actuation
Twist-to-Release
Armed Color (Solid)
Green
Dimensions (HxWxD mm )
120 x 80
Feature: Illuminated
Yes
In-Series Diagnostics
Yes
Contact Quantity
2 NC OSSD
Device Type
Push Button
Primary Housing Material
Polycarbonate
Illumination Type
Base
Housing Style
Base
IP Rating
IP65

Button Shroud

Actuated Color

Red - Flash

Connection Type

M12 (Euro)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-0DECQ8R Description

Emergency Stop with ISD: 30 mm Mount with 40 mm Push Button, Illuminated Color: Green/Red Flashing, 2 N.C. OSSD Safety Contacts, IP65, 8 Pin Euro-style Quick-Disconnect Connector, Local Reset Input
