SSA-EB1PLGR-02ED1Q5A Banner Emergency Stop Push Buttons

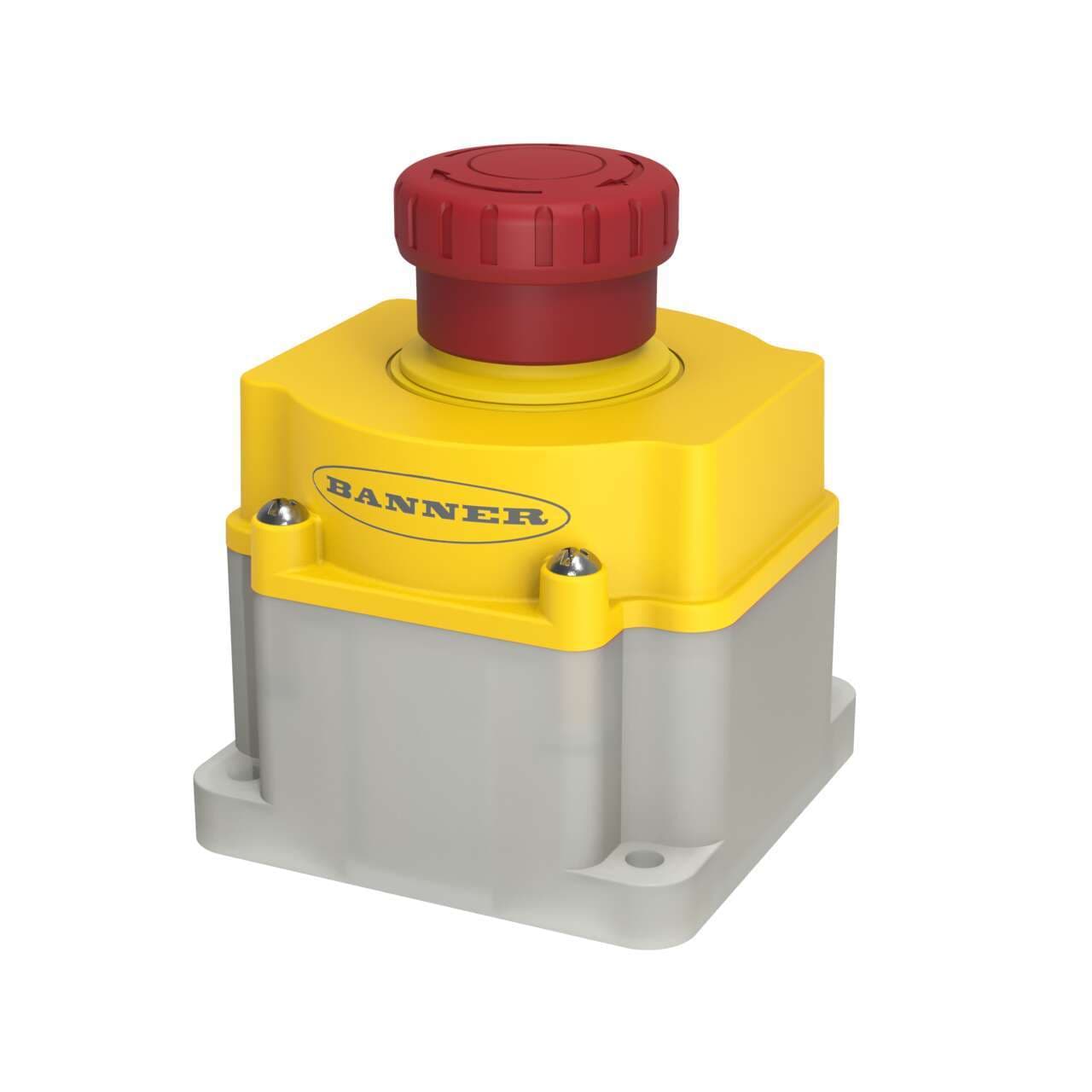

Banner SSA-EB1PLGR-02ED1Q5A Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Flashing; 2 N.C. Safety Contacts; AB ArmorBlock; 5-pin M12 QD
Banner

Part#:SSA-EB1PLGR-02ED1Q5A

Manufacturer:Banner

Alt. Part#:803183

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Flashing; 2 N.C. Safety Contacts; AB ArmorBlock; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-02ED1Q5A Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    JP
  • Stop Signal Color ( Solid)
    Red
  • Max Operating Temperature ( °C)
    55
  • Mounting Thread/Style
    Flat
  • Illumination Type
    Base
  • Actuator/Button Material
    Thermoplastic
  • Min Operating Temperature ( °C)
    -25
  • Button Diameter (mm)
    40
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Contact Quantity
    2 NC
  • Contact Rating
    2 A @ 24 V dc
  • Actuated Color
    Red - Flash
  • Housing Style
    Base
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • In-Series Diagnostics
    No
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • Button Shroud
    No
  • Connection Type
    M12 (Euro)
  • IP Rating
    IP65
  • Armed Color (Solid)
    Green

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-02ED1Q5A Description

Banner Engineering SSA-EB1PLGR-02ED1Q5A is an enclosed illuminated emergency STOP push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base for safety BUS node compatibility (CH1; pins 1; pins 2 / CH2; pins 4; pins 5) with LED illumination. This push-button is constructed with a polycarbonate housing and has a 40mm mushroom head diameter. It is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The housing is yellow, and the actuator is red, designed for clear visibility. It includes 2NC contacts for connectivity, operates on a 24Vdc supply voltage, and can be mounted on a square base using 4 screws. The SSA-EB1PLGR-02ED1Q5A is designed to operate in ambient air temperatures ranging from -25°C to +60°C, offers a degree of protection of IP65, and features a push-to-stop stay-put (maintained / latched) twist-to-release operating mode. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.

Related documents SSA-EB1PLGR-02ED1Q5A Specs

SSA-EB1PLGR-02ED1Q5A 165999.pdf
