SSA-EB1PLGR-02ECQ5B Banner Emergency Stop Push Buttons

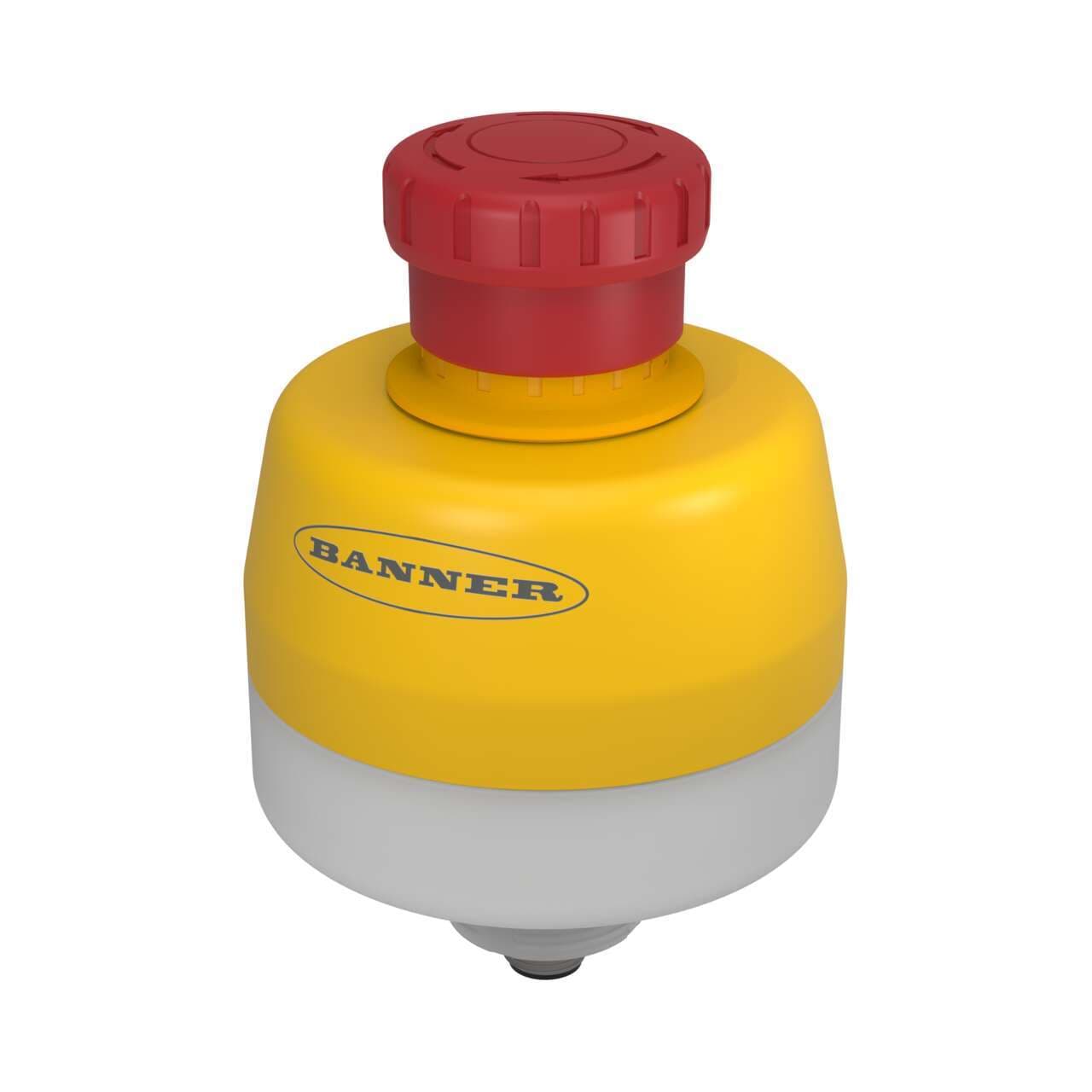

Banner SSA-EB1PLGR-02ECQ5B SSA-EB1 30 mm Mount Emergency Stop Push Button; Green, Red Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
Banner

Part#:SSA-EB1PLGR-02ECQ5B

Manufacturer:Banner

Alt. Part#:805523

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Green, Red Flash Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PLGR-02ECQ5B Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    263.08336 g
  • Country Of Origin
    JP
  • Actuator/Button Material
    Thermoplastic
  • Mounting Thread/Style
    30 mm
  • Device Type
    Push Button
  • Max Operating Temperature ( °C)
    55
  • Stop Signal Color ( Solid)
    Red
  • Button Diameter (mm)
    40
  • Min Operating Temperature ( °C)
    -25
  • Contact Quantity
    2 NC
  • Contact Rating
    2 A @ 24 V dc
  • Dimensions (HxWxD mm )
    120 x 80
  • In-Series Diagnostics
    No
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • Illumination Type
    Base
  • Housing Style
    Base
  • Primary Housing Material
    Polycarbonate
  • IP Rating
    IP65
  • Button Shroud
    No
  • Armed Color (Solid)
    Green
  • Connection Type
    M12 (Euro)
  • Actuated Color
    Red - Flash

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PLGR-02ECQ5B Description

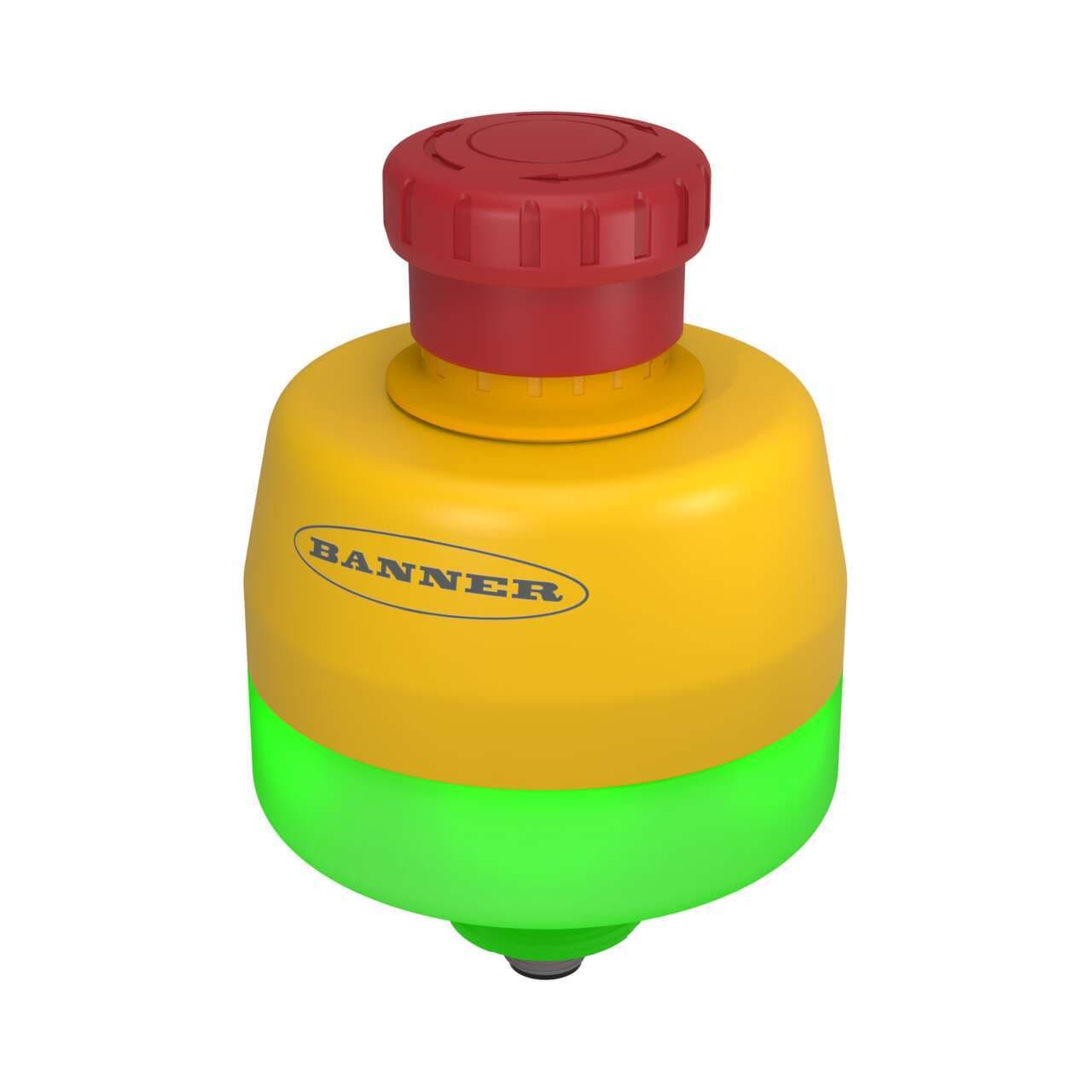

Banner Engineering SSA-EB1PLGR-02ECQ5B is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base for safety BUS node compatibility (CH1; pins 1; pins 4 / CH2; pins 2; pins 5) with LED illumination. This push-button is constructed with a polycarbonate housing and has a 40mm mushroom head. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is yellow, and the actuator is red. It includes 2NC contacts for its operation, requires a 24Vdc supply voltage, and can be mounted via surface or base with an M30 thread. The degree of protection offered is IP65, ensuring protection against dust ingress and low-pressure water jets. The operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.

Related documents SSA-EB1PLGR-02ECQ5B Specs

SSA-EB1PLGR-02ECQ5B 164714.pdf
