SSA-EB1PL2-12EB1Q12K50 Banner Sensor Accessories
Part#:SSA-EB1PL2-12EB1Q12K50
Alt. Part#:806658
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description

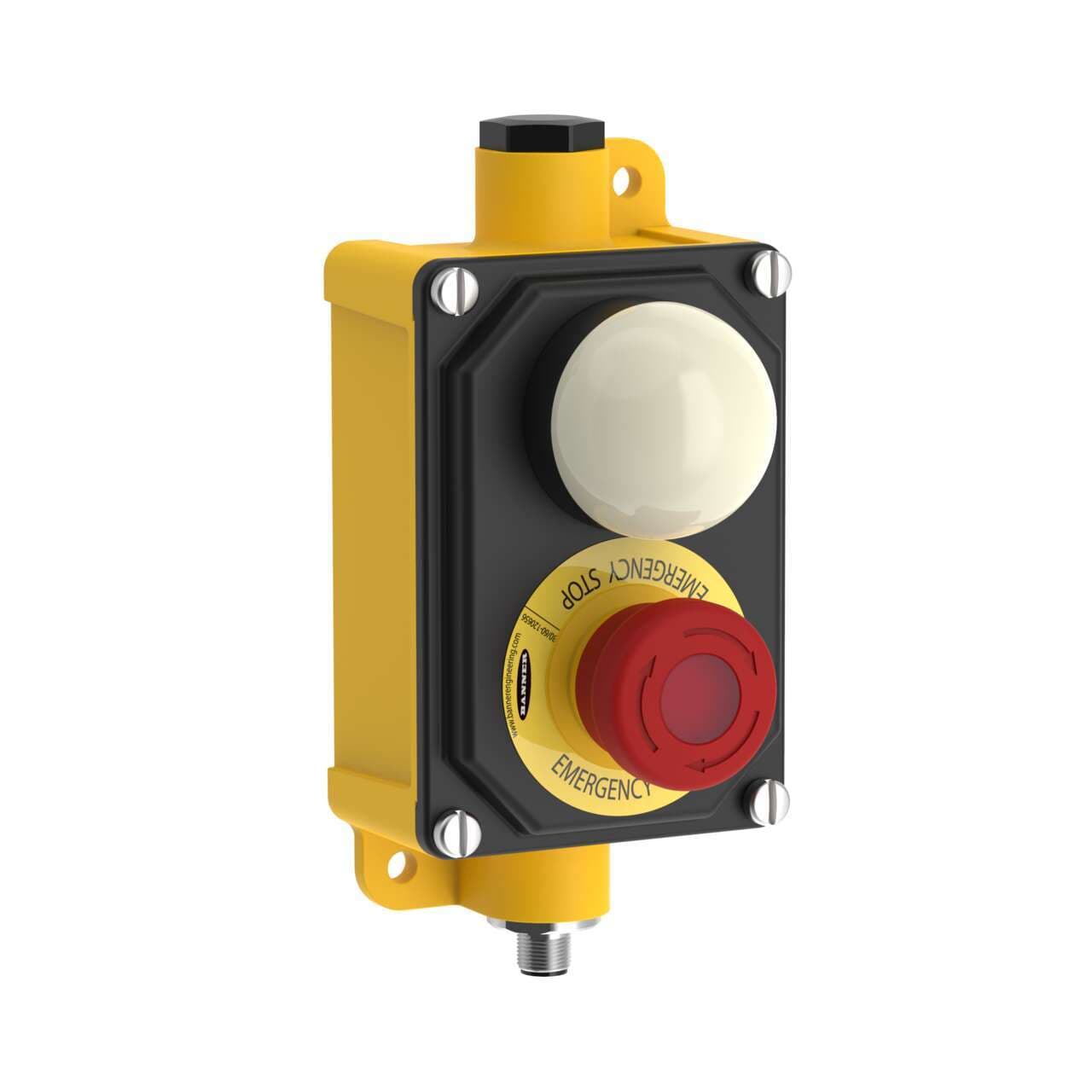

Illuminated E-Stop Button (Push On): 2 NC/1 NO; E-Stop Legend; 3 Color K50 Touch, BENC Enclosure; 12-pin M12 Integral QD
Product Details
- Weight 635.0288 g
- Country Of Origin JP
- Max Operating Temperature ( °C) 50
- Button Diameter (mm) 40
- Feature: Illuminated Yes
- Contact Quantity 2 NC, 1 NO
- Actuator/Button Material Thermoplastic
- Mounting Thread/Style Flat
- Min Operating Temperature ( °C) -25
- Feature: Lockable No
- Contact Rating 2 A @ 30 V dc
- In-Series Diagnostics No
- Actuation Twist/Pull-to-Release
- Housing Style Flat
- Primary Housing Material Polycarbonate
- Button Shroud No
- IP Rating IP65
- Device Type Push Button
- Illumination Type Button
- Armed Color (Solid) OFF
- Actuated Color Red
- Connection Type M12 (Euro)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL2-12EB1Q12K50 on Powermatic Associates is $688.00. Order now.
About the product
Illuminated E-Stop Button (Push On); 2 NC/1 NO, E-Stop Legend, 3 Color K50 Touch, BENC Enclosure, 12-pin Euro QD
